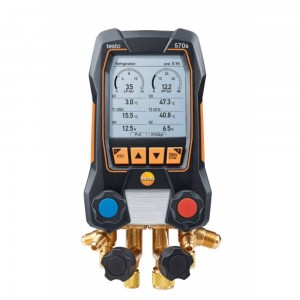

Testo 570s Smart Manifold Only

The testo 570s digital manifold with Bluetooth and 4-way valve block is the optimal solution for long-term measurements on refrigeration and air conditioning systems as well as heat pumps. Intelligent error analysis in the testo Smart App allows anomalies to be detected quickly and reliably.
Digital 4-way manifold with datalogging function
IP54 protection for outdoor use
Long-term measurement with intelligent error detection in the testo Smart App
Long service life of up to 360 hours thanks to rechargeable (USB-C) and non-rechargeable batteries
Technical Data
Temperature
Measuring range -50 to +150 °C
Accuracy ±0.5 °C
Resolution 0.1 °C
Probe connection 2 x Plug-in (NTC)
Pressure measurement
Measuring range -1 to 60 bar
Accuracy ±0.2 % fs
Resolution 0.01 bar
Probe connection 3 x 7/16 – UNF + 1 x 5/8 – UNF
Overload rel. (low pressure) 65 bar
Overload rel. (high pressure) 65 bar
General technical data
Weight 1 kg
Dimensions 229 x 112 x 71 mm
Operating temperature -20 to +50 °C
Protection class IP54
System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Auto-off instrument 10 min
Battery life With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination
Battery type Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
Radio range 150 m
Storage temperature -20 to +60 °C

Manufacturers Code: 0564 5701 02
