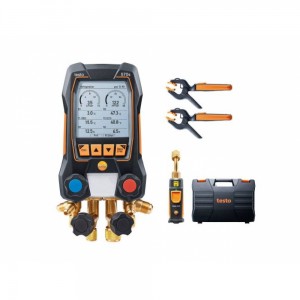

Testo 570s Smart Vacuum Kit

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 570s digital manifold with Bluetooth and 4-way valve block together with the wireless temperature and vacuum probes is ideal for long-term and standard measurements.The intelligent error analysis in the testo Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the worlds longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.
Digital 4-way manifold with datalogging function
IP54 protection for outdoor use
Long-term measurement with intelligent error detection in the testo Smart App
Long service life of up to 360 hours thanks to rechargeable (USB-C) and non-rechargeable batteries

Technical Data
Temperature
Measuring range -50 to +150 °C
Accuracy ±0.5 °C
Resolution 0.1 °C
Probe connection 2 x Plug-in (NTC)
Pressure measurement
Measuring range -1 to 60 bar
Accuracy ±0.2 % fs
Resolution 0.01 bar
Probe connection 3 x 7/16 – UNF + 1 x 5/8 – UNF
Overload rel. (low pressure) 65 bar
Overload rel. (high pressure) 65 bar
General technical data
Weight 1 kg
Dimensions 229 x 112 x 71 mm
Operating temperature -20 to +50 °C
Protection class IP54
System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Auto-off instrument 10 min
Battery life With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination
Battery type Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
Radio range 150 m
Storage temperature -20 to +60 °C

Manufacturers Code: 0564 5702 02
