Ref: 190402

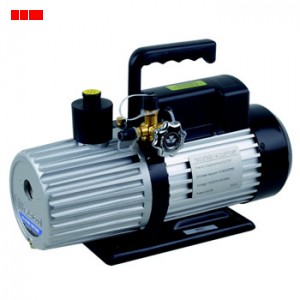

Mastercool 90068-2V-220B 6.6 cfm Dual Voltage


Login to view prices.

£303.86 (Ex VAT)

A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.
KEY FEATURES:
- Stronger Motor
- Gas Ballast Valve Helps Prevent Oil Contamination Caused by High Moisture
- Easily Removable Vapor Discharge/Oil Fill Port. Contains Internal Check Valve to Prevent Escape of Liquid Oil
- Large Oil Level Sight Glass with Max/Min Oil Level Indicator
- Easily Accessibleÿ Oil Drain Valve
- Large, Light Weight Reinforced Base for Stable Positioning
- Field Replaceable Cartridge
- Cooling Fins to Keep Temperature Cooler During Extended Motor Operation
- High Volume Fanÿ Provides Cool Airÿ to Motor and Pump
- Manifold Valve Isolates Pump from the System when Testing for Leaks. Includes 3 Inlet Ports, 1/4", 3/8" SAE and 1/2" ACME
SPECIFICATIONS:
- No. of Stages: 2
- Free Air Displacement: 227ÿlit/min / 189 lit/min
- Ultimate Vacuum: 15 Microns
- Pump Motor: 3/4 HP
- Pump Speed: 1440ÿRPM
- Electrical Specs: 220 V / 50/60 Hz
- Power Cord: 220 V Cable (Shuko)
- Shipping Weight: 34ÿlbs (15.43 kg)
- Dimensions in cm: 38ÿx 18ÿx 27
  • Manufacturers Code: 90068-2V-220B
  • Mastercool 90068-2V-220B 6.6 cfm Dual Voltage

    • Height: 270 mm
    • Width: 180 mm
    • Depth: 380 mm
    • Weight: 14.53 kg
    • Voltage: 110 / 240 v v
    • Manufacturers Code: 90068-2V-220B

    Mastercool 90068-2V-220B 6.6 cfm Dual Voltage Downloads

    PDF Brochure

    PDF Instructions
