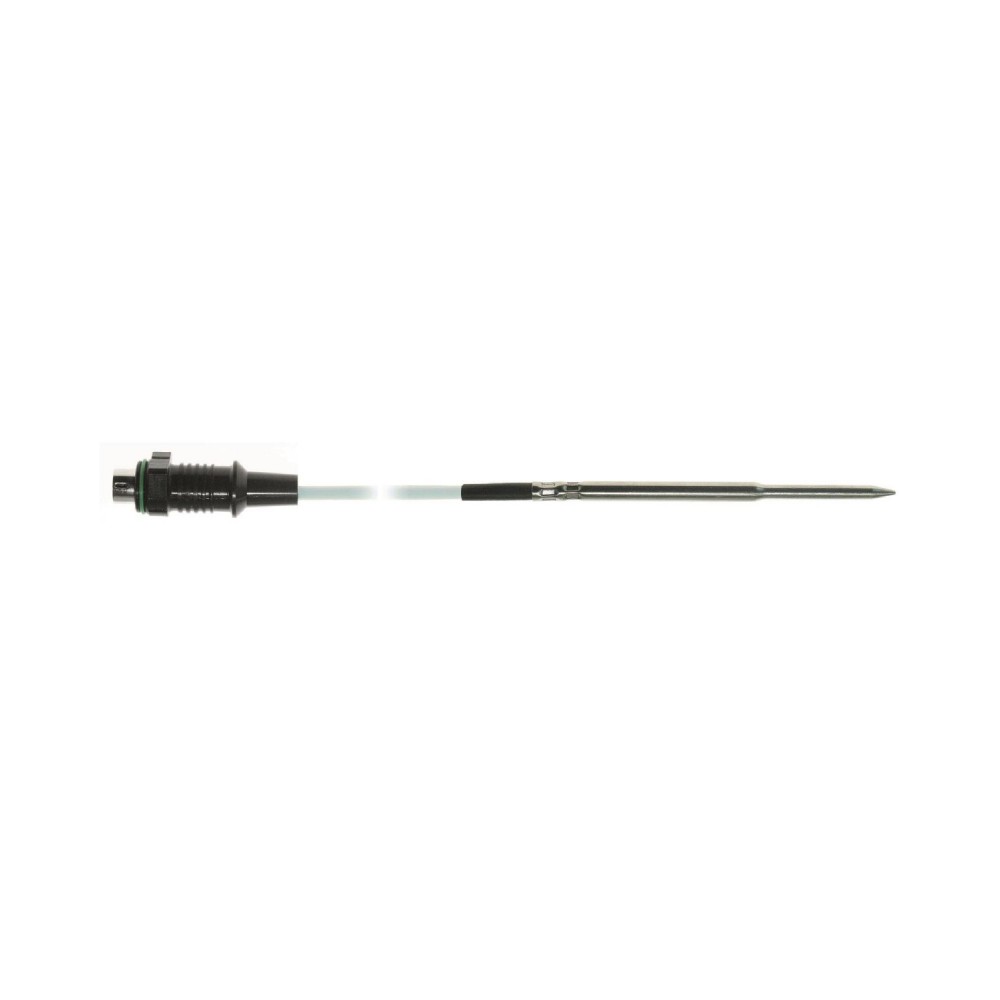

Testo penetration probe NTC with ribbon cable
This temperature probe featuring a penetration tip is suitable for temperature measurements in pastes and semi-solid media and also in liquids and air. Thanks to its NTC sensor element, the probe provides precise temperature measurements with an accuracy of up to ±0.2 °C.
- NTC probe with exceptionally flat cable (2 m long), which can be pushed through narrow openings, e.g. through slits in doors
- Temperature measurement in pastes and semi-solid media and also in liquids and air
- Temperature probe with penetration tip for measurements in pastes and semi-solid materials, liquids and also in air.
- Measuring range: -40 to +125C
This temperature probe featuring a penetration tip is suitable for temperature measurements in pastes and semi-solid media and also in liquids and air. Thanks to its NTC sensor element, the probe provides precise temperature measurements with an accuracy of up to ±0.2 °C. This temperature probe featuring a penetration tip is suitable for temperature measurements in pastes and semi-solid media and also in liquids and air. Thanks to its NTC sensor element, the probe provides precise temperature measurements with an accuracy of up to ±0.2 °C.
The temperature probe features a thin, 2 m long ribbon cable. The ribbon cable can be pushed through narrow openings such as slits in doors or refrigerator seals.
Protection class IP 54 means that the temperature probe is protected against spray water.
This probe`s response time t99 (time it takes for the probe to register 99% of the jump in temperature) of 8 seconds refers to measurements in moving water at +60 °C. This response time is extended when, for example, measurements are taken in still liquid, pastes or air.*
The perfect probe for any application
Don`t see the temperature probe you are looking for? Please contact us directly. We have a large range of standard temperature probes and we also manufacture customized probes specifi
| Brand |
|---|
Specification for: Testo penetration probe NTC with ribbon cable
| Accuracy | 0.5 % of mv (100 to +125 C) 0.2 C (-25 to +80 C) 0.4 C Remaining Range |
| Cable length | 2 m |
| Diameter probe shaft | 5 mm |
| Diameter probe shaft tip | 3.7 mm |
| Dimensions | 2120 mm |
| Fixed cable | yes |
| In Box | 1 x NTC temperature probe 0572 1001. |
| Length probe shaft | 90 mm |
| Length probe shaft tip | 30 mm |
| Measuring range | -40 to +125 C |
| MPN | 0572 1001 |
| Product colour | Black; white |
| Product-/housing material | Thermelt / PUR |
| Protection class | IP54 |
| Range | Solutions Pharma |
| Reaction time | 8 s |
| Type | Saveris 1 |
| Weight | 36 g |
