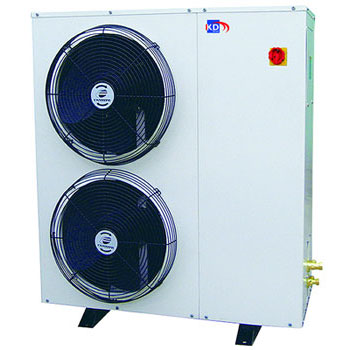

2PAL075M3 KD Scroll Condensing Unit 7.5 hp
Ref: 168404
KD Scroll condensing units are ideally suited for convenience stores, forecourts and cold room applications, particularly for outdoor installation in noise sensitive locations.
- 3 Year Warrany
- Low Noise fully housed Unit
- Copeland Scroll compressor
- Fitted Fan Speed control
- Fitted Hp / Lp, Drier,Sight glass
- Fitted Compressor contactor and overload
- Fitted External Isolator
- Fitted Oil Separator on Low temperature models
- Compressor Type : Scroll
- Supply : 400.3
- Nominal Hp : 7 1/2 hp
- Nominal Duty : 12320 w
- Application : Medium Temp
£3,013.48 + VAT
Ordering is only available to Trade Customers
| Weight | 174 kg |
|---|---|
| Dimensions | 425 × 1285 × 1164 cm |
| Application | |
| Brand | |
| Compressor Type | |
| Nominal Duty | |
| Product Category | |
| Supply/Voltage |
Specification for: 2PAL075M3 KD Scroll Condensing Unit 7.5 hp
| -10°C | 11050 |
| -15°C | 9040 |
| -20°C | 7170 |
| -5°C | 13250 |
| 0°C | 15750 |
| 10°C | 21600 |
| 5°C | 18500 |
| Alternate Part No | KDS350 |
| Application | Medium Temp |
| Channel | Mini |
| Compressor Type | Scroll |
| Depth | 425 mm |
| Discharge Connector | 5/8 |
| Height | 1164 mm |
| Model | 2PAL075M3 |
| No of Fans | 2 |
| Noise level | 40 |
| Noise_Level | 40 dBA |
| Nominal Duty | 12320 w |
| Nominal Hp | 7 1/2 hp |
| Suction Connector | 7/8 |
| Supply | 400.3 |
| Supply/Voltage | Three Phase (400V 50Hz) |
| Weight | 174 Kg |
| Width | 1285 mm |
