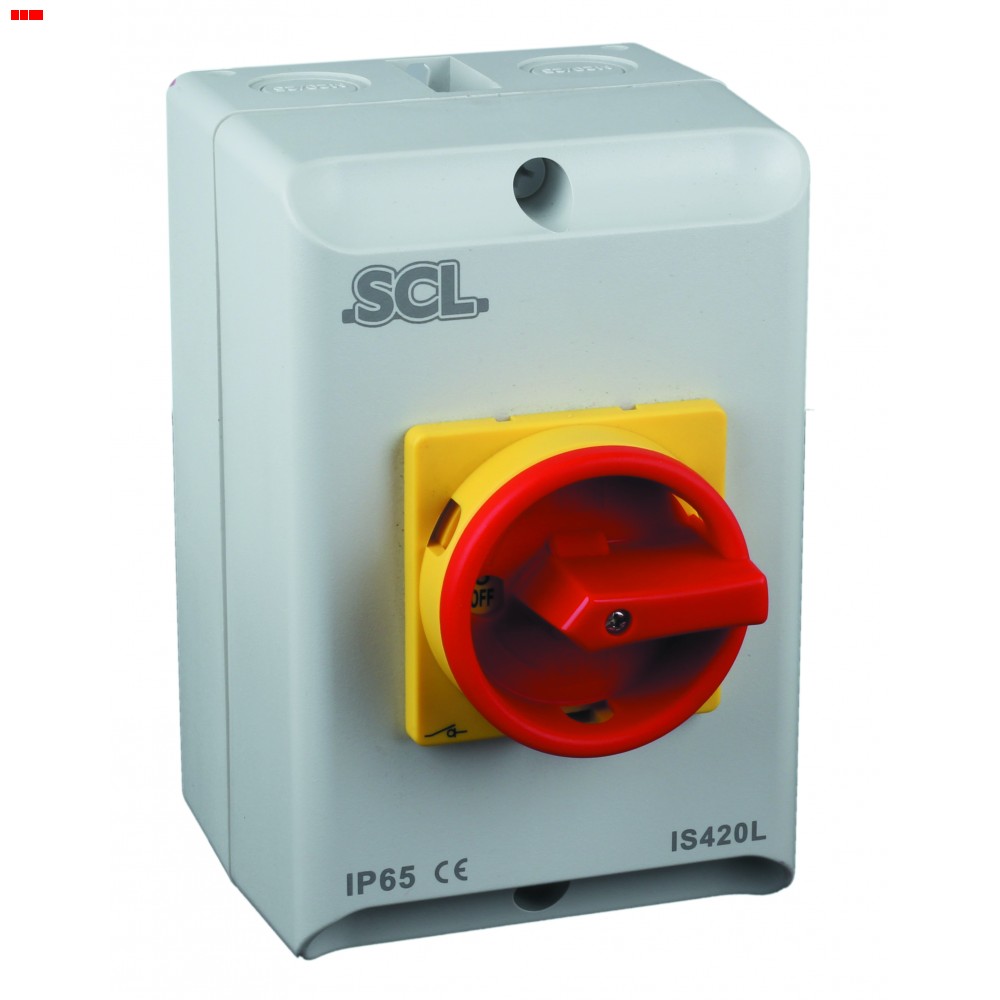

40A 4 Pole Isolator Switch
This enclosed isolator is CE marked and suitable for disconnecting the power supply to outdoor air source heat pumps and air conditioning units.
This isolator is weatherproof to IP65, easy to install, and conform to EC 60947-3. They have a lockable off position and inter lockable lever which can be removed only in the off position. Earth and neutral terminals included.
Our insulated 3 ands 4-pole rotary enclosed isolators are CE marked and suitable for disconnecting the power supply to outdoor air conditioning units. The isolators are weatherproof to IP65, easy-to-install, and conform to IEC 60947-3. They have a lockable OFF position and interlocking cover which can be removed only in the OFF position. Earth and neutral terminals included and M20/25 knockouts up to 63A.
- Weatherproof to IP65
- Easy installation
- M20/25 Knockouts up to 63A
- Handle lockable in off position
- Interlocked cover removable in off position only
- Earth and neutral terminals included
- Captive, retained cover screws
- Conforms to IEC 60947-3
| Min Quantity | Price per Unit |
|---|---|
| 1 | £39.27 |
| 5 | £31.42 |
| 10 | £29.45 |
£39.27 + VAT
Specification for: 40A 4 Pole Isolator Switch
| 240VA | 15kW |
| 400VA | 11kW |
| AC21 | 40amp |
| AC23 A 240VA | 15 kW |
| AC23 A 400VA | 11 kW |
| Amps AC21 | 40 Amp |
| Depth | 135mm |
| Height | 175mm |
| MPN | IS-4P-40A |
| No. of Poles | 4 |
| Part Name | IS-4P-40A |
| poles | 4 |
| Solid | 1-16mm^{2} |
| Solid Cable Capacity | 1-16mm² |
| Stranded | 0.75-10mm^{2} |
| Stranded Cable Capacity | 0.75-10mm² |
| Width | 114mm |
This enclosed isolator is CE marked and suitable for disconnecting the power supply to outdoor air source heat pumps and air conditioning units.
This isolator is weatherproof to IP65, easy to install, and conform to EC 60947-3. They have a lockable off position and inter lockable lever which can be removed only in the off position. Earth and neutral terminals included.
| Dimensions | 135 × 114 × 175 cm |
|---|---|
