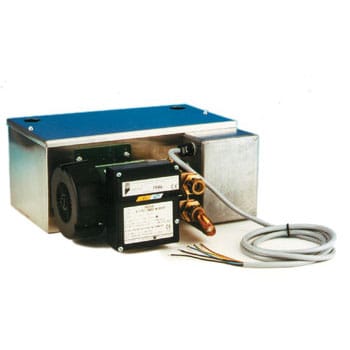

Aspen Heavy Duty Hot Water Condensate Pump
Ref: 54506
The Hot Water Heavy Duty pump is designed to handle 80°C water and with an outstanding 1800L/h water flow rate. No job is too big!
- Tank Capacity : 5L
- Head : 15 m
- Flow : 1800 L/h
- High flow rate
- Handles 100°C water
- Non return valve
- Easy installation
- Suitable up to 2400kW / 8m Btu/h
- Suitable for Air handling units (AHUs); Humid
Quantity discounts available:
| Min Quantity | Price per Unit |
|---|---|
| 1 | £743.61 |
| 5 | £632.07 |
£743.61 + VAT
Ordering is only available to Trade Customers
Specification for: Aspen Heavy Duty Hot Water Condensate Pump
| Class | I appliance |
| Data Based | @ 230 VAC 50Hz |
| dB (a) | 63 |
| Depth | 355 mm |
| Flow | 1800 L/h |
| FP2132 | Hot Water Heavy Duty |
| Fully potted | ✕ |
| Head | 15 m |
| Height | 160 mm |
| Inlets | x2 40mm |
| IP Protection | IP21 |
| Max. flow | 1800 L/h |
| Max. flow 1800L/h | Max. rec. head 15m (flow rate 10L/h) |
| Max. rec. head | 15m |
| Max. unit output | 2400kW / 8m Btu/h |
| Max. water temp | 80°C / 176°F |
| MPN | FP2132 |
| Noise_Level | 63 dBA |
| Outlets | 15mm |
| Power supply | 230 VAC 1.5A 50Hz |
| Rated | Continuously |
| Safety switch | 3.0A Normally closed |
| Self priming | ✕ |
| Sensor | Tank |
| Tank Capacity | 5L |
| Thermal protection | ✓ |
| Weight | 8.6 Kg |
| Width | 320 mm |
The Hot Water Heavy Duty pump is designed to handle 80°C water and with an outstanding 1800L/h water flow rate. No job is too big!
| Weight | 8.6 kg |
|---|---|
| Dimensions | 355 × 320 × 160 cm |
| Brand | |
| Flow | |
| Head | |
| Product Category | |
| Tank Capacity |
