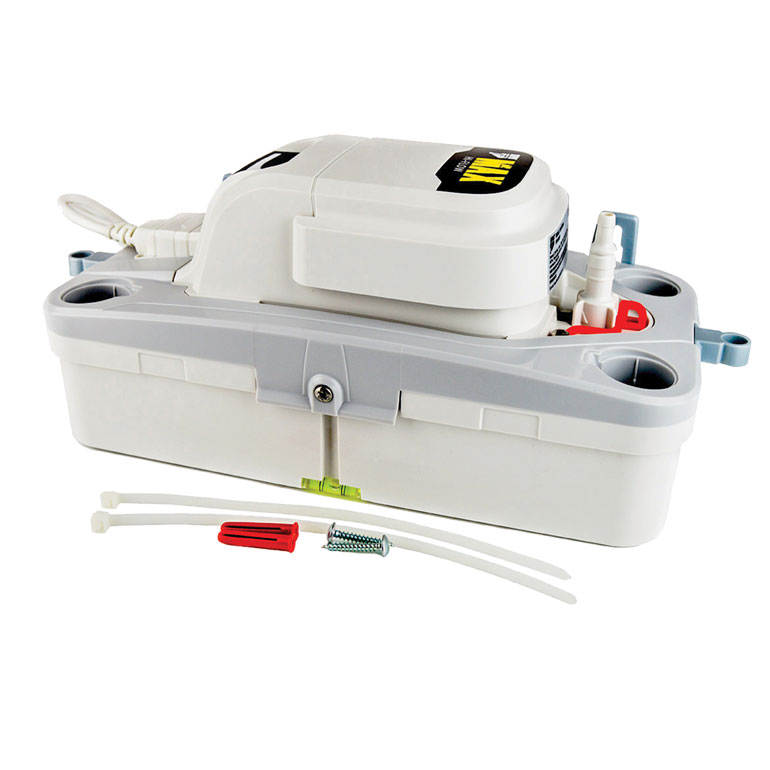

Aspen Max Hi Flow Condensate Pump
Ref: 159406
The best in class Max Hi-Flow tank pump carries on the Aspen Pumps tradition of build quality & high performance. With the lowest dB(A) rating & best IP rating (IP24 splash proof) of any tank pump, the Max Hi-Flow is the quietest & safest pump in its class.
- Tank Capacity : 1.7L
- Head : 5 m
- Flow : 550 L/h
- Sound Level : 44 dBA
- Tank Capacity : 1.7 lt
- IP24 : Splash proof
- Easy access tank
- Built in spirit level
- Plug & play
- Suitable up to 733kW / 2.5mBtu/h

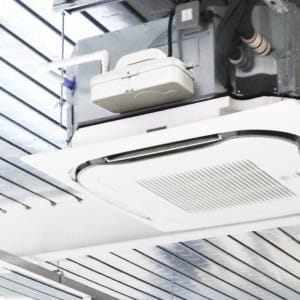

- Suitable for ducted units; Floor standing & c
Quantity discounts available:
| Min Quantity | Price per Unit |
|---|---|
| 1 | £64.65 |
| 5 | £54.95 |
£64.65 + VAT
Ordering is only available to Trade Customers
Specification for: Aspen Max Hi Flow Condensate Pump
| Class | I appliance |
| Data Based | 10mm NRV @ 230 VAC 50Hz |
| dB (a) | 44 |

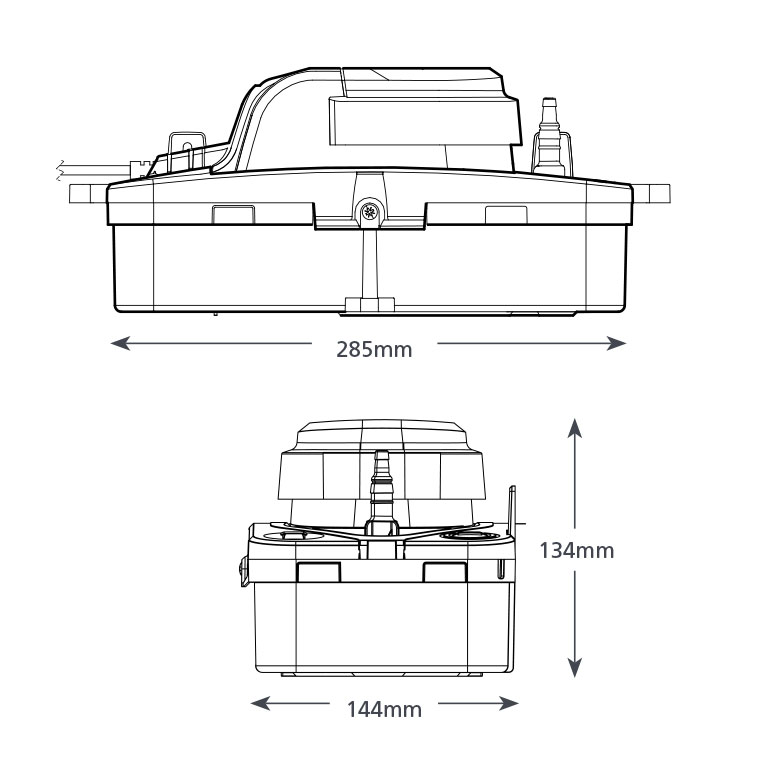

| Depth | 144 mm |
| Flow | 550 L/h |
| FP3349 | Max Hi-Flow |
| Fully potted | ? |
| Head | 5 m |
| Height | 134 mm |
| Inlets | x4 21-27mm |
| IP Protection | IP24 |
| Max Hi-Flow installation video | About the Max Hi-Flow |
| Max. flow | 550 L/h |
| Max. flow 550L/h | Max. rec. head 5m (flow rate 55L/h) |
| Max. rec. head | 5m |
| Max. unit output | 733kW / 2.5m Btu/h |
| Max. water temp | 40°C / 104°F |
| MPN | FP3349 |
| Outlets | 6mm & 10mm |
| Power supply | 230 VAC 0.8A 50Hz |
| Rated | Non Continuous |
| Safety switch | 3.0A Normally closed |
| Self priming | ? |
| Sound Level | 44 dBA |
| Tank Capacity | 1.7L |
| Thermal protection | ? |
| Weight | 2.16 Kg |
| Width | 285 mm |
The best in class Max Hi-Flow tank pump carries on the Aspen Pumps tradition of build quality & high performance. With the lowest dB(A) rating & best IP rating (IP24 splash proof) of any tank pump, the Max Hi-Flow is the quietest & safest pump in its class.
| Weight | 2.16 kg |
|---|---|
| Dimensions | 144 × 285 × 134 cm |
| Brand | |
| Flow | |
| Head | |
| Product Category | |
| Tank Capacity |
