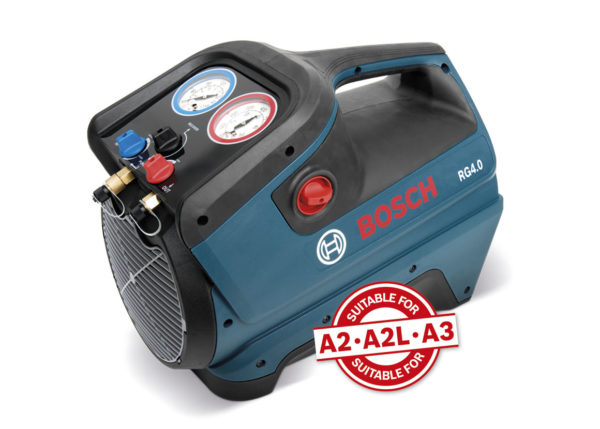

Bosch RG4.0 Recovery Unit 110v
Bosch RG4.0 Recovery Unit 110v
- Liquid recovery rates: 122.1 kg/hr
- Vapour recovery rates: 10.7 kg/hr
- Maximum operating pressure of 38.5 bar / 550 psi
- High Pressure Cut Out 550 psi / 38.5 bar
- Compressor 1/2 HP, 1700 / 1750 rpm (110)
- Fuse 12A (110) 8A (240)
- Refrigerants RRR12, R22, R134A, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407A, R407B, R407C, R407D, 408A, R409A, R410A, R411A, R411B, R412A,
- High displacement electrical fan draws fresh air first through the condensor for improved recovery rates in extreme conditions.
£963.17 + VAT
Specification for: Bosch RG4.0 Recovery Unit 110v
| Circuit breaker | RG 4.0A 8 A RG 4.0B 12 A |
| Compressor | Single cylinder |
| Dimensions (L x W x H) | 450 x 250 x 350 mm |
| Gas capacity maximum | 107 kg/hr |
| Liquid capacity maximum by push pull | 4105 kg/hr |
| Liquid capacity maximum capacity rates | 1221 kg/hr |
| Maximum working pressure | 385 bar |
| Model | RG 4.0 A/B |
| MPN | Bosch RG 4.0 |
| Operating ambient temperature range | 0 50 °C |
| Power | 1/2HP / 360 Watt |
| Range | Refrigeration |
| Rated current | RG 4.0A 5 ARG 4.0B 9 A |
| Safety device | Safety pressure switch with automatic reset (38.5 bar)Safety pressure switch with automatic reset (38.5 bar)Pressostat de sécurité avec réinitialisation automatique (385 bar/550 psi) |
| Suitable refrigerants | AHRI cat. / Kat. / cat. III IV V + A2L A3 |
| Supply/Voltage | 110v |
| Type | Recovery Units |
| Weight | 146 Kg |
Bosch introduces its FIRST recovery machine with competitive recovery rates on all refrigerants (including (A2L). With an 1/2 HP / 1750 rpm motor this design provides better recovery throughout, in all conditions.
Packaged in the recognisable Bosch housing the RG4.0 stand up to all competitors, but remains lightweight
and compact. The RG4.0 will meet your needs now, and those in the future
Suitable for A2L Refrigerants such as R32
R32, R-1234YZ, R-1234ZE, RRR12, R22, R134A, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407A, R407B, R407C, R407D, 408A, R409A, R410A, R411A, R411B, R412A, R417A, R422A,
R422D, R427A, R500, R502, R507, R509 and others
A3 certificate pending (R290 and R600)
Maximum operating pressure of 38.5 bar / 550 psi
