Bosch introduces its FIRST recovery machine with competitive recovery rates on all refrigerants (includedA2L). With an 1/2 HP / 1750 rpm motor this design provides better recovery throughout, in all conditions.Packaged in the recognisable Bosch housing the RG4.0 out-performs all competitors, but remains lightweight and compact. The RG4.0 will meet your needs now, and those in the future.

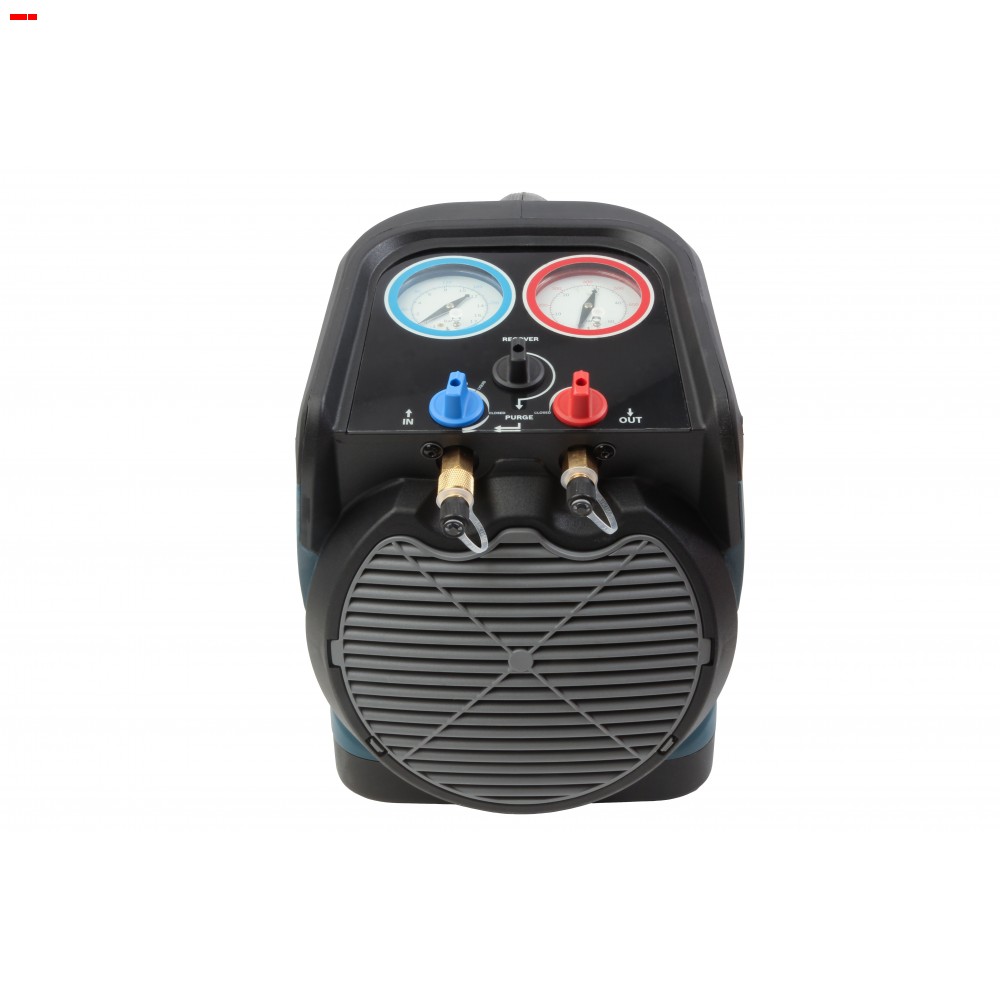

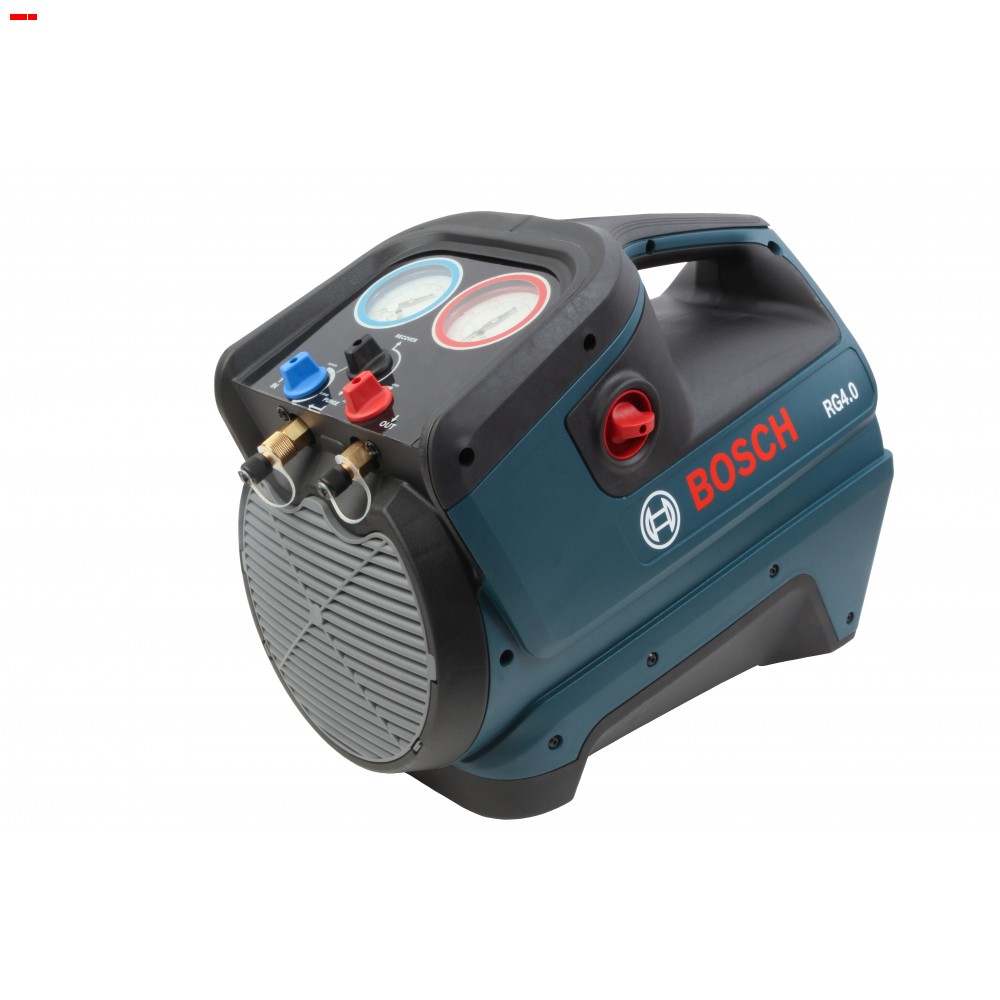

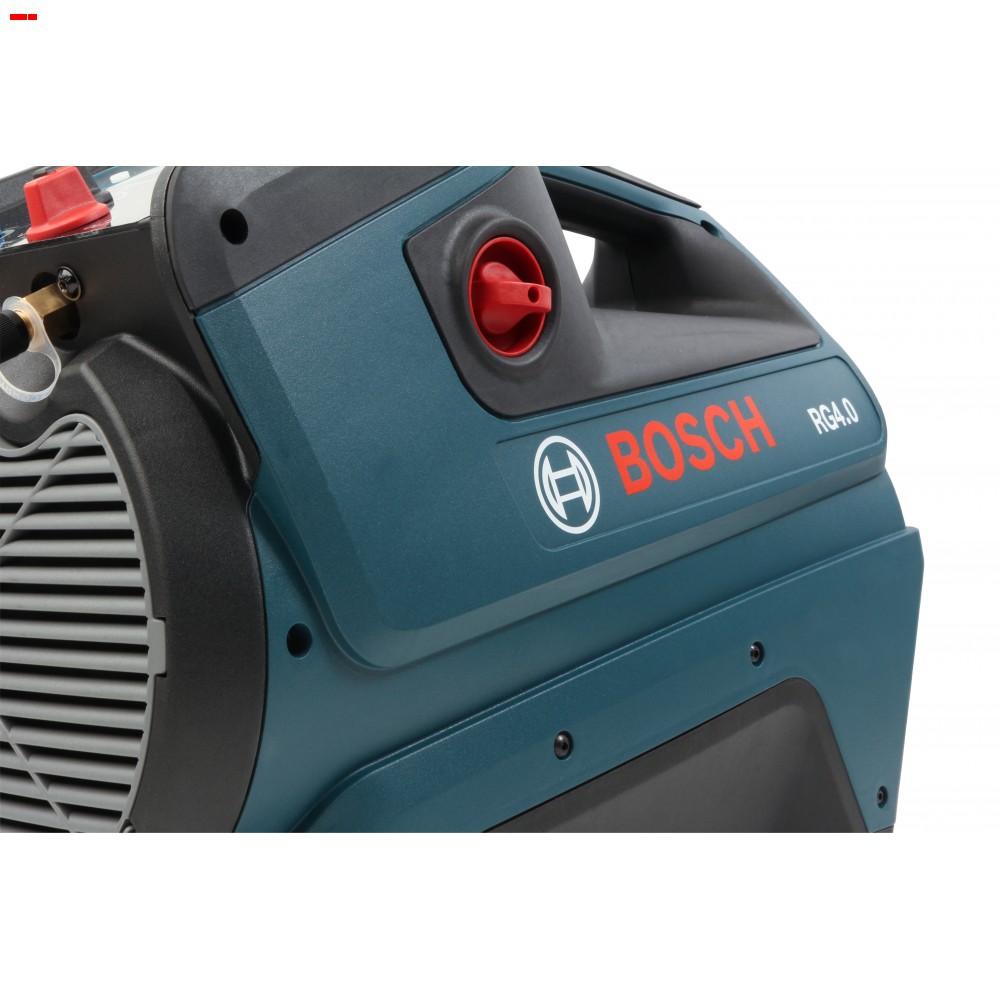

Bosch RG4.0 Recovery Unit 240v
Ref: 203502
Bosch introduces its FIRST recovery machine with competitive recovery rates on all refrigerants (includedA2L). With an 1/2 HP / 1750 rpm motor this design provides better recovery throughout, in all conditions.Packaged in the recognisable Bosch housing the RG4.0 out-performs all competitors, but remains lightweight and compact. The RG4.0 will meet your needs now, and those in the future.
- Tool for professional applications.
- Stable and reliable operation.
- Specially designed mounts and feet to provide stability, noise and vibration isolation.
- Single cylinder compressor stable, reliable and oilless.
- Robust and impact resistant.
- Protective cover keeps dirt away from gauges and controls.
- Low pressure switch for smooth operation. Cuts off when ideal vacuum level is reached thereby preventing unnecessary operation and reducing wear.
- High displacement electrical fan draws fresh air first through the condensor for improved recovery rates in extreme conditions.
- Handle over-molded with rubber (TPE) for a reliable grip.
- Geeignet für fast alle gängigen Kältemittel inkl. A2L + A3.
- Electrical and refrigerant line connections on opposite ends.
- Bottom mount assembly and layout for enhanced serviceability.
- Automatic reset HP cut-out protects the equipment and operator.
- Liquid recovery rates: 122.
Specification for: Bosch RG4.0 Recovery Unit 240v
| Circuit breaker | RG 4.0A 8 A RG 4.0B 12 A |
| Compressor | Single cylinder |
| Dimensions (L x W x H) | 450 x 250 x 350 mm |
| Gas capacity maximum | 107 kg/hr |
| Liquid capacity maximum by push pull | 4105 kg/hr |
| Liquid capacity maximum capacity rates | 1221 kg/hr |
| Maximum working pressure | 385 bar |
| Operating ambient temperature range | 0 - 50 °C |
| Range | Refrigeration |
| Safety device | Safety pressure switch with automatic reset (38.5 bar)Safety pressure switch with automatic reset (38.5 bar)Pressostat de sécurité avec réinitialisation automatique (385 bar/550 psi) |
| Supply/Voltage | 230v |
| Type | Recovery Units |
| Weight | 146 Kg |
