Diversitech Redbox-1L-S 1 Litre Condensate Pump
Ref: 188606
- Tank Capacity : 1 lt
- Head : 5.1 m
- Flow : 280 L/h
- Sound Level : 44 dBA
- Supplied with both 3/8 and 1/4 removable check valves
- Four inlet holes
- Metal hang tabs
- Vibration Isolation on feet
- MAX. FLOW 280 LPH
- TANK CAP. 1L
- DECIBEL RATING 44 dB(A)
Quantity discounts available:
| Min Quantity | Price per Unit |
|---|---|
| 1 | £48.06 |
| 5 | £43.25 |
£48.06 + VAT
Ordering is only available to Trade Customers
The DiversiTech RedBox 1 Litre Tank Pump is a condensate tank pump with a flow rate of 280 LPH and a lift of 5.1 metres. This pump has metal mounting tabs which allows the tank to be screwed to the wall. The universal power lead makes the pump easy to install, service and retrofit.
MAX. FLOW 280 LPH
TANK CAP. 1L
DECIBEL RATING 44 dB(A)
| Brand | |
|---|---|
| Flow | |
| Head | |
| Product Category | |
| Tank Capacity | |
| Voltage |
Specification for: Diversitech Redbox-1L-S 1 Litre Condensate Pump
| Alarm level | 25mm |
| Amps | 1.0A |
| Cable length | 1.8m |
| dB A | 44 |

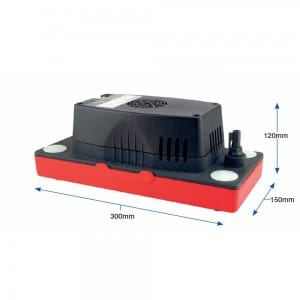

| Dimensions mm HxWxL | 120x150x300 |
| Drink cycle | 460ml |
| Flow | 280 L/h |
| Head | 5.1 m |
| High level alarm | 230V / 3A |
| HZ | 50Hz |
| Inlet height fr. base | 112mm |
| IP | 20 |
| Max flow | 280LPH |
| Max head | 5.1m |
| MPN | REDBOX-1L-S |
| Off level | 6mm |
| On level | 15.5mm |
| Reserve before overflow | 140ml |
| Sound Level | 44 dBA |
| Tank cap | 1L |
| Tank Capacity | 1 lt |
| Voltage | 230V |
| Watts | 60W |
| Weight | 2.3kg |
