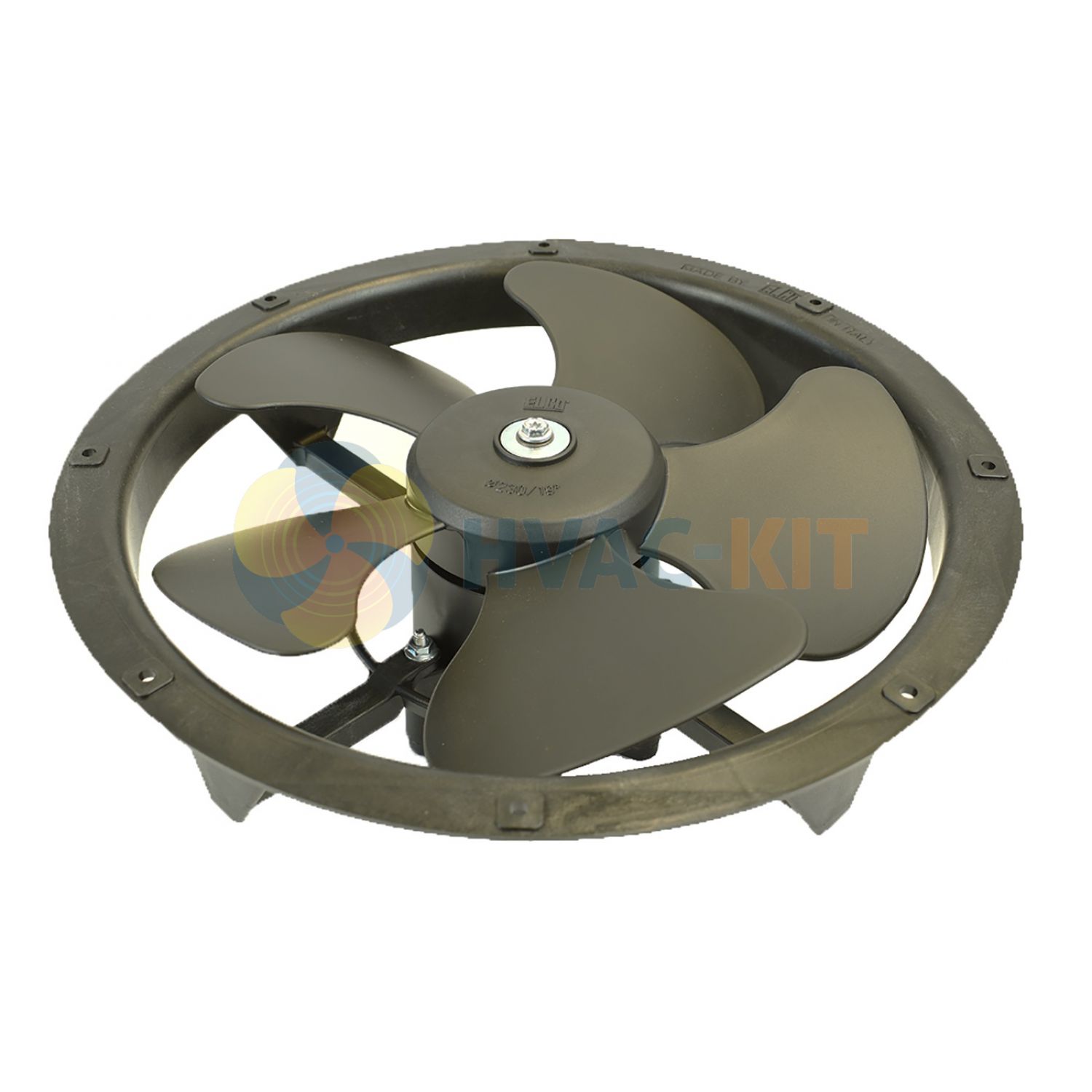

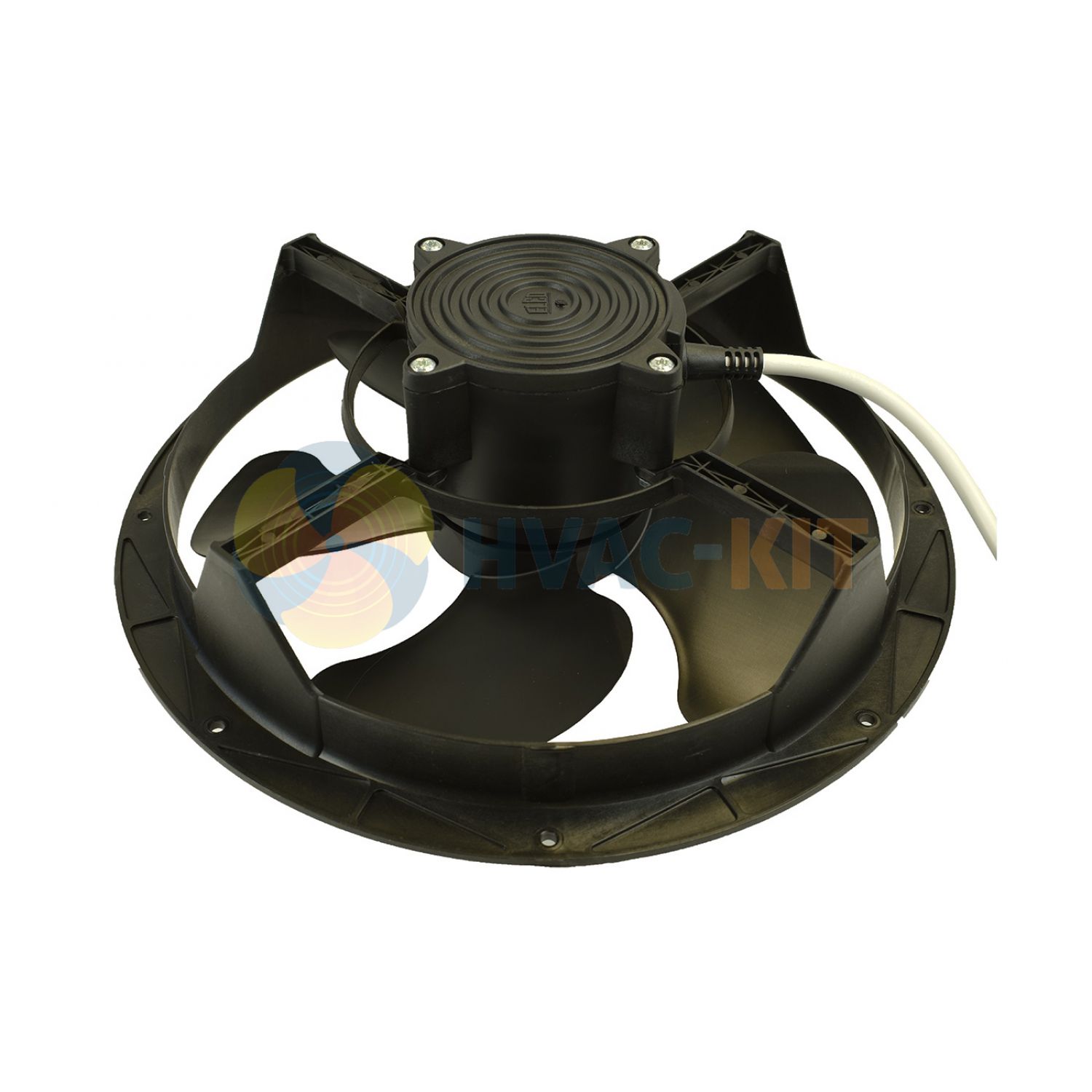

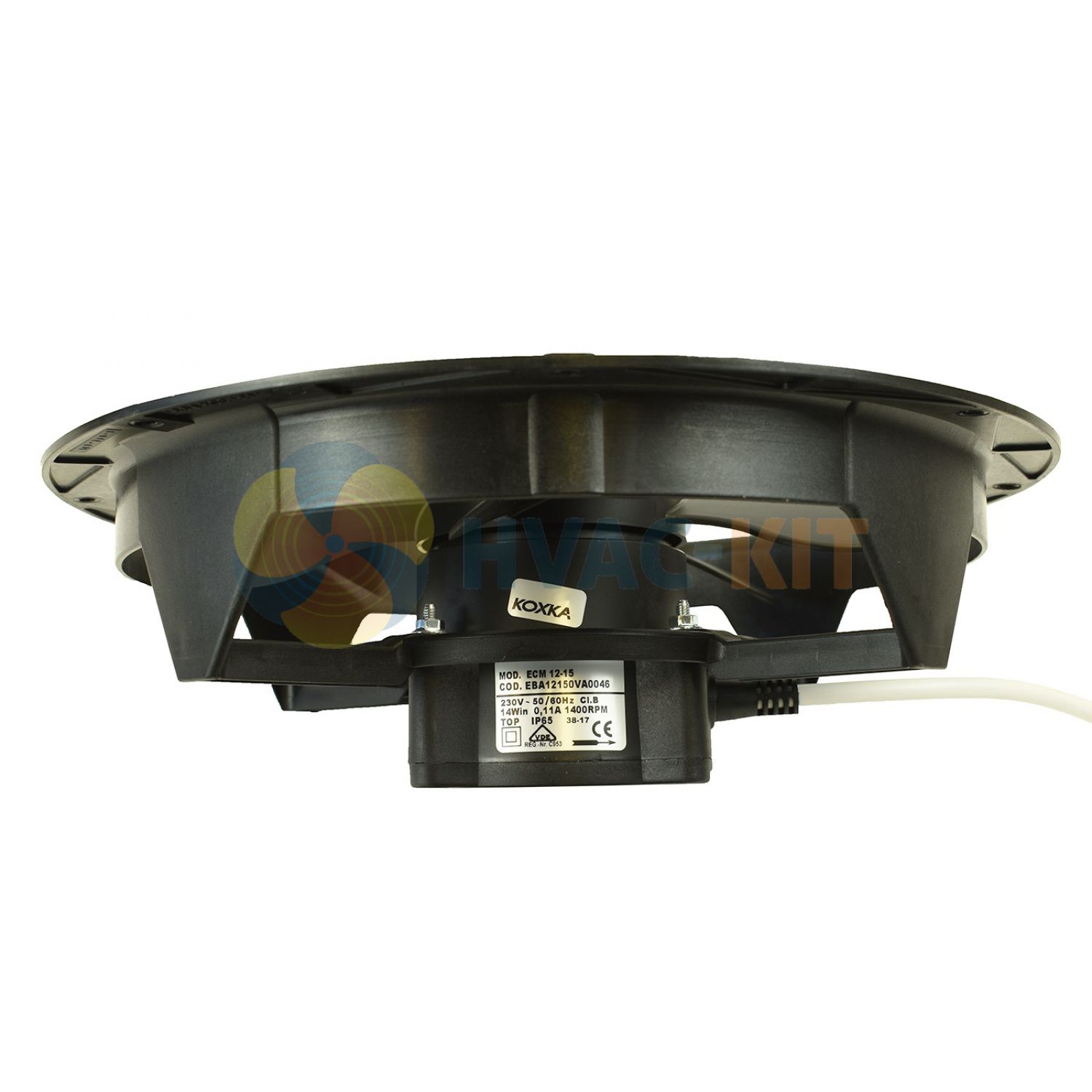

EBA12150VA0046 Ring Mount Axial Fan Sucker
Ref: 181205
The EBA12150VA0046 is a electronically commutated (230V 50Hz) sucker ECM (1400rpm) ring mount Assembly. 4 mountings on ring mount (266mm PCD) and supplied with Plug. An Elco manufactured fan assembly offering superb build quality.
- Blade Diameter : 230mm
- Supply/Voltage : Electronically Commutated (230V, 50Hz)
- Nominal Run Speed (RPM) : ECM (1400-2200rpm)
- Part Number : EBA12150VA0046
- Connection Type : Plug
- Blade Pitch : 19
- Airflow Direction : Sucker

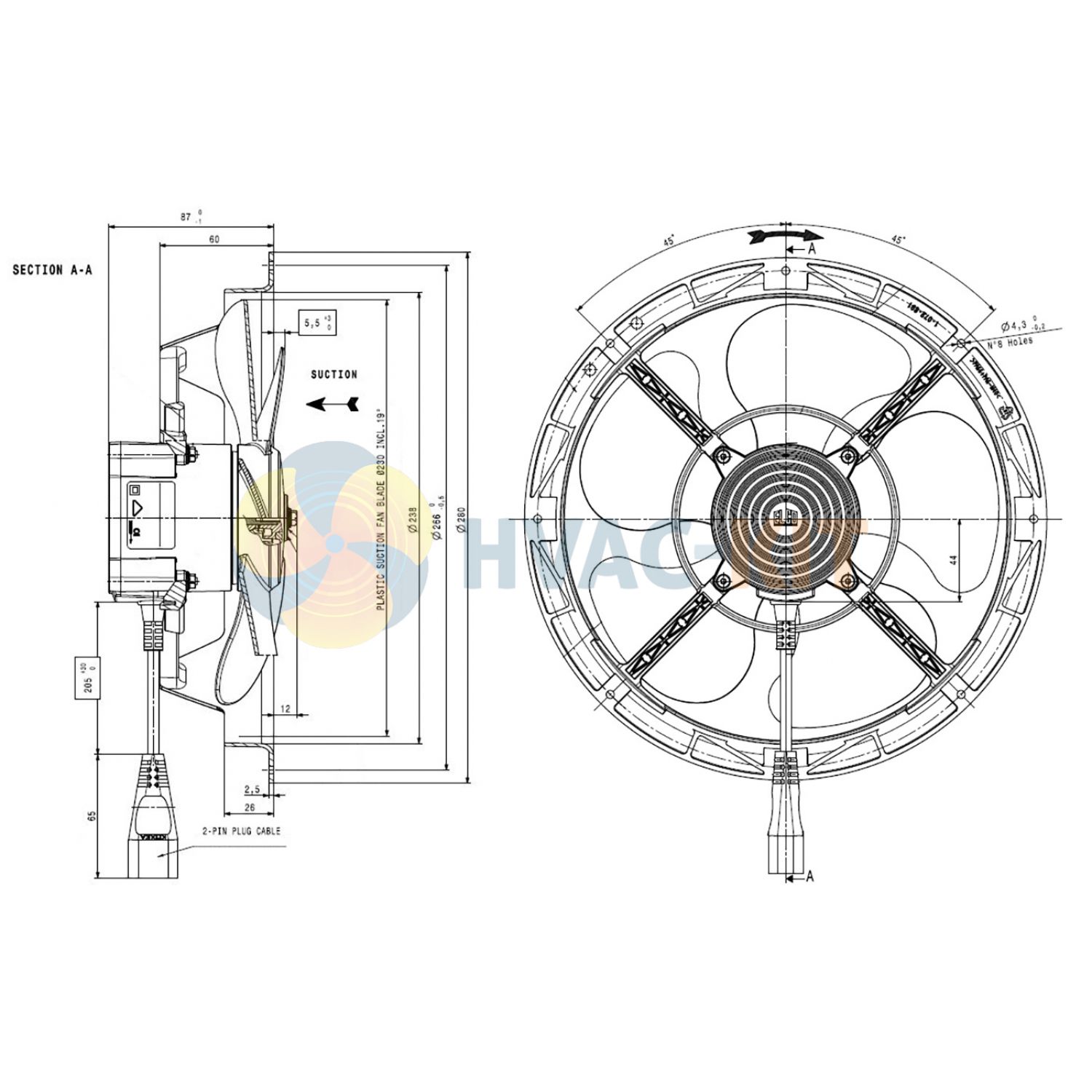

- Specific Mounting Details : 4 Mountings on Ring mount (266mm PCD)
£65.34 + VAT
Ordering is only available to Trade Customers
The EBA12150VA0046 is a electronically commutated (230V 50Hz) sucker ECM (1400rpm) ring mount Assembly. 4 mountings on ring mount (266mm PCD) and supplied with Plug. An Elco manufactured fan assembly offering superb build quality. The EBA12150VA0046 is a electronically commutated (230V 50Hz) sucker ECM (1400rpm) ring mount Assembly. 4 mountings on ring mount (266mm PCD) and supplied with Plug. An Elco manufactured fan assembly offering superb build quality.
| Airflow Direction | |
|---|---|
| Blade Diameter | |
| Brand | |
| Connection Type | |
| Nominal Run Speed (RPM) | |
| Supply/Voltage |
Specification for: EBA12150VA0046 Ring Mount Axial Fan Sucker
| Airflow Direction | Sucker |
| Blade Diameter | 230mm |
| Blade Pitch | 19 |
| Brand | Remco |
| Connection Type | Plug |
| Hub Type | Integrated |
| Insulation Class | Class B (130°C) |
| IP Rating | IP65 |
| Nominal Run Speed (RPM) | ECM (1400-2200rpm) |
| Part Number | EBA12150VA0046 |
| Specific Mounting Details | 4 Mountings on Ring mount (266mm PCD) |
| Supply/Voltage | Electronically Commutated (230V 50Hz) |
