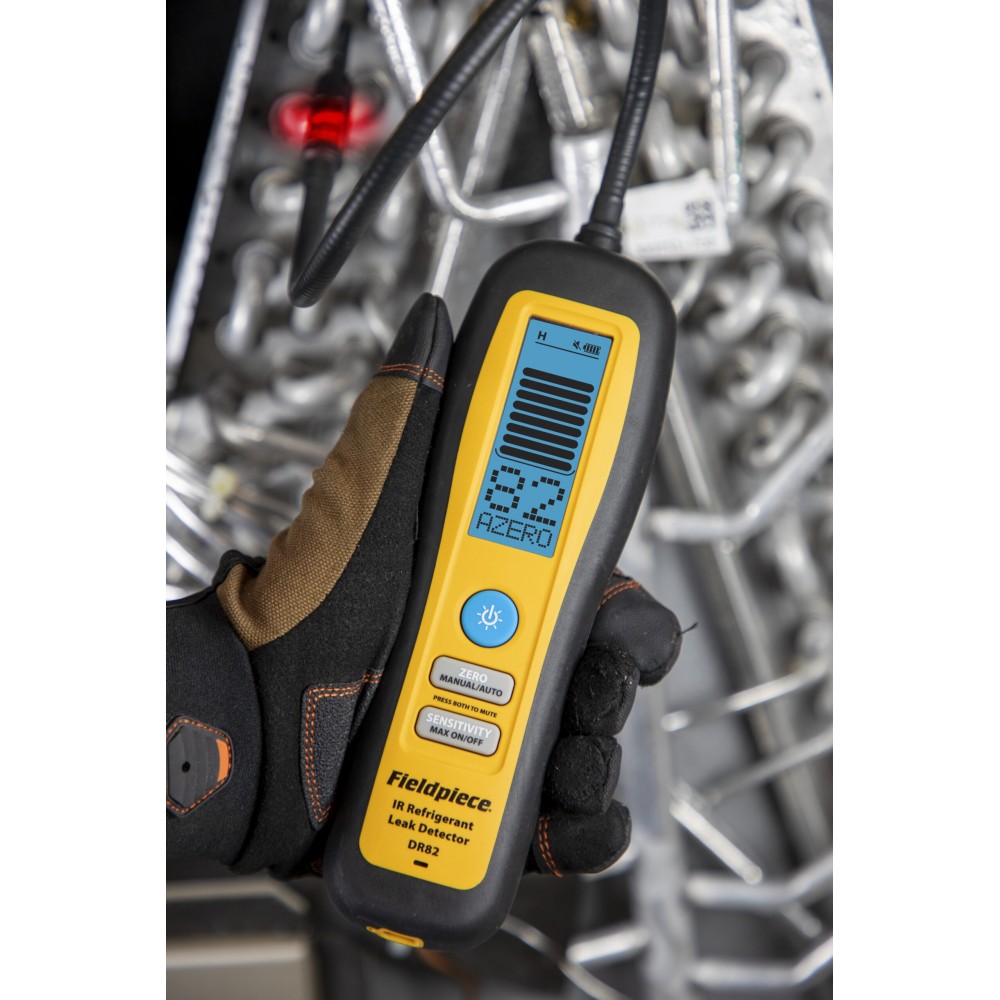

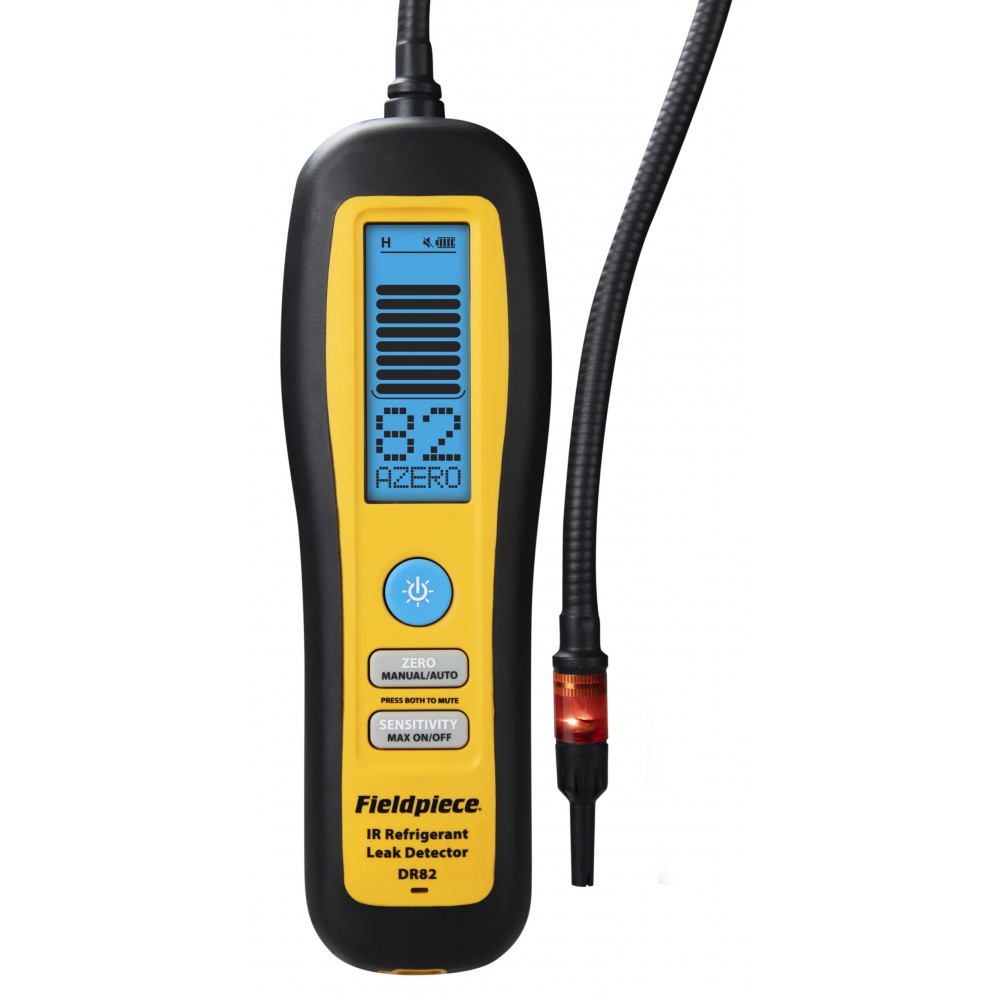

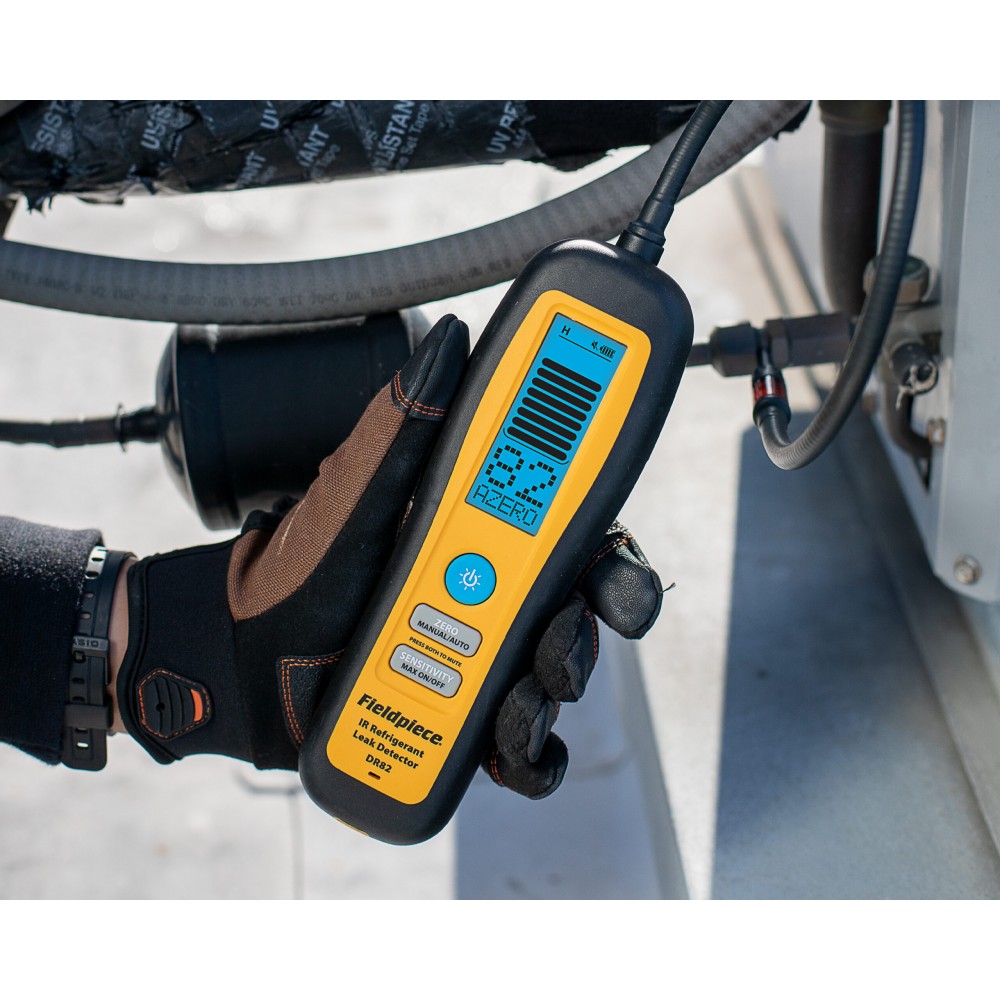

Fieldpiece DR82 Leak Detector

Ref: 237302

If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <0.03 oz/yr. That’s 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends
Fieldpiece DR82 Leak Detector

  • Works on A2L Refrigerants
  • Doesn’t trigger on soap bubbles and oil
  • Compact – designed to fit in your hand
  • Multiple alarms
  • LED lighted tip and loud beep help find leaks in noisy and dark environments
  • Sensitivity better than 0.03 oz/yr (1g/a)
  • Ruggedized and IP54-certified
  • 10-hour battery charge
  • Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
  • Non-conductive, sturdy probe that stays where you want it.
  • 10-year sensor life

£345.99 + VAT

Ordering is only available to Trade Customers

Specification for: Fieldpiece DR82 Leak Detector

Auto Power Off10 minutes without detection or button press
Battery Life10 hours typical backlight off
Battery Type3.7 VDC (nominal) 2600mAh non-replaceable
Charge Time6 hours typical with included charger.
Detection FeedbackRed tip LED LCD bar graph LCD digits beeper
Maximum Sensitivity1g/a stationary; 3g/a) in motion
Operating Environment-20°C to 40°C < 75% RH (non-condensing)
RangeLeak Detection
Recovery Time<5 seconds typical
RefrigerantsHFC HCFC CFC HFOs and blends
Response Time<1 seconds typical
Sensitivity LevelsHigh medium low turbo (selectable)
Sensor Life10 years typical
Sensor TypeInfrared (IR)
Storage Temperature-20°C to 60°C < 80% RH
Water ResistanceDesigned to IP54
Weight400g

State-of-the-art infrared sensor
Massive backlit LCD screen provides clear, easy-to- see information
Sensitivity better than 0.03 oz/yr (1g/a)
Detects all HFC, CFC, HCFC, HFO and blends
Flashing lighted tip, loud beeper and leak rate indicator
Doesn’t trigger on soap bubbles and oil
A2L Compatible
The highest possible sensitivity.
If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <0.03 oz/yr. That’s 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends. Goodbye false-positives. Unlike other detectors you’ll find on the market, the DR82 doesn’t trigger on oil or moisture. It also senses change in refrigerant levels and can work in contaminated environments. The sensors are fast-acting and last up to 10 years. Easy to use, see and charge. The DR82 is designed to easily fit in your hand and is rugged enough to handle the demands you face in the field every day. Its new, bright screen has an easy-to-read bar graphs, numeric readings and customizable dual alarms so you’ll always know exactly what you’re seeing. The DR82 also holds a charge for up to 10 hours and can be used while charging, so it can work as long as you need. DR82 Features:10-year sensor life Doesn’t trigger on soap bubbles and oil Compact – designed to fit in your hand Multiple alarms LED lighted tip and loud beep help find leaks in noisy and dark environments Sensitivity better than 0.03 oz/yr (1g/a) Ruggedized and IP54-certified 10-hour battery charge Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph Non-conductive, sturdy probe that stays where you want it. Weighs less than a pound Works on A2L Refrigerants What’s Included (1) Advanced Infrared Refrigerant Leak Detector – DR82 (5) Replacement Filtered Tips – RFT6 (1) Blow-Molded Case
