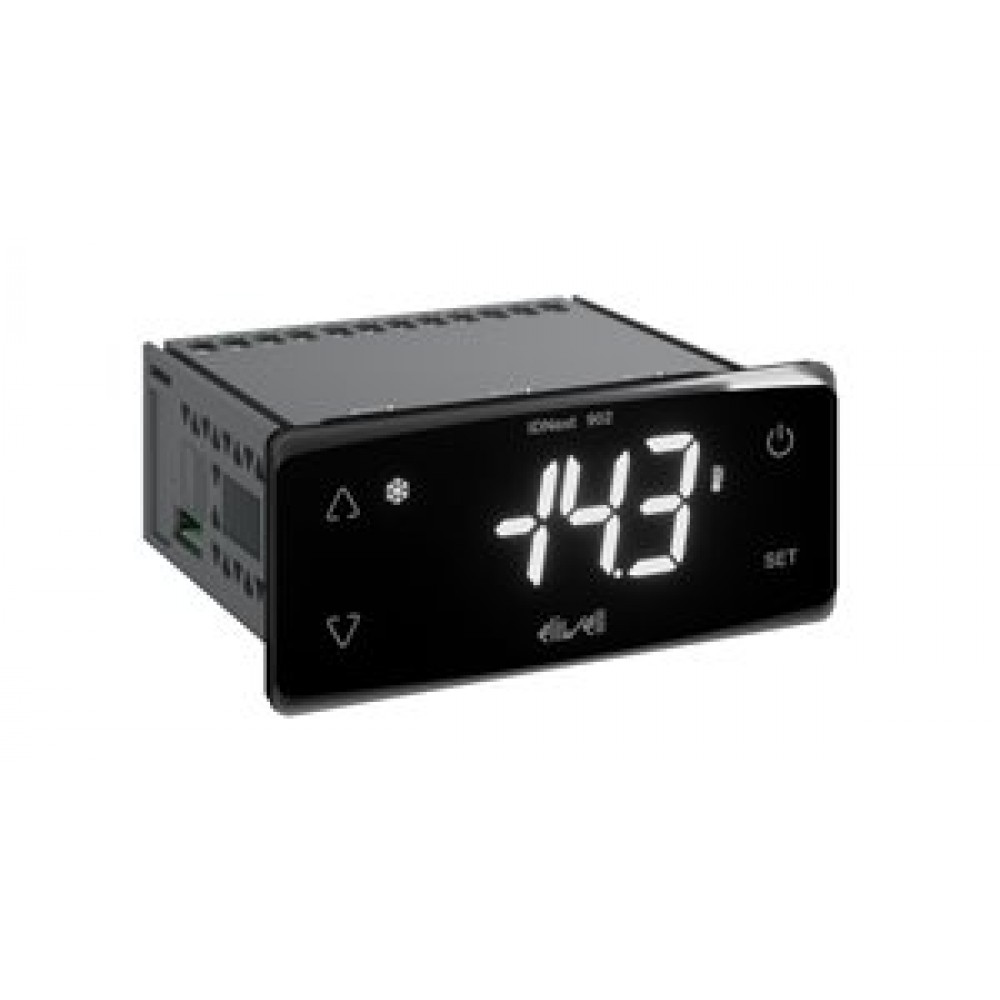

IDNext 971 240 v no probe
Eliwell ID Next are a new generation of refrigeration controllers suitable for static and ventilated units at normal and low temperatures. IDNext range is suitable for use with units which utilize flammable refrigerants in category 2L or 3, such as R290 or R600
Eliwell ID Next are a new generation of refrigeration controllers suitable for static and ventilated units at normal and low temperatures. IDNext range is suitable for use with units which utilize flammable refrigerants in category 2L or 3, such as R290 or R600.
- Commissioning via mobile
- LED lights management
- Electronic fans control
- Variable speed compressors
- Modular defrost
- Larger display and digits
- Natural and new refrigerants
- Integrated gasket IP65
- 6 Touch buttons and 11 Icons
£62.86 + VAT
Eliwell ID Next are a new generation of refrigeration controllers suitable for static and ventilated units at normal and low temperatures. IDNext range is suitable for use with units which utilize flammable refrigerants in category 2L or 3, such as R290 or R600
| Brand | |
|---|---|
| Product Category |
Specification for: IDNext 971 240 v no probe
| Accessories | Unicard USB/TTLDongle BTLE/TTL |
| Accuracy | NTC: better than 05% of full scale + 1 digitPTC: better than 05% of full scale + 1 digitPt1000 [-550 +700°C]: better than 05% of full scale + 1 digitPt1000 [+700 +1500°C]: better than 1% of full scale + 1 digit |
| Alarm | BUZZER |
| Ambient Humidity | 10 90% RH (non-condensing) |
| Analogue Inputs | 2x PTC or NTC or Pt1000 |
| Comp relay | 12A |
| Connectivity | TTL port for connection to Unicard or ModBus monitoring device |
| Defrost type | TIME/TEMP |
| Depth (P) Net | 60mm |
| Depth (P) Packaging | 50mm |
| Digital Inputs | 1x SELV |
| Digital Output | 10 amp |
| Digital Outputs | 1x SPST 2Hp 12(8)A 230Vac1x SPDT 05Hp 8(4)A 230Vac |
| Display | LED 3 digits + sign |
| Display Range | -999 +999 °C -999 +999 °C |
| Functions | Easy Map Buzzer |
| Height (Ht) Net | 35mm |
| Height (Ht) Packaging | 90mm |
| Installation | panel 71x29mm |
| Measurement Range | NTC: -500 +1100 °CPTC: -550 +1400 °CPt1000: -550...+1500 °C |
| MODEL | IDNext 971 |
| MPN | PELX026 |
| N. Analogue Inputs | 2 |
| N. Digital Inputs | 1 |
| N. Digital Outputs | 2 |
| N. Serial Ports | 1 |
| Operating Temperature | -5...55°C |
| Part Number | IDN971P9D307000 |
| Power Draw | 55 VA |
| Power Supply | 230Vac |
| Probes | NTC/PTC/Pt1000 |
| Probes Inc | NO |
| Probes Included | No |
| Resolution ( 0.1°C with decimal point ) | 01°C |
| Serial Ports | 1x TTL |
| Storage Temperature | -30 85°C |
| Supply | 230V |
| Weight (g) Net | 185 |
| Weight (g) Packaging | 230 |
| Width (L) Net | 81mm |
| Width (L) Packaging | 130mm |
