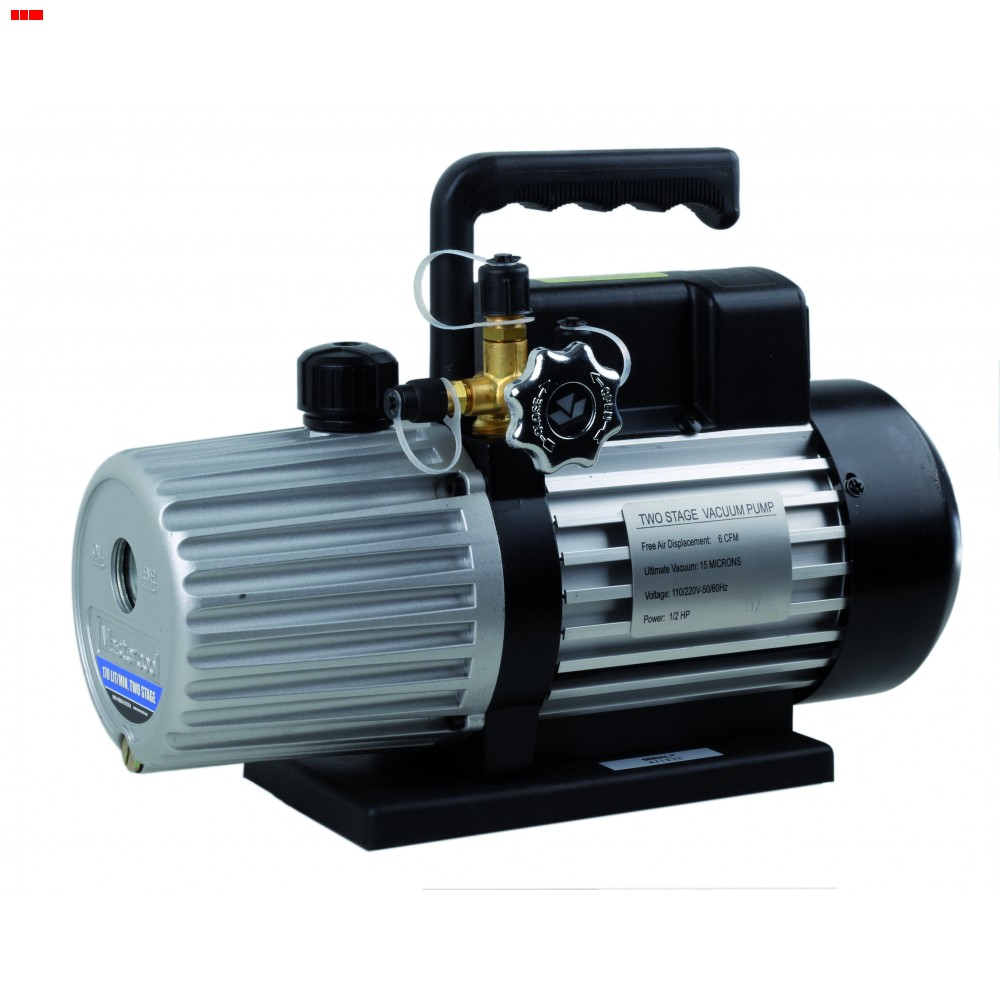

Mastercool 90066-2V-220B 5 cfm Dual Voltage V

A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.

KEY FEATURES:
– Stronger Motor
– Gas Ballast Valve Helps Prevent Oil Contamination Caused by High Moisture
– Easily Removable Vapor Discharge/Oil Fill Port. Contains Internal Check Valve to Prevent Escape of Liquid Oil
– Large Oil Level Sight Glass with Max/Min Oil Level Indicator
– Easily Accessibleÿ Oil Drain Valve
– Large, Light Weight Reinforced Base for Stable Positioning
– Field Replaceable Cartridge
– Cooling Fins to Keep Temperature Cooler During Extended Motor Operation
– High Volume Fanÿ Provides Cool Airÿ to Motor and Pump
– Manifold Valve Isolates Pump from the System when Testing for Leaks. Includes 3 Inlet Ports, 1/4″, 3/8″ SAE and 1/2″ ACME

SPECIFICATIONS:
– No. of Stages: 2
– Free Air Displacement: 170 lit/min / 142 lit/min
– Ultimate Vacuum: 15 Microns
– Pump Motor: 1/2 HP
– Pump Speed: 1440ÿRPM
– Electrical Specs: 220 V / 50/60 Hz
– Power Cord: 220 V Cable (Shuko)
– Shipping Weight: 24.25 lbs (11 kg)
– Dimensions in cm:ÿ37.9 x 16.7 x 27.5
