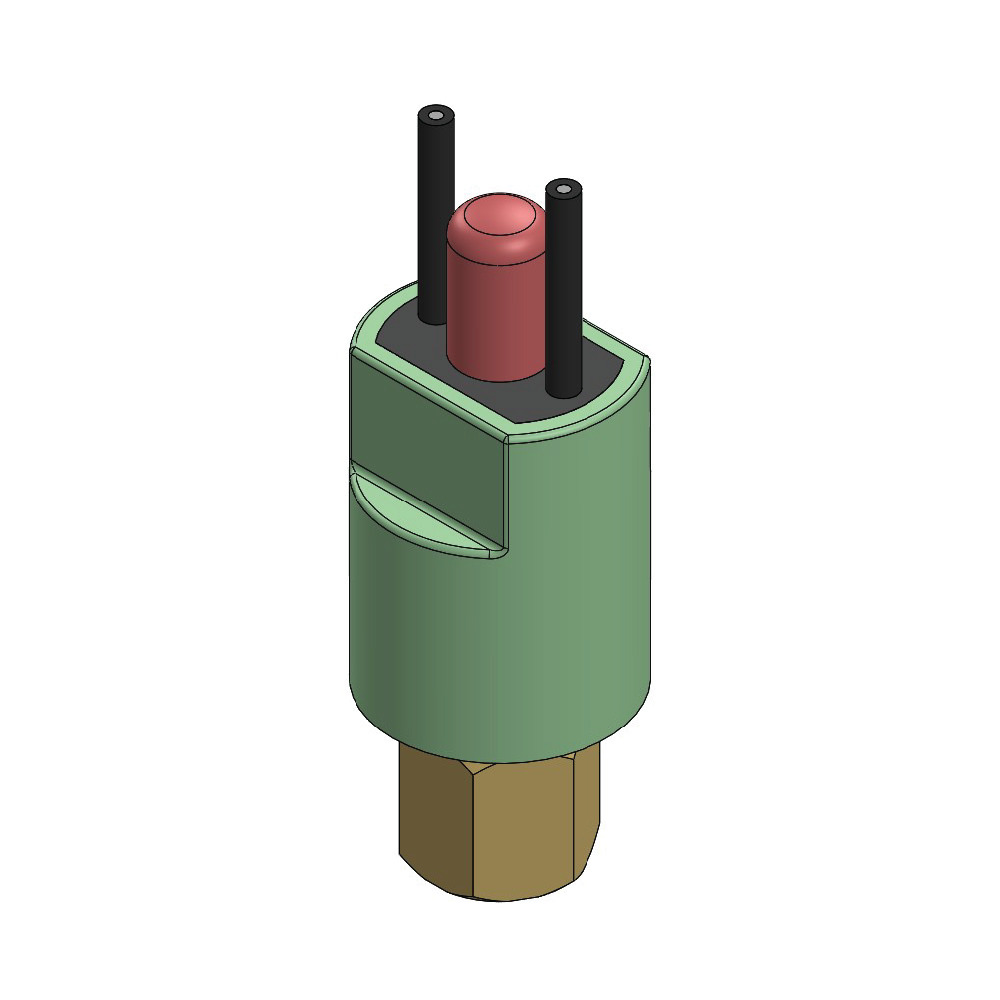

OEM pressure switch 377 psi manual
Higher activ. pressure [bar]: 26.2, Lower activ. pressure [bar]: 20, Reset function: Manual, Contact function: SPST(NC), Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65,
Saginomiya OEM Pressure Control CB series are disc type small pressure controls featuring compact structure and field proven high quality. Designed to suit modern designed applications with its compact and various type of connection styles, such application as air conditioning, automobile industries and others. Saginomiya Type ACB High & medium pressure range
£20.10 + VAT
Specification for: OEM pressure switch 377 psi manual
| Alternate Part No | MSAG084 |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | CECE 0035PEDTÜVC UL US UL60730 |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| Cable length [in] | 59.06 in |
| Cable length [m] | 1.5 m |
| Cable type | AWG18 |
| CE evaluated | Yes |
| Connection | 1/4 F.FLARE |
| Contact function | SPST(NC) |
| Contact rating | AC=6 A 250 V |
| Contains batteries | No |
| EAN | 5702428518703 |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Gross weight | 0.097 Kilogram |
| Higher activ. pressure [bar] | 26.2 bar |
| Higher activ. pressure [psi] | 380 psi |
| Housing | Epoxy type |
| Lower activ. pressure [bar] | 20 bar |
| Lower activ. pressure [psi] | 290 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -55 °C |
| Medium temperature range [°F] [max] | 275 °F |
| Medium temperature range [°F] [min] | -70 °F |
| MODEL | 061F9713 |
| Mounting | Vertical +/- 45º |
| MPN | 061F9713 |
| Net weight | 0.094 Kilogram |
| Oil free refrigerants | R134aR513A |
| Pressure connection notes | Deflator |
| Pressure connection size | 1/4 in |
| Pressure connection type | Flare |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Product accessories | Switches accessories |
| Product group | Switches and thermostats |
| Product Name Descri | Cartridge pressure switch |
| R125R134aR22R404AR407CR407HR410AR438AR448AR449AR452AR513A | |
| MANUAL | |
| Manual | |
| No | |
| OFF 377PSI | |
| ACB-2UB813MW | |
| ACB | |
| R125R134aR22R404AR407CR407HR410AR438AR448AR449AR452AR513A | |
| Yes | |
| 0.394 Liter | |
| Black |
Higher activ. pressure [bar]: 26.2, Lower activ. pressure [bar]: 20, Reset function: Manual, Contact function: SPST(NC), Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65,
