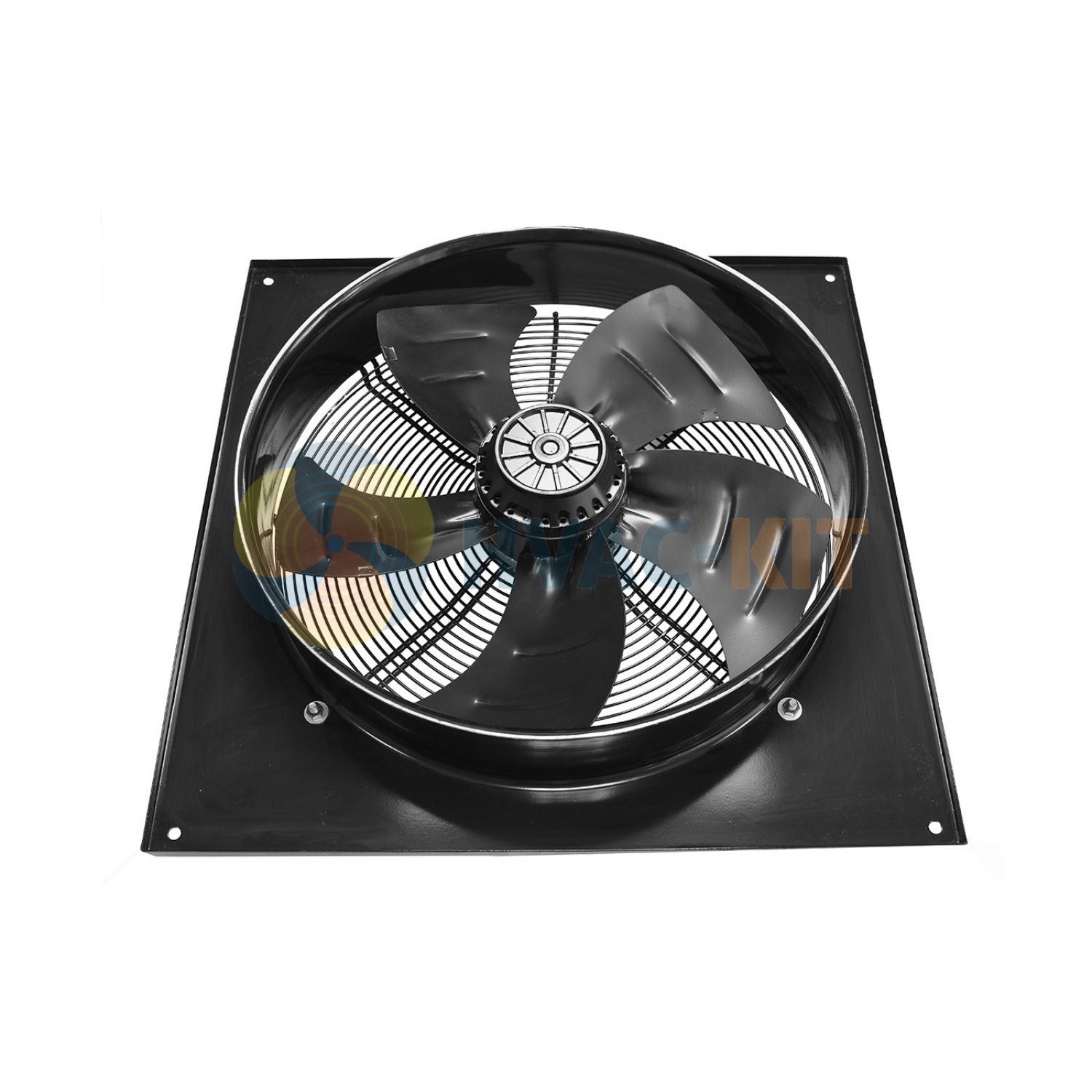

630mm Plate Mounted Axial Fan Sucker 1 ph

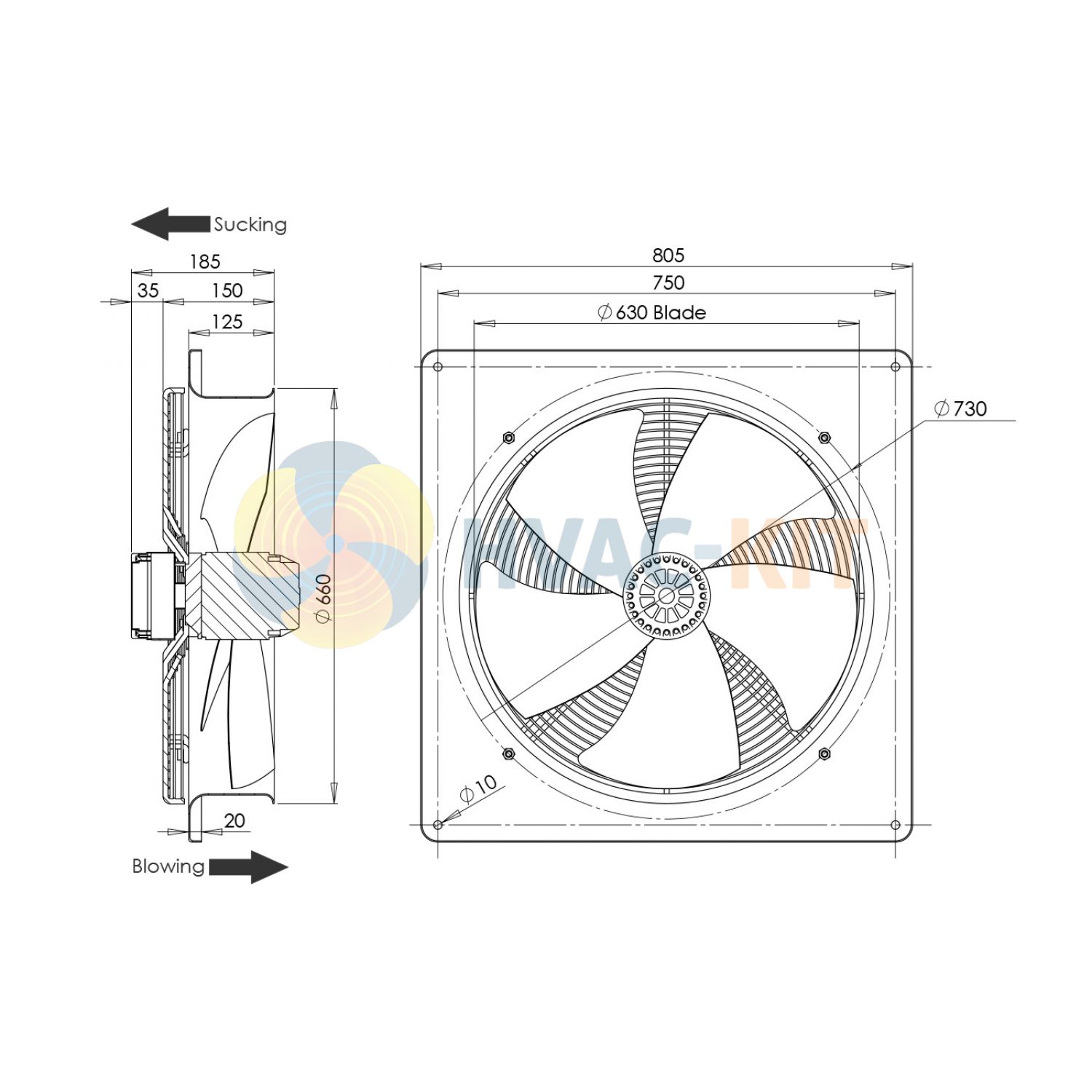

The PF-8-300-630-25S is a single phase (230V 50Hz) sucker 8 Pole (650rpm) plate mounted 550mm axial fan. Mounted with 4 mountings on wall plate (750mm Mtg Ctrs) and supplied with terminal box. A fan assembly offering superb build quality by Remco.
- Blade Diameter : 630mm
- Supply/Voltage : Single Phase (230V, 50Hz)
- Nominal Run Speed (RPM) : 8 Pole (650rpm)
- Part Number : PF-8-300-630-25S_31
- Connection Type : Terminal Box
- Airflow Direction : Sucker
- Air Volume (m3/hr) : 7200
- Specific Mounting Details : 4 Mountings on Wall Plate (750mm Mtg Ctrs)
£515.52 + VAT
The PF-8-300-630-25S is a single phase (230V 50Hz) sucker 8 Pole (650rpm) plate mounted 550mm axial fan. Mounted with 4 mountings on wall plate (750mm Mtg Ctrs) and supplied with terminal box. A fan assembly offering superb build quality by Remco. The PF-8-300-630-25S is a single phase (230V 50Hz) sucker 8 Pole (650rpm) plate mounted 550mm axial fan. Mounted with 4 mountings on wall plate (750mm Mtg Ctrs) and supplied with terminal box. A fan assembly offering superb build quality by Remco.
| Airflow Direction | |
|---|---|
| Blade Diameter | |
| Brand | |
| Connection Type | |
| Nominal Run Speed (RPM) | |
| Product Category | |
| Supply/Voltage |
Specification for: 630mm Plate Mounted Axial Fan Sucker 1 ph
| Air Volume (m3/hr) | 7200 |
| Airflow Direction | Sucker |
| Ambient Temperature | -30°c to +60°c |
| Blade Diameter | 630mm |
| Brand | Remco |
| Connection Type | Terminal Box |
| Insulation Class | Class B (130°C) |
| IP Rating | IP54 |
| Nominal Run Speed (RPM) | 8 Pole (650rpm) |
| Part Number | PF-8-300-630-25S_31 |
| Run Cap Value (mfd) | 6MFD |
| Specific Mounting Details | 4 Mountings on Wall Plate (750mm Mtg Ctrs) |
| Supply/Voltage | Single Phase (230V 50Hz) |
| Watts Input | 300 |
| Width of Assembly | 805mm |
