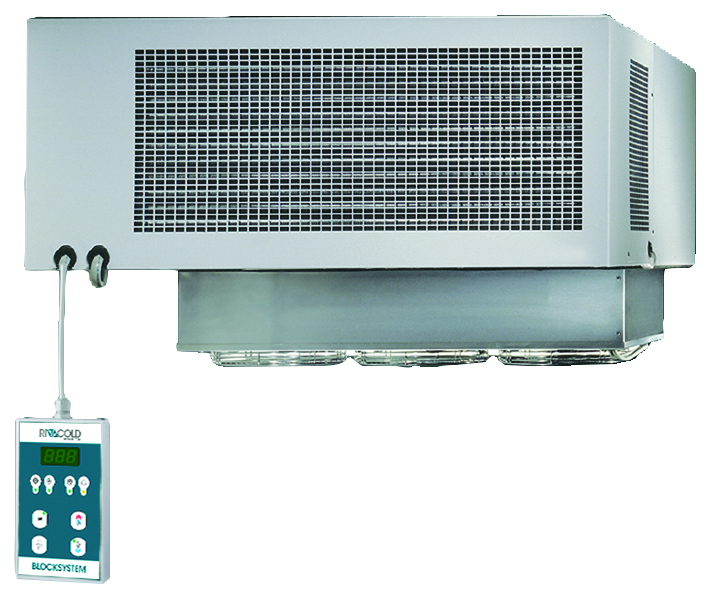

SFM016 P001 Rivacold Ceiling Mounted Chiller 1ph- Nom: 1811 W
Ref: 270904
This Rivacold SFM016P001 has Self-supporting casing in zinc-plated metal sheet, which is coated with epoxy powder and easily removable panels for fast access to components during inspection or maintenance operations
Cutting edge R290 based Ceiling mounted packaged systems
- R290 Refrigerant
- Energy Saving
- Easy Installation
- Remote Electronic Controls
- Nominal Duty : 1811 W
- Refrigerant : R290
- Application : Chiller
£2,528.75 + VAT
Ordering is only available to Trade Customers
This Rivacold SFM016P001 has Self-supporting casing in zinc-plated metal sheet, which is coated with epoxy powder and easily removable panels for fast access to components during inspection or maintenance operations
| Application | |
|---|---|
| Brand | |
| Nominal Duty | |
| Product Category | |
| Refrigerant |
Specification for: SFM016 P001 Rivacold Ceiling Mounted Chiller 1ph- Nom: 1811 W
| Air throw | 3.50 m |
| Application | Chiller |
| Compressor brand | EMBRACO |
| Compressor no. | 1 |
| Compressor type | Hermetic |
| Compressor voltage | 220-240/1/50 |
| Condenser air flow | 1116 m ³/h |
| Condenser fan blade diameter | 254 mm |
| Condenser fan-motors no. | 2 |
| Current absorbed | 4.61 A |
| Defrost | Hot gas |
| Depth | 1000 mm |
| Duty Amb 25 °C / Room -5 °C | 1684 W |
| Duty Amb 25 °C / Room 0 °C | 1952 W |
| Duty Amb 25 °C / Room 5 °C | 2228 W |
| Duty Amb 32 °C / Room -5 °C | 1560 W |
| Duty Amb 32 °C / Room 0 °C | 1811 W |
| Duty Amb 32 °C / Room 5 °C | 2072 W |
| Duty Amb 43 °C / Room -5 °C | 1352 W |
| Duty Amb 43 °C / Room 0 °C | 1575 W |
| Duty Amb 43 °C / Room 5 °C | 1814 W |
| Evaporator air flow | 1069 m ³/h |
| Evaporator fan blade diameter | 200 mm |
| Evaporator fan-motors no. | 2 |
| Evaporator speed | Low speed |
| Exchange | Air |
| Expansion | Capillary |
| Gas | R290 |
| Height | 480 mm |
| Maximum current | 8.00 A |
| Model | SFM016P001 |
| Mounting | Ceiling |
| MPN | SFM016P001 |
| Net weight | 74 kg |
| Nominal Duty | 1811 W |
| Ped | 0 |
| Power absorbed | 878 W |
| Refrigerant | R290 |
| Series | SF |
| Type | Compact |
| Width | 930 mm |
