Leaks on a refrigeration system or heat pump have serious consequences. The system no longer provides the required cooling capacity and, in the worst case scenario, system components can be damaged. Not to mention the environmental damage and the costs incurred by your customer. You need fast, reliable measuring instruments such as the testo 316-4 leak detector in order to be able to detect even the smallest of leaks. Everything you need for professional leakage detection: the testo 316-4 set 1 with leak detector for all common refrigerants CFC, HFC, HCFC and H2, including refrigerant sensor head, case, mains unit and earphones. You will therefore be ideally equipped to carry out quick, reliable leakage detection.

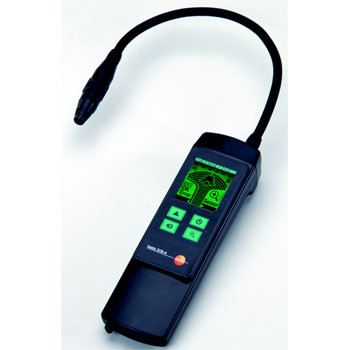

Testo 316-4 Leak detector
Ref: 163102
Leaks on a refrigeration system or heat pump have serious consequences. The system no longer provides the required cooling capacity and, in the worst case scenario, system components can be damaged. Not to mention the environmental damage and the costs incurred by your customer. You need fast, reliable measuring instruments such as the testo 316-4 leak detector in order to be able to detect even the smallest of leaks. Everything you need for professional leakage detection: the testo 316-4 set 1 with leak detector for all common refrigerants CFC, HFC, HCFC and H2, including refrigerant sensor head, case, mains unit and earphones. You will therefore be ideally equipped to carry out quick, reliable leakage detection.
- Extremely high sensitivity of 3g/a enables detection of even the smallest leaks
- Visual and acoustic alarm for optimum leakage detection
- Permanent sensor check, ensuring that your work is both safe and fast
- Earplug connection for safe leakage detection in loud environments
- An all-rounder in leak detection: the testo 316-4 leak detector (set 1) is a fast, reliable leak detector for all common refrigerants
- Practical sensor technology: the leak detector`s sensor is permanently monitored and displays malfunctions or contaminations on the screen. The use of test leaks is therefore no longer necessary. If dirty, the sensor can be easily cleaned and is then
- High sensitivity: its extremely high sensitivity of 3g/a in accordance with EN 14624 enables reliable detection of even the smallest leaks. The drag pointer function indicates maximum leakages, making it easier to locate leaks
- Reliable warning functions: if a leak is found, the display changes from green
| Brand | |
|---|---|
| Product Category |
Specification for: Testo 316-4 Leak detector
| Alarm function | Optical; audible |
| Battery life | 6 h (Continuous operation) |
| Battery type | 1 battery block (6 cells NiMh) |
| Detectable | R134a; R22; R404A; H and all common refrigerants such as CFC HCFC HFC NH (separate sensor head) |
| Dimensions | 190 x 57 x 42 mm |

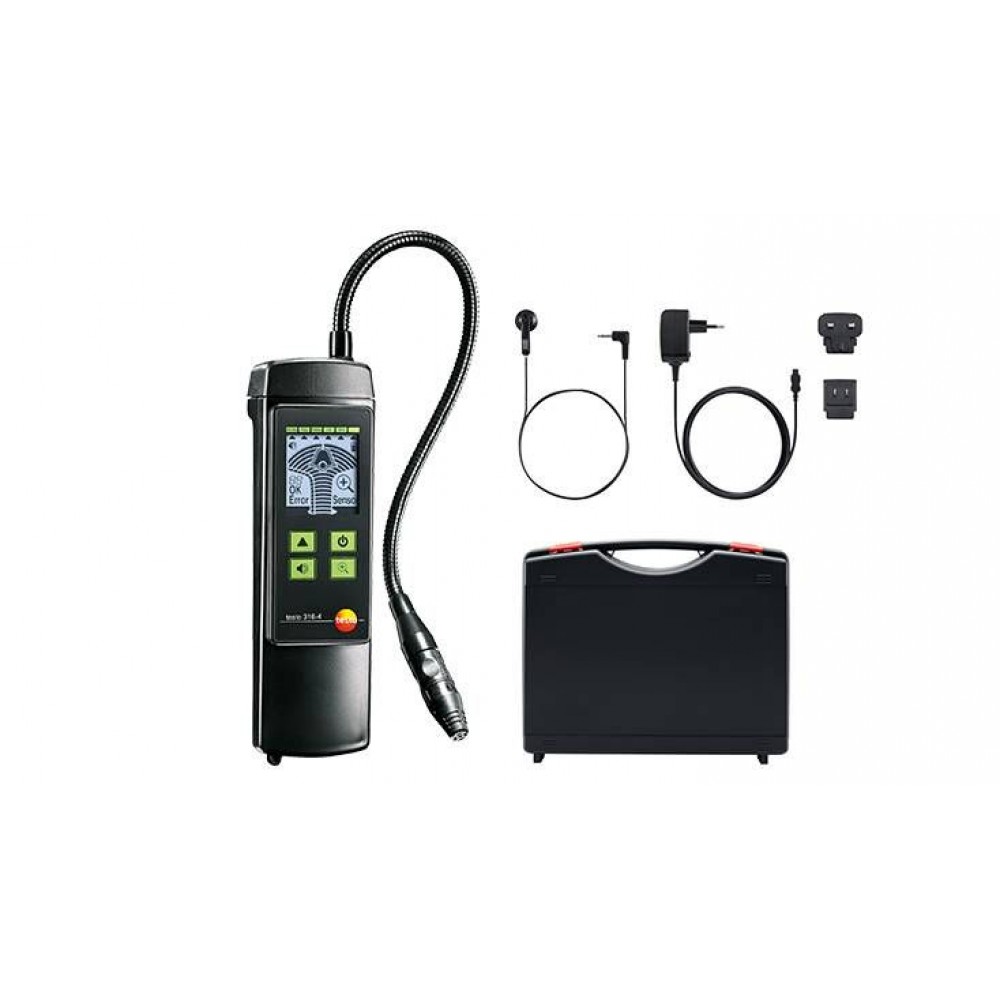

| In Box | testo 316-4 leak detector including refrigerant sensor head case mains unit and earphones. |
| Leakage alarm | optical and audible alarm |
| Length of gooseneck | 370 mm |
| MPN | 0563 3164 |
| Operating humidity | 20 to 80 %RH |
| Operating temperature | -20 to +50 C |
| Product colour | Black |
| Range | Refrigeration |
| Reaction time | |
| Sensitivity | 3 g/a |
| Standards | EN 14624:2012 |
| Start-up time | |
| Storage temperature | -25 to +70 C |
| Type | Leak Testing |
| Weight | 348 g |
