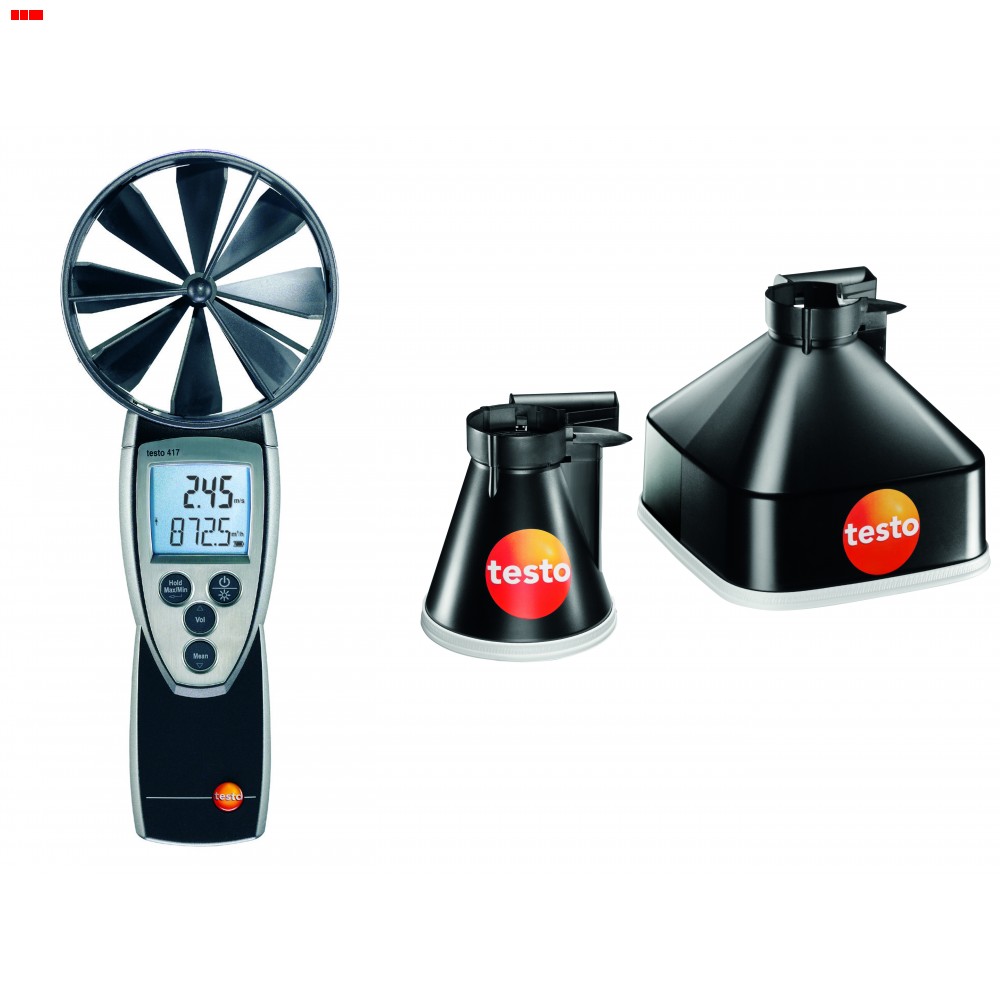

testo 417 – Vane Anemometer (plus Funnel set)
Ref: 198002

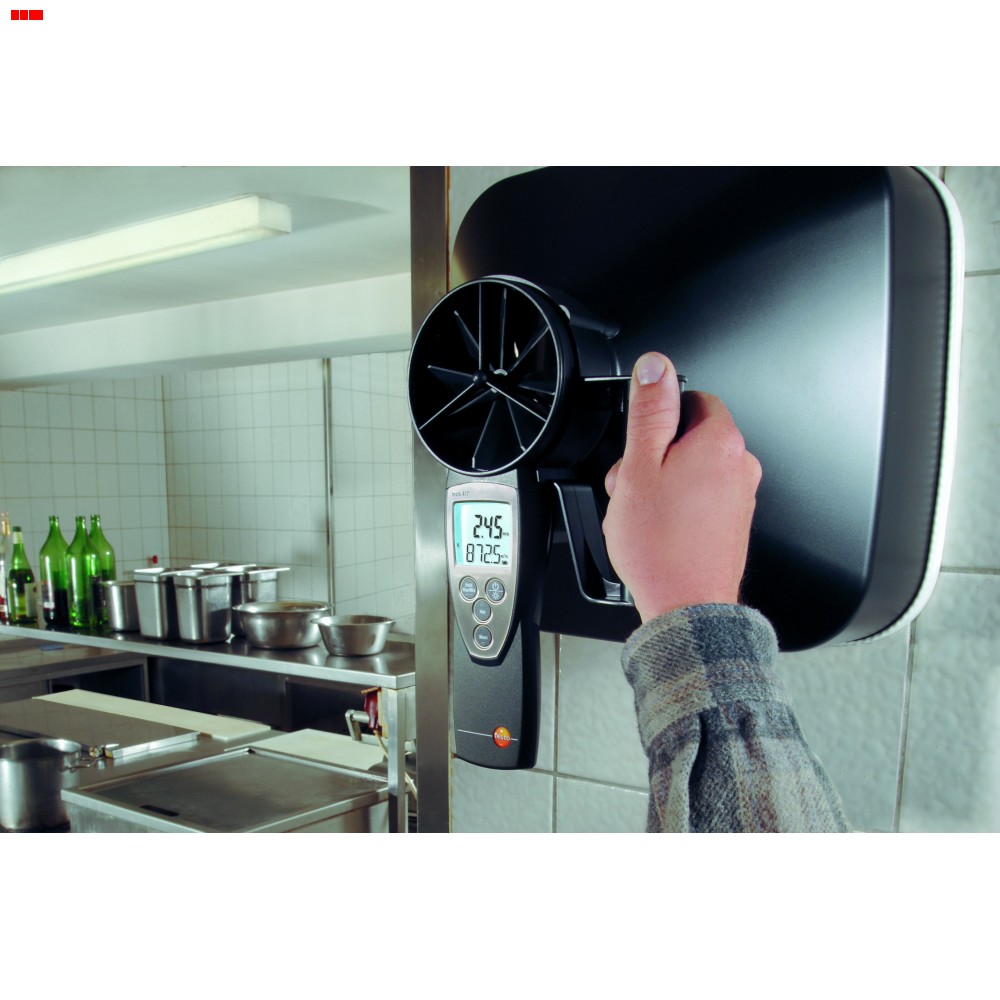

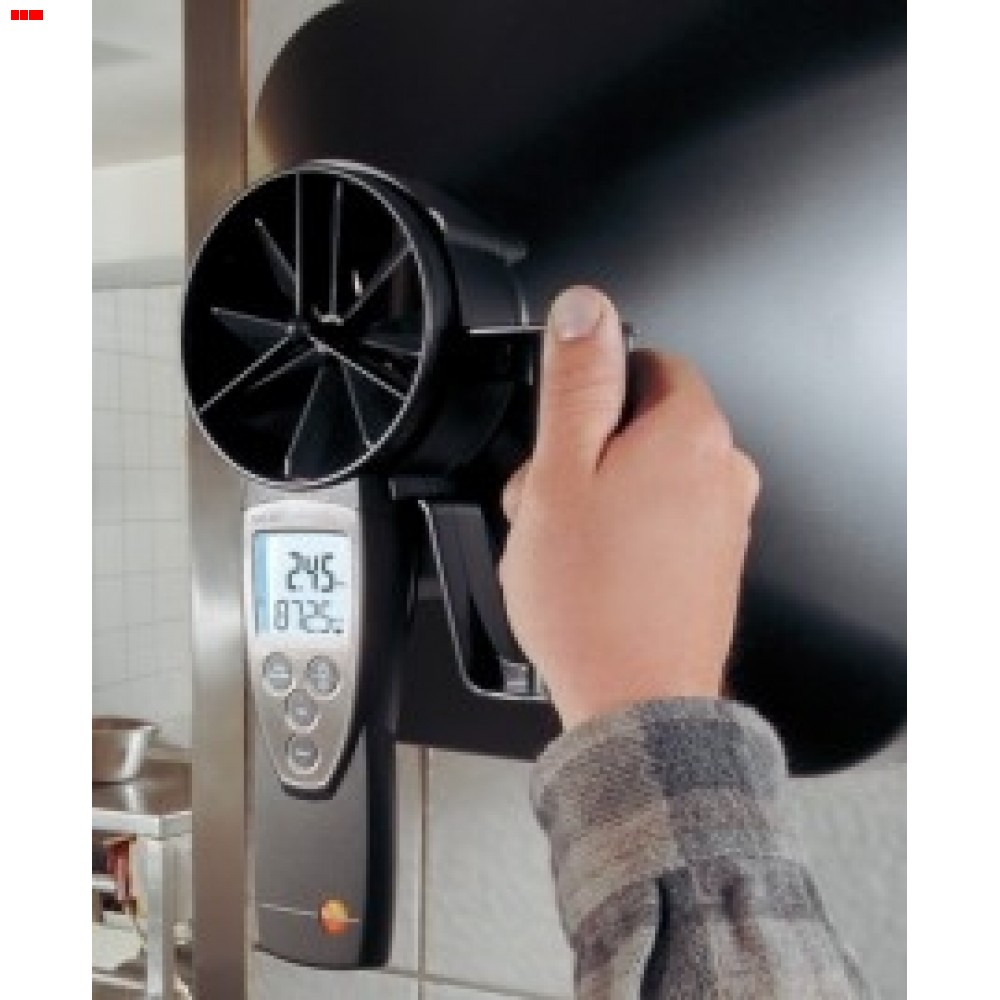

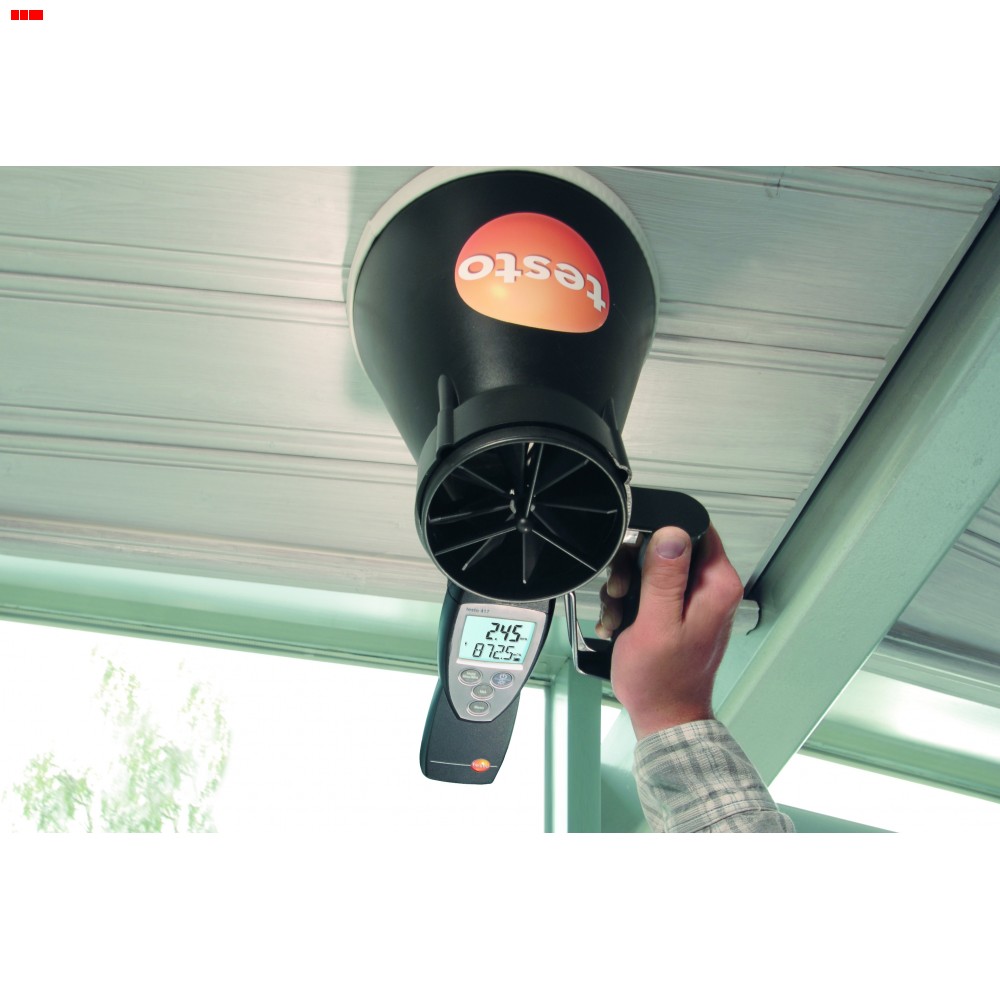

Make sure you get the testo 417 vane anemometer with an integrated 100 mm vane, in a set that includes two measurement funnels and other accessories. This will mean you are ideally equipped for volumetric flow measurement at ventilation grilles and poppet valves.
- Determining the volume flow by funnel measurement
- testo 417 vane anemometer for measuring flow velocity, volumetric flow and temperature
- Important accessories included in the set: measurement funnels for poppet valves and ventilation grilles, along with a bag for storage
- Measurement of flow velocity
- Availability of different attachable measurement funnels
- Flow direction detection
£389.00 + VAT
Ordering is only available to Trade Customers
Make sure you get the testo 417 vane anemometer with an integrated 100 mm vane, in a set that includes two measurement funnels and other accessories. This will mean you are ideally equipped for volumetric flow measurement at ventilation grilles and poppet valves.
Specification for: testo 417 – Vane Anemometer (plus Funnel set)
| Accuracy | (0.1 m/s + 1.5 % of mv) |
| Battery life | 50 h |
| Battery type | 9V block battery 6F22 |
| Description1 | The measurement of flow velocity and the correct calculation of volumetric flow at ventilation outlets can be a challenge. The turbulence created here and differing flow directions make correct measurement more difficult. |
| Description2 | This set means you are ready to get started: the testo 417 vane anemometer is simply attached to the testovent 417 measurement funnel for measurement at ventilation grilles or poppet valves. Once you have selected the measurement funnel factor on the |
| Dimensions | 277 x 105 x 45 mm |
| In Box | testo 417 - Vane Anemometer plus Funnel set (0563 4170) |
| Measuring range | 0 to +99999 m/h 0 to +440 m/h (testo 417 in combination with funnel set (0563 4170)) 0.1 to +200 m/h preferred 01 to 100 m/h (testo 417 in combination with funnel & flow straightener (0554 |
| MPN | 0563 4171 |
| Operating temperature | 0 to +50 C |
| Product-/housing material | ABS |
| Range | Climate |
| Resolution | 0.1m/h (0 to +99.9 m/h) 1 m/h (+100 to +99999 m/h) |
| Storage temperature | -40 to +70 C |
| Type | Anemometer |
| Weight | 230 g |
