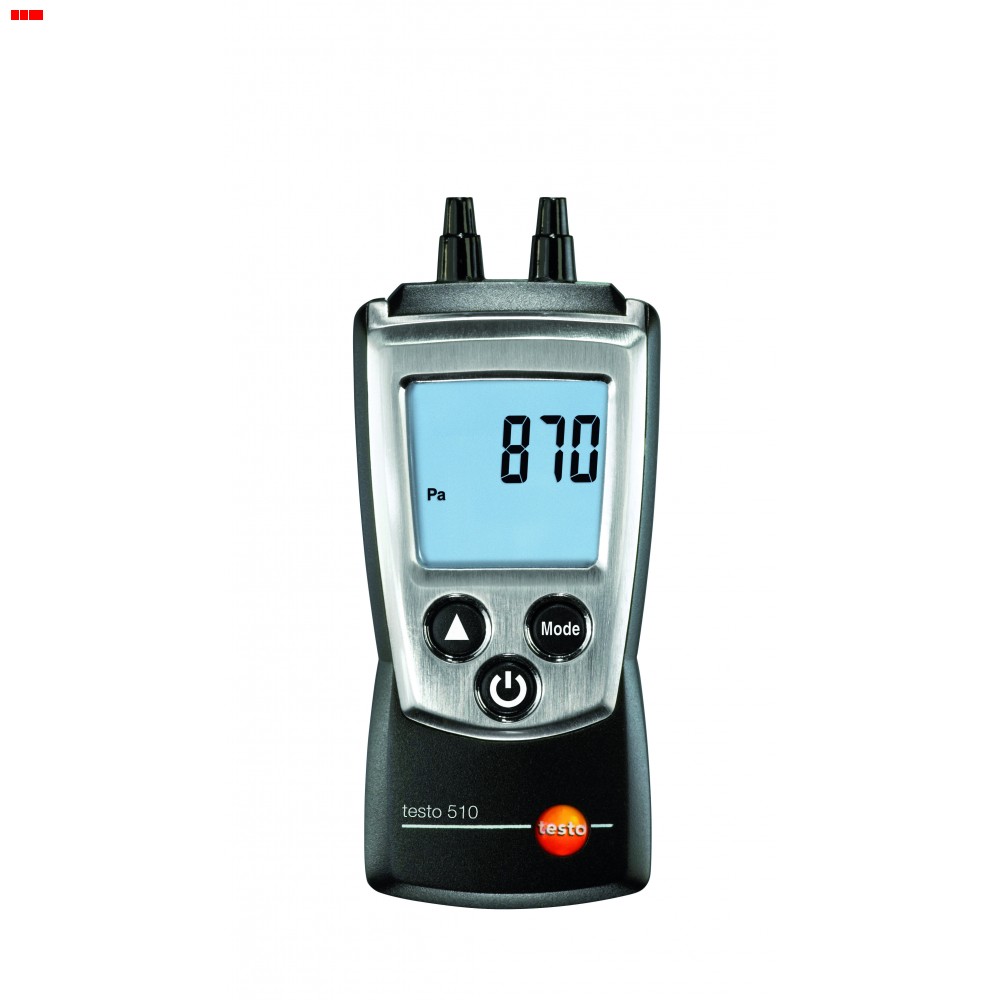

testo 510 – Differential Pressure Meter

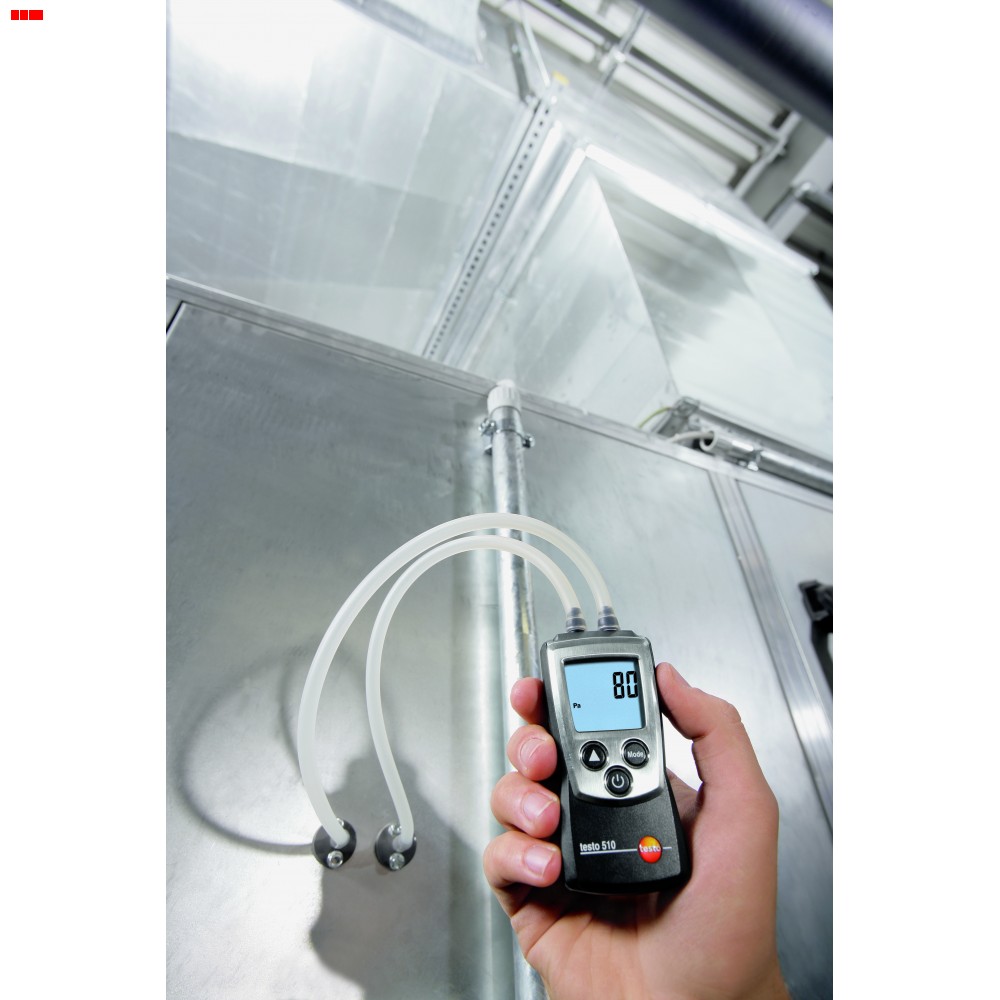

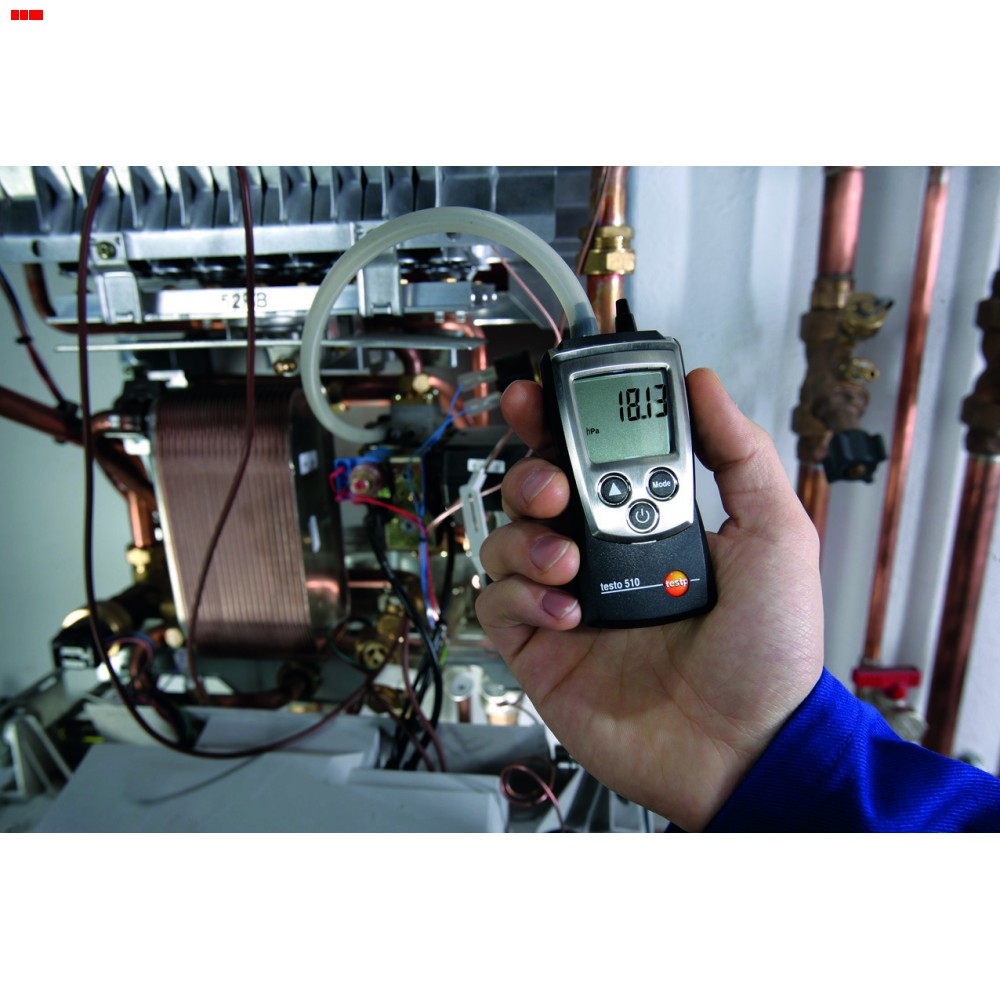

Differential pressure measurement on gas hot water heaters or on filters of air conditioning systems, and also flow measurements in ventilation ducts using a Pitot tube: the compact testo 510 differential pressure measuring instrument, which comes with a silicone connection hose and other useful accessories, can help you maintain and install systems in the sanitary and HVAC sector.
- Pocket-sized temperature and air density-compensated differential pressure measurement
- Illuminated display
- Magnets on the rear allow hands-free work
- 50 hours of battery life
- 10 selectable units
- Flow measurement possible with a Pitot tube (available as an option)
- Precise: the differential pressure measurement has temperature and air density compensation for accurate readings
- Uncomplicated: small, handy and easy to operate with just three buttons
- Clever: you can work with your hands free thanks to magnets on the rear of the instrument. When there is poor visibility, such as in dark surroundings, the illuminated display makes it easier for you to work
- Reliable: a belt pouch and plug-on protective cap mean the differential pressure measuring instrument can be safely stowed away and it is also well-secured during measurement thanks to a wrist strap
- Ready to go: the silicone connection hose is included in the testo 510 set. So you c
£146.25 + VAT
Differential pressure measurement on gas hot water heaters or on filters of air conditioning systems, and also flow measurements in ventilation ducts using a Pitot tube: the compact testo 510 differential pressure measuring instrument, which comes with a silicone connection hose and other useful accessories, can help you maintain and install systems in the sanitary and HVAC sector. The differential pressure meter is ideally suitable for pressure measurements in the range 0 to 100 hPa. testo 510s differential pressure measurement is temperature-compensated for accurate readings. Readings can be displayed in Pascal over the whole measurement range. Magnets at the back of the instrument enable hands-free operation, for instance, while adjusting gas heaters.
– Display in Pascal possible over entire measurement range
– Accuracy: ñ0.03ÿmbar (0 to 0.30 mbar) / ñ0.05ÿmbar (0.31 to 1.00 mbar)
– Temperature compensation
– Magnetic rear permits free-hand work
– Flow velocity measurement with Pitot tube (Pitot tube not included in delivery)
– Air density compensation
– Protective cap for safe storage
– Including wrist strap and belt holder
– Backlit display
– Switchable units: hPa, mbar, Pa mmH2O, mmHg, inH2O, inHg, psi, m/s, fpm
| Brand | |
|---|---|
| Product Category |
Specification for: testo 510 – Differential Pressure Meter
| Accuracy | 0.03 hPa (0 to 0.30 hPa) 0.05 hPa (0.31 to 1.00 hPa) (0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa) |
| Battery life | 50 h (average without display illumination) |
| Battery type | 2 AAA micro batteries |
| Dimensions | 119 x 46 x 25 mm |
| In Box | testo 510 - Differential Pressure Meter protection cap belt holder 2 x connection hoses wrist strap calibration protocol |
| Maximal static pressure | 500 mbar |
| Measuring range | 0 to 100 hPa |
| Measuring rate | 0.5 s |
| MPN | 0563 0510 |
| Operating temperature | 0 to +50 C |
| Protection class | IP40 |
| Range | Heating |
| Resolution | 0.01 hPa |
| Seceltable units | hPa mbar Pa mmH2O inHO inHg mmHg psi m/s fpm |
| Storage temperature | -40 to +70 C |
| Type | Gas Pressure |
| Weight | 90 g (with batteries and protective cap) |
