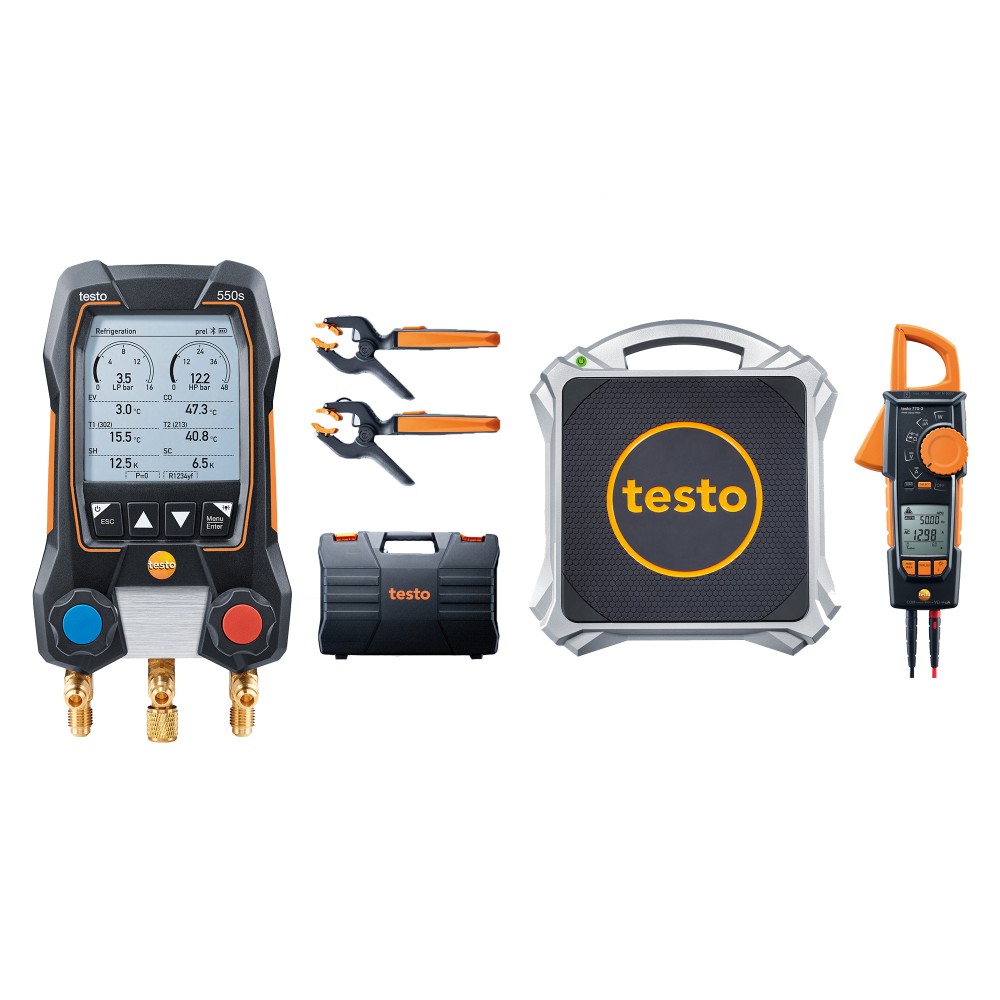

Testo 550s Heat Pump Kit
With this kit, youll be ready to start your measurements in the commissioning, servicing and maintenance of heat pumps, refrigeration, or air-conditioning systems straight away:
- Large graphic display allows all measurement values at a glance. IP54 protection for use outdoors.
- Test menu sequences for pressure leak test, vacuum, discharge line temperature, and target superheat(note : requires testo 552i vacuum probe for vacuum measurement)
- Suitable for use on monobloc or split heat pump systems
- Supplied with testo 770-3 clamp meter for compressor current testing and testo 560i digital scales for refrigerant charging
- Simple digital documentation and on-site reporting via bluetooth coonnection to free Testo Smart App.
£719.14 + VAT
With this kit, youll be ready to start your measurements in the commissioning, servicing and maintenance of heat pumps, refrigeration, or air-conditioning systems straight away: Your Benefits:
Large graphic display allows all measurement values at a glance. IP54 protection for use outdoors.
Test menu sequences for pressure leak test, vacuum, discharge line temperature, and target superheat
(note – requires testo 552i vacuum probe for vacuum measurement)
Suitable for use on monobloc or split heat pump systems
Supplied with testo 770-3 clamp meter for compressor current testing and testo 560i digital scales for refrigerant charging
Simple digital documentation and on-site reporting via bluetooth coonnection to free Testo Smart App.
| Brand | |
|---|---|
| Product Category |
Specification for: Testo 550s Heat Pump Kit
| Accuracy | Operating temperature +22 C: (10 g+ 0.03 %rdg) (0 to 30 kg) (10 g+ 0.05 %rdg) (30 to 100 kg) |
| Battery life | > 70 h at +25 C |
| Battery type | 4 x type AA batteries |
| Data transfer | Bluetooth |
| Dimensions | 310 x 287 x 58 mm (LxWxH) |
| In Box | testo 550s digital 2-way manifold (without sightglass) including batteries (4 x AA) and calibration protocol. Bluetooth connection use with testo Smart App (free download). 2 x testo 115i bluetooth pipe clamp thermometers 1 x testo 770-3 clampmeter |
| Interface | Bluetooth 4.2 |
| Measuring range | 0 to 100 kg |
| MPN | 300564 5502 02 |
| Operating humidity | 0 to 80 %RH |
| Operating temperature | -10 to +50 C |
| Product colour | black/orange |
| Product-/housing material | Plastic |
| Protection class | IP44 |
| Radio range | 30 m |
| Refrigerant | A2L / A3 compatibel |
| Resolution | 0.01 kg |
| Storage temperature | -10 to +50 C |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| WebDescription | With this kit youll be ready to start your measurements in the commissioning servicing and maintenance of heat pumps refrigeration or air-conditioning systems straight away: You will get the testo 550s smart digital manifold with Bluetooth and 2- |
| Weight | 4.36 kg (incl. batteries and bag) |
Downloads for: Testo 550s Heat Pump Kit
- Specification
- Data sheet testo 115i
- testo Smart Probes FAQ
- Data sheet testo 560i
- UK Declaration of Conformity testo 115i
- Instruction manual testo Smart Probes
- Technical Documentation A2L/A2/A3 refrigerant
- Instruction manual testo 560i - testo Smart V
- Short manual testo 560i
- Short manual testo Smart Valve
- UK declaration of conformity testo 560i
- Technical Documentation A2L/A2/A3 refrigerant testo 560i
