Testo 558s Heat Pump Kit + Hoses

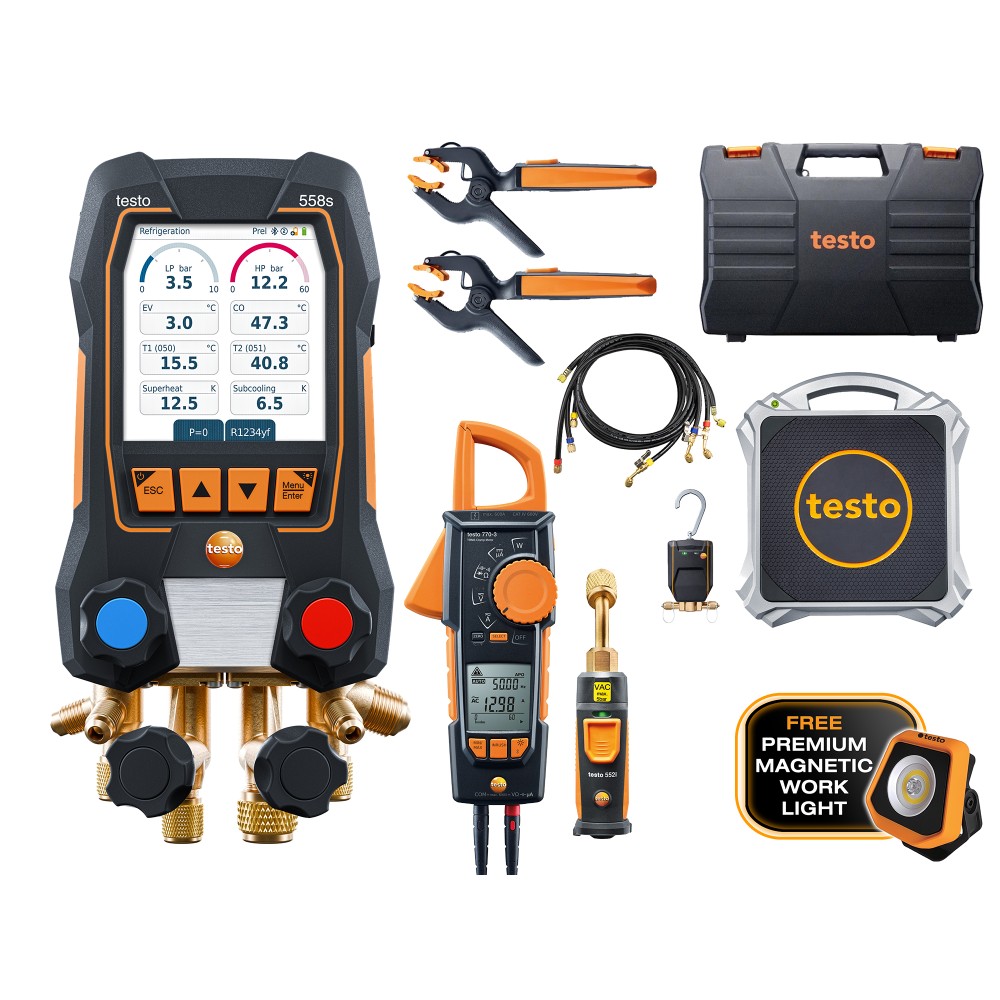

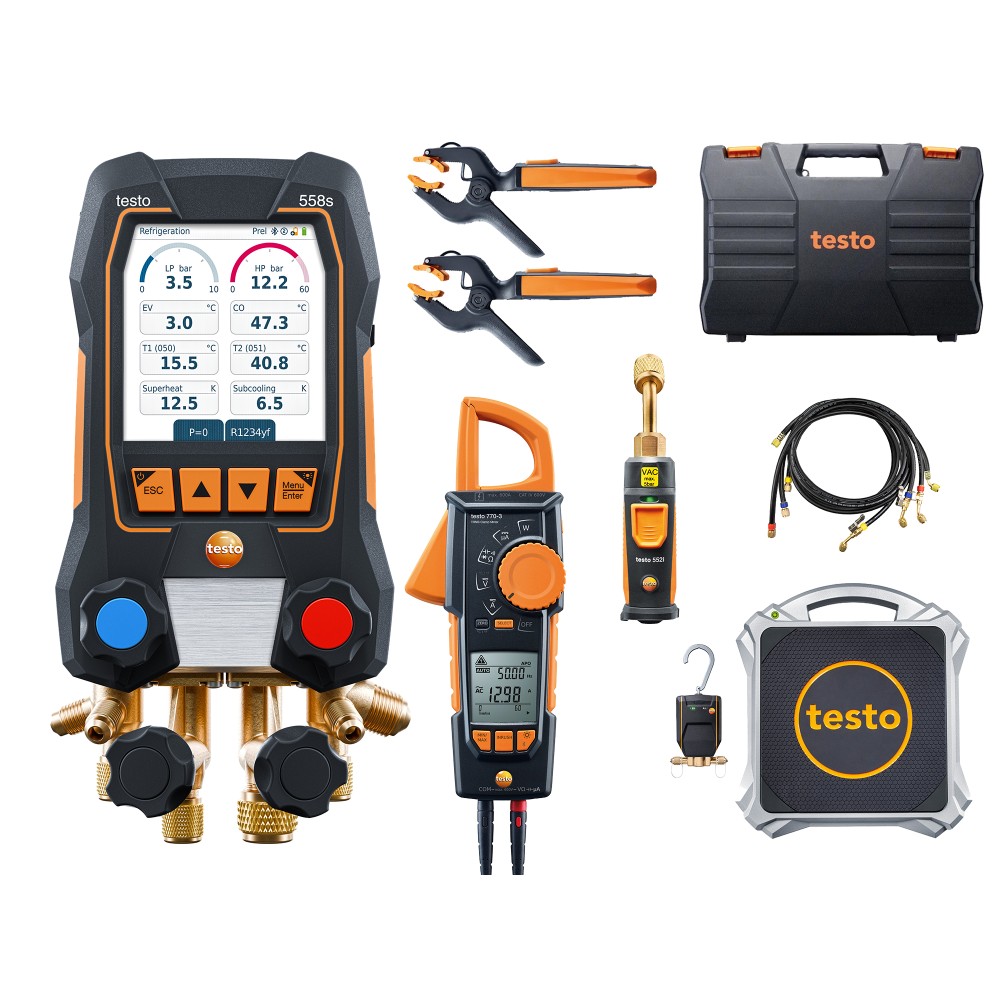

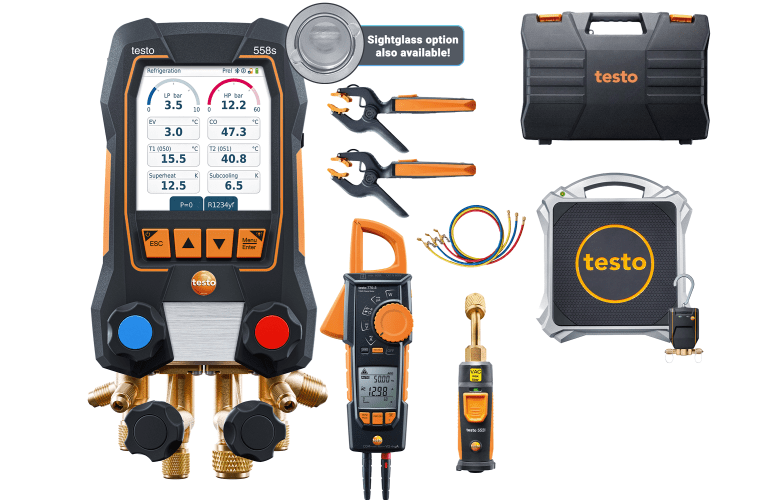

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away with the testo 558s Heat Pump Kit + hoses. This all-in-one solution includes the testo 558s digital manifold, 2x testo 115i temperature clamps, testo 552i vacuum probe, testo 560i refrigerant scale with valve, testo 770-3 clamp meter, and our hose set, giving you the ideal tools for precise and efficient servicing and maintenance.

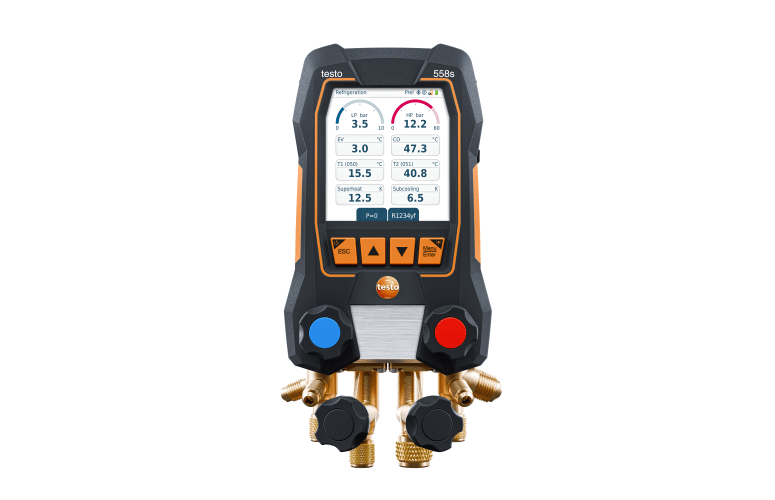

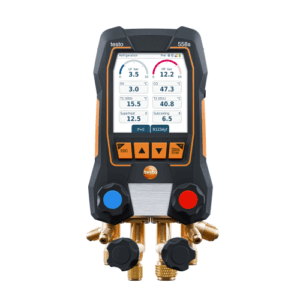

The testo 558s features intuitive touchscreen operation, clear measurement graphs on a large color display, and key-based controls for easy useeven with gloves. Designed for maximum flexibility, it supports Bluetooth connectivity to wireless temperature and vacuum probes, enabling seamless data transfer and real-time monitoring.
With A3 and A2L refrigerant compatibility, an IP54-rated rugged design, and a hybrid power system using both rechargeable and non-rechargeable batteries, the testo 558s Heat Pump Kit is built for every challenge.,
- USB-C cable
- Transport case
- testo Smart App (free download)
- testo 558s digital 4-way manifold
- Instruction manual
- Calibration protocol
- 2 x testo 115i wireless clamp thermometers
- 1 x testo 770-3 clamp meter
- 1 x testo 560i refrigerant scale with valve
- 1 x testo 552i wireless vacuum probe
- 1 x 4-piece hose set with valve
£988.69 + VAT
Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away with the testo 558s Heat Pump Kit + hoses. This all-in-one solution includes the testo 558s digital manifold, 2x testo 115i temperature clamps, testo 552i vacuum probe, testo 560i refrigerant scale with valve, testo 770-3 clamp meter, and our hose set, giving you the ideal tools for precise and efficient servicing and maintenance.
The testo 558s features intuitive touchscreen operation, clear measurement graphs on a large color display, and key-based controls for easy useeven with gloves. Designed for maximum flexibility, it supports Bluetooth connectivity to wireless temperature and vacuum probes, enabling seamless data transfer and real-time monitoring.

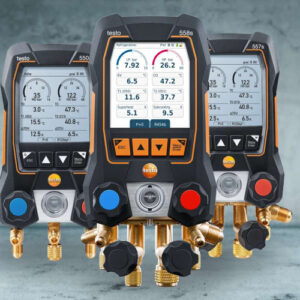

With A3 and A2L refrigerant compatibility, an IP54-rated rugged design, and a hybrid power system using both rechargeable and non-rechargeable batteries, the testo 558s Heat Pump Kit is built for every challenge., We are excited to announce the launch of our new digital manifold â the testo 558s. This manifold will be replacing BOTH the testo 557s & testo 570s
This will be a part of our ongoing winter refrigeration promo âand all kits below will be valid for a FREE Testo premium magnetic work light until 30/04/2025 â all products will come packaged with the gift
Features of the Testo 558s:
Capacitive touchscreen
Additionally, the option to operate the device using buttons remains available for working with gloves
Trend curves displaying data of past 30 minutes
Graphical measurement visualisation for easy evaluation and reliable analysis
Every application in one device Thanks to wireless connectivity across the entire portfolio
Full control over your systems
Made for every refrigerant
Compatible with flammable A3 and A2L refrigerants
96+ refrigerants stored in the system
Favourites Selection of the most common refrigerants in the manifold
New emerging refrigerants are added through OTA updates
Efficient documentation with the testo Smart App
| Brand | |
|---|---|
| Product Category |
Specification for: Testo 558s Heat Pump Kit + Hoses
| Absolute Pressure - Accuracy | ±(1 ±10 micron + 10 % of mv (100 to 1000 micron) |
| Absolute Pressure - Measuring range | 0 to 26.66 mbar /0 to 20000 micron |
| Absolute Pressure - Overload | absolute: 6.0 bar / 87 psi(relative: 5.0 bar / 72 psi) |
| Absolute Pressure - Resolution | 100 micron (2000 to 5000 micron) /1 micron (0 to 1000 micron) /10 micron (1000 to 2000 micron) / |
| AC current - Accuracy | ± (2 % of mv + 5 Digit) (clamp)± (1.5 % of mv + 5 Digit) (measuring cables) |
| AC current - Measuring range | 0.01 to 600.0 A (clamp)0.1 to 600.0 ?A (measuring cables) |
| AC current - Resolution | 0.01 A (clamp)0.1 ?A (measuring cables) |
| AC voltage - Accuracy | ± (1 % of mv + 3 Digit) |
| AC voltage - Measuring range | 1.0 mV to 1000.0 V |
| AC voltage - Resolution | max. 1 mV |
| Accuracy | Operating temperature +22 °C:? ±(10 g+ 0.03 %rdg) (0 to 30 kg)? ±(10 g+ 0.05 %rdg) (30 to 100 kg) |
| Active Power - Accuracy | ± (5 % of mv + 5 Digit) |
| Active Power - Measuring range | 0.1 W to 600 kW |
| Active Power - Resolution | 0.1 W |
| Apparent Power - Accuracy | ± 1 Digit |
| Apparent Power - Measuring range | 0.1 VA to 600.0 kVA |
| Apparent Power - Resolution | 0.1 VA |
| Authorizations | CSA; CE |
| Auto-off | 10 min* |
| Auto-off instrument | 10 min |
| Battery life | >60 hrs + 3000 valve operations |
| Battery type | 9 V (6LR61) |
| Capacitance - Accuracy | ± (1.5 % of mv + 5 Digit) |
| Capacitance - Measuring range | 0.001 ?F to 60000.00 ?F |
| Capacitance - Resolution | max. 0.01 nF |
| Connectable probes | 1 x temperature probe (adapter required for type K thermocouples) |
| Connection | 7/16" UNF |
| Data transfer | Bluetooth® |
| DC current - Accuracy | ± (2 % of mv + 5 Digit) (measuring cables)± (2 % of mv + 5 Digit) (clamp) |
| DC current - Measuring range | 0.01 to 600.0 A (clamp)0.1 to 600.0 ?A (measuring cables) |
| DC current - Resolution | 0.1 (clamp)0.1 (measuring cables) |
| DC voltage - Accuracy | ± (0.8 % of mv + 3 Digit) |
| DC voltage - Measuring range | 1.0 to 1000.0 V |
| DC voltage - Resolution | max. 1 mV |
| Description_1 | Heat Pump Kit + hoses including manifold temperature clamps vacuum gauge refrigerant scales clamp meter and 4-piece hose set. |
| Description_10 | 1 x testo 560i refrigerant scale with valve |
| Description_11 | 1 x testo 770-3 clamp meter |
| Description_12 | 1 x 4-piece hose set with valve |
| Description_13 | Transport case |
| Description_14 | USB-C cable |
| Description_15 | testo Smart App (free download) |
| Description_16 | Calibration protocol |
| Description_17 | Instruction manual |
| Description_2 | Intuitive App Feel with touchscreen and clear visualisation of readings. |
| Description_3 | Hybrid Charging System with non-rechargeable batteries & Li-ion battery (charged via USB-C). |
| Description_4 | Maximum Safety with A3 & A2L compatibility. |
| Description_5 | Data Logging with readings recorded up to 30min as trend curves. Optionally extendable up to 72h. |
| Description_6 | Extreme Precision with 0.25% full-scale accuracy. |
| Description_7 | testo 558s digital 4-way manifold |
| Description_8 | 2 x testo 115i wireless clamp thermometers |
| Description_9 | 1 x testo 552i wireless vacuum probe |
| Dimensions | 95 x 119 x 47 mm (LxWxH) |
| Direct current DC Voltage - Accuracy | ± 1 Digit |
| Direct current DC Voltage - Measuring range | 0.1 W to 600.0 kW |
| Direct current DC Voltage - Resolution | max. 0.1 W |
| Display size | 2 lines |
| Display type | LCD (Liquid Crystal Display) |
| Frequency - Accuracy | ± (1 % of mv + 1 Digit) |
| Frequency - Measuring range | 0.00 Hz to -10 kHz |
| Frequency - Resolution | max. 0.1 Hz |
| Instrument Measurement Functions - Autom. measurement parameter detection | yes |
| Instrument Measurement Functions - Bluetooth | yes |
| Instrument Measurement Functions - Continuity testing | yes |
| Instrument Measurement Functions - Diode test | yes |
| Instrument Measurement Functions - Display (counts) | 6000 |
| Instrument Measurement Functions - Display ligthing | yes |
| Instrument Measurement Functions - Hold | yes |
| Instrument Measurement Functions - Inrush current measurement | yes |
| Instrument Measurement Functions - MinMax | yes |
| Instrument Measurement Functions - Power Measurement | yes |
| Instrument Measurement Functions - Temperature measurement with adapter | yes |
| Instrument Measurement Functions - True RMS | yes |
| Instrument Measurement Functions - ?A current measuring range | yes |
| Interface | Bluetooth® 4.2 |
| Internal_resistance | 11 MOhm (AC / DC) |
| Maximum working pressure | 35 bar |
| Measuring range | 0 to 100 kg |
| MPN | 0564 5586 02 |
| Operating humidity | 0 to 80 %RH |
| Operating temperature | -10 to +50 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Power Factor - Accuracy | ± (10 % of mv + 5 Digit) |
| Power Factor - Measuring range | -1.00 to +1.00 |
| Power Factor - Resolution | 0.01 |
| Pressure measurement - Accuracy | ±0.25 % fs |
| Pressure measurement - Measuring range | -1 to 60 bar |
| Pressure measurement - Overload rel. (high pressure) | 65 bar |
| Pressure measurement - Overload rel. (low pressure) | 65 bar |
| Pressure measurement - Probe connection | 3 x 7/16" UNF + 1 x 5/8 UNF |
| Pressure measurement - Resolution | 0.01 bar |
| Product colour | black/orange; silver |
| Product-/housing material | Plastic |
| Protection class | IP54 |
| Radio range | 50 m |
| Reactive Power - Accuracy | ± (10 % of mv + 5 Digit) |
| Reactive Power - Measuring range | 0.1 to 600.0 kvar |
| Reactive Power - Resolution | 0.1 var |
| Refrigerant | A2L / A3 compatibel |
| Resistance - Accuracy | ± (1.5 % of mv + 3 Digit) |
| Resistance - Measuring range | 0.10 to 60.0 MOhm |
| Resistance - Resolution | max. 0.01 Ohm |
| Resolution | 0.01 kg |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
| Storage temperature | -10 to +50 °C |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Temperature - Accuracy | ±0.5 °C |
| Temperature - Measuring range | -50 to +150 °C |
| Temperature - NTC - Accuracy | ±1.3 °C (-20 to +85 °C) |
| Temperature - NTC - Measuring range | -40 to +150 °C |
| Temperature - NTC - Resolution | 0.1 °C |
| Temperature - Probe connection | 2 x Plug-in (NTC) |
| Temperature - Resolution | 0.1 °C |
| Temperature - TC Type K (NiCr-Ni) - Accuracy | ±1 °C (0 to +100 °C) |
| Temperature - TC Type K (NiCr-Ni) - Measuring range | -20 to +500 °C |
| Temperature - TC Type K (NiCr-Ni) - Resolution | 0.2 °C |
| Title | testo 558s - Heat pump kit with hoses |
| Weight | 570 g (incl. batteries) |
