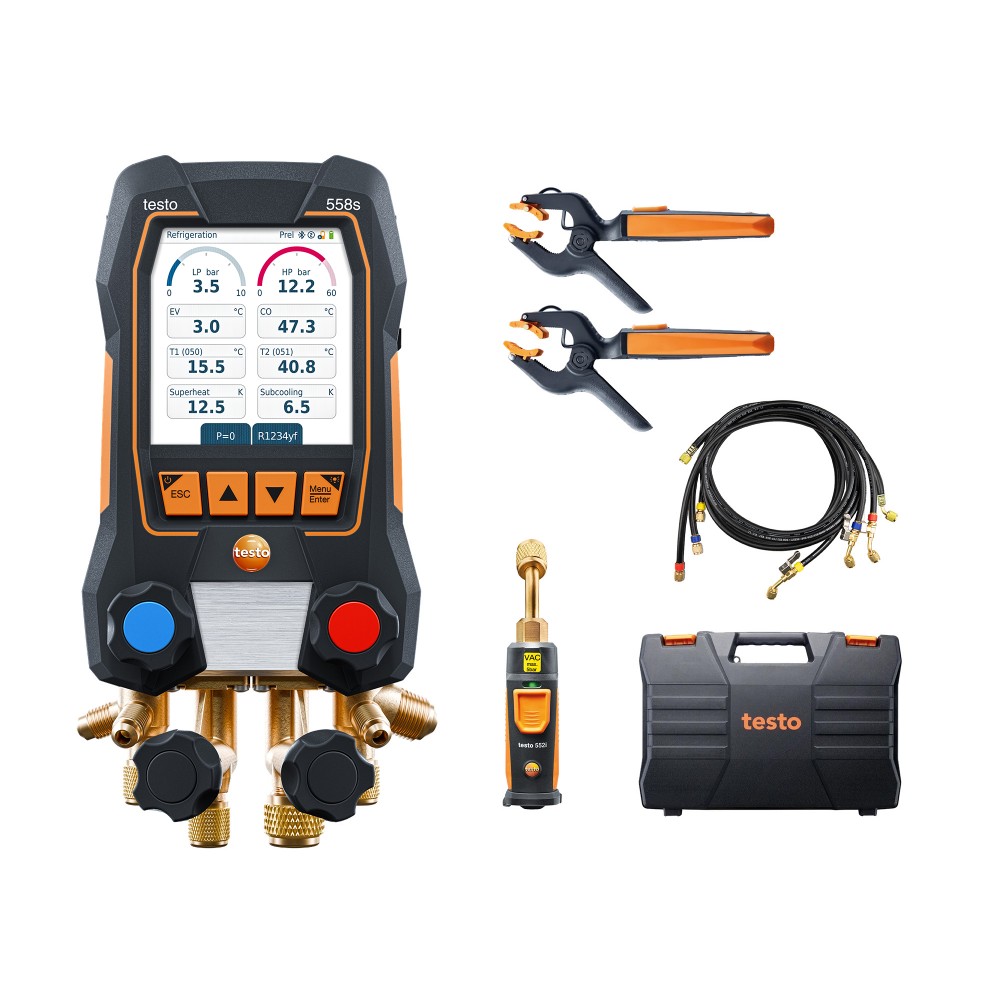

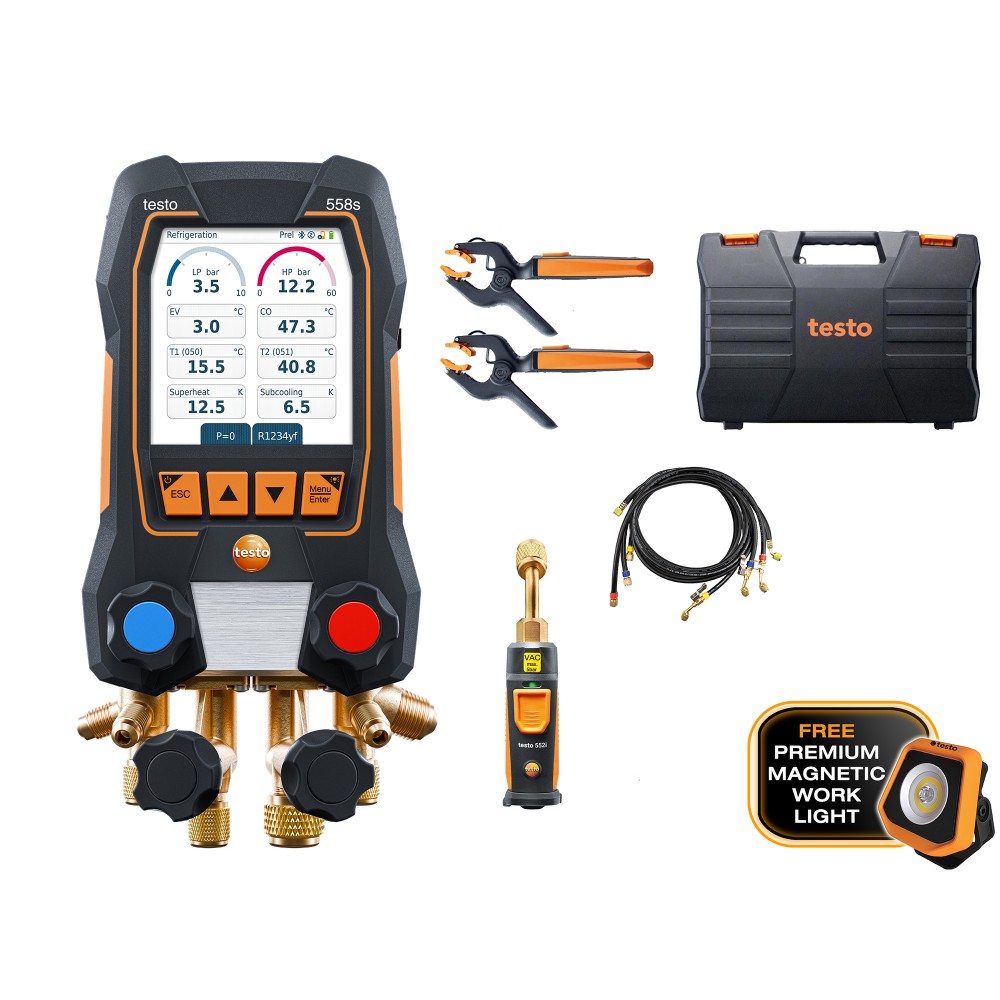

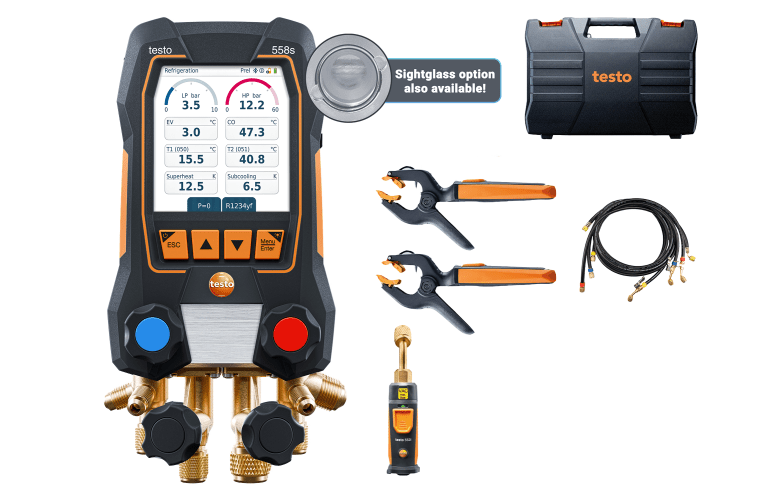

Testo 558s Smart Vacuum Kit + Hoses
Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 558s digital manifold with Bluetooth connection to the wireless temperature and vacuum probes, together with the hose set included in the kit, offers the ideal basis for carrying out everyday measuring tasks. The testo 558s offers intuitive operation thanks to its touchscreen and clear measurement graphs on a large colour display. In addition to the touchscreen, the manifold can also be operated via keys when working with gloves. Thanks to its A3 and A2L compatibility, high robustness with IP54 and hybrid charging system comprising rechargeable and non-rechargeable batteries, the manifold is ideal for every situation.,
- USB-C cable
- Transport case
- testo Smart App (free download)
- testo 558s digital 4-way manifold
- Instruction manual
- Calibration protocol
- 2 x testo 115i wireless clamp thermometers
- 1 x testo 552i wireless vacuum probe
£592.84 + VAT
Specification for: Testo 558s Smart Vacuum Kit + Hoses
| Absolute Pressure - Accuracy | ±(1 ±10 micron + 10 % of mv (100 to 1000 micron) |
| Absolute Pressure - Measuring range | 0 to 26.66 mbar /0 to 20000 micron |
| Absolute Pressure - Overload | absolute: 6.0 bar / 87 psi(relative: 5.0 bar / 72 psi) |
| Absolute Pressure - Resolution | 100 micron (2000 to 5000 micron) /1 micron (0 to 1000 micron) /10 micron (1000 to 2000 micron) / |
| Auto-off | 10 min* |
| Auto-off instrument | 10 min |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Connection | 7/16" UNF |
| Data transfer | Bluetooth® |
| Description_1 | Intuitive app feel in your manifold with touchscreen and clear visualization of readings |
| Description_10 | 3 x hose charging set with valve 1/4" - 1/4" SAE (7/16" - 7/16" UNF) |
| Description_11 | 1 x Vacuum hose 3/8" SAE (5/8" UNF) |
| Description_12 | testo Smart App (free download) |
| Description_13 | Calibration protocol |
| Description_14 | Instruction manual |
| Description_2 | Everything in one instrument: All measurement applications in one manifold and wireless connection to the entire refrigeration portfolio |
| Description_3 | A3 and A2L compatibility for maximum safety |
| Description_4 | Trend curves of readings over a 30-minute period |
| Description_5 | Full flexibility thanks to unique operability via touchscreen classic operation via keypad and testo Smart App |
| Description_6 | Always ready for use with hybrid charging system consisting of non-rechargeable batteries and rechargeable battery (USB-C) and robust thanks to protection class IP54 |
| Description_7 | testo 558s digital 4-way manifold |
| Description_8 | 2 x testo 115i wireless clamp thermometers |
| Description_9 | 1 x testo 552i wireless vacuum probe |
| Dimensions | 183 x 90 x 30 mm |
| Display type | capacitive touch display |
| Interface | Bluetooth® 4.2 |
| MPN | 0564 5583 02 |
| Operating temperature | -20 to +50 °C |
| Pressure measurement - Accuracy | ±0.25 % fs |
| Pressure measurement - Measuring range | -1 to 60 bar |
| Pressure measurement - Overload rel. (high pressure) | 65 bar |
| Pressure measurement - Overload rel. (low pressure) | 65 bar |
| Pressure measurement - Probe connection | 3 x 7/16" UNF + 1 x 5/8 UNF |
| Pressure measurement - Resolution | 0.01 bar |
| Product colour | black/orange |
| Product-/housing material | Plastic |
| Protection class | IP54 |
| Radio range | 100 m |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Temperature - Accuracy | ±0.5 °C |
| Temperature - Measuring range | -50 to +150 °C |
| Temperature - NTC - Accuracy | ±1.3 °C (-20 to +85 °C) |
| Temperature - NTC - Measuring range | -40 to +150 °C |
| Temperature - NTC - Resolution | 0.1 °C |
| Temperature - Probe connection | 2 x Plug-in (NTC) |
| Temperature - Resolution | 0.1 °C |
| Title | testo 558s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless temperature vacuum probes and hoses. |
| Weight | 127.4 g |
Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 558s digital manifold with Bluetooth connection to the wireless temperature and vacuum probes, together with the hose set included in the kit, offers the ideal basis for carrying out everyday measuring tasks. The testo 558s offers intuitive operation thanks to its touchscreen and clear measurement graphs on a large colour display. In addition to the touchscreen, the manifold can also be operated via keys when working with gloves. Thanks to its A3 and A2L compatibility, high robustness with IP54 and hybrid charging system comprising rechargeable and non-rechargeable batteries, the manifold is ideal for every situation.,
