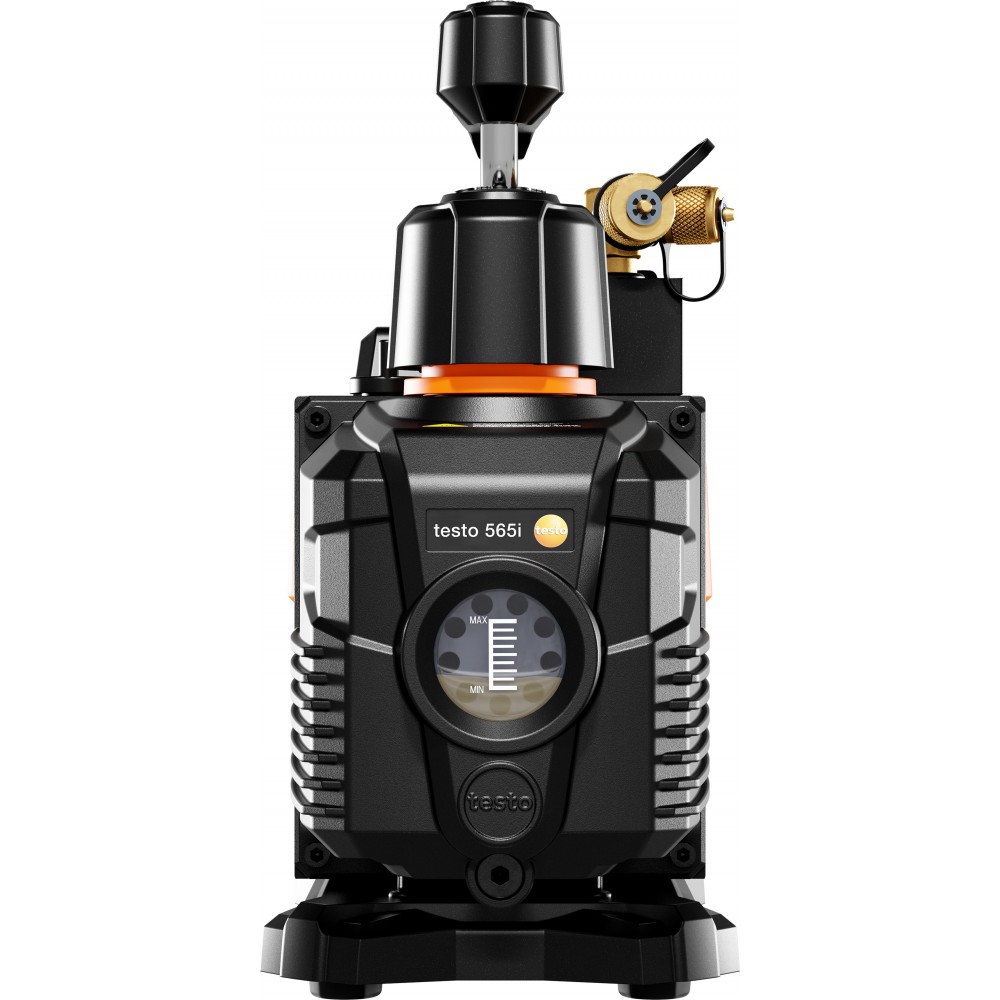

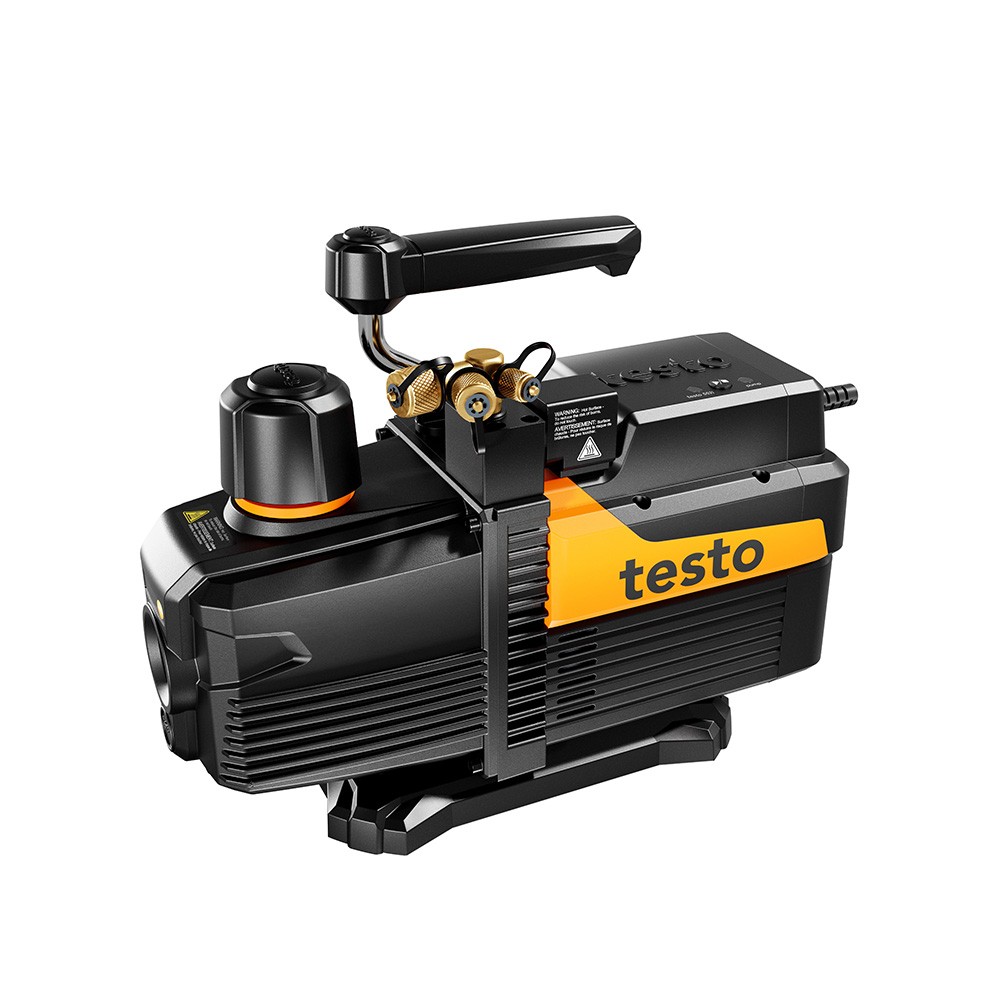

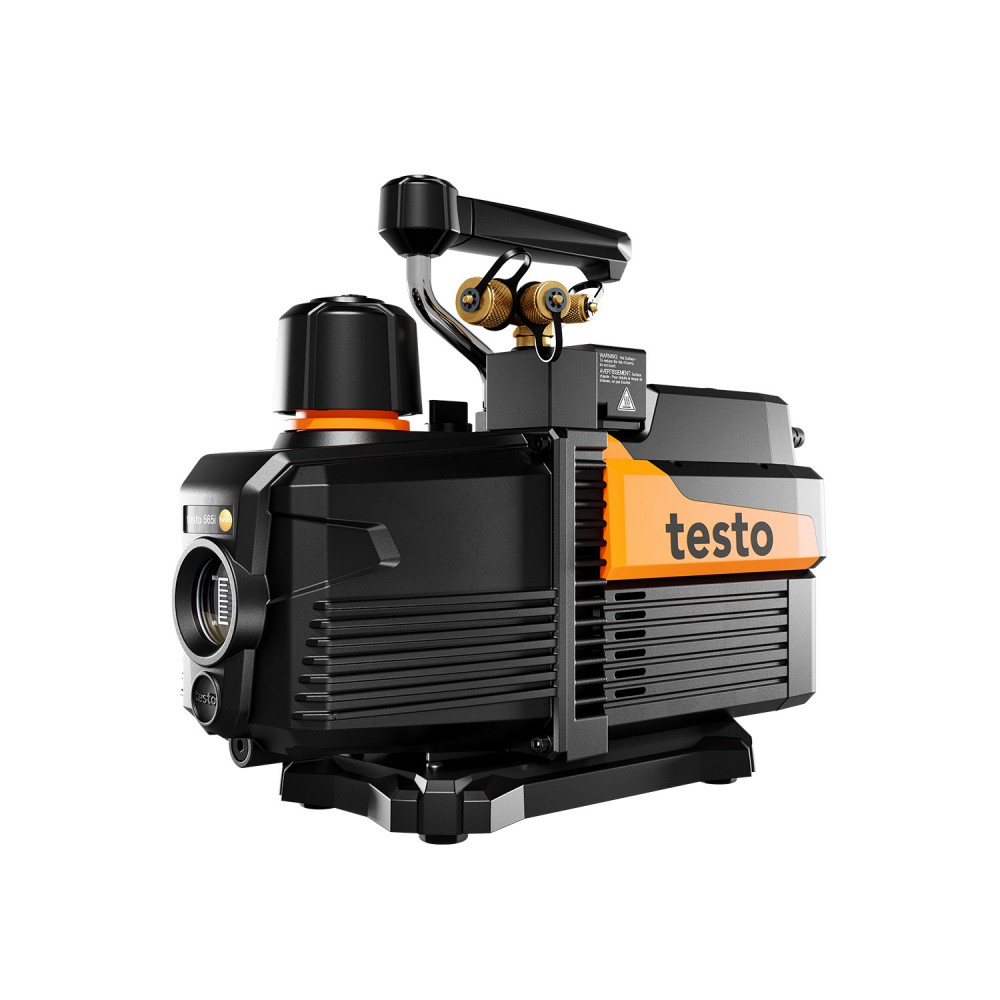

Testo 565i 7cfm 240v Vacuum Pump
Ref: 257102
Testo 565i smart vacuum pump for automated evacuations with integrated vacuum hold test, 7 CFM /198l/min, 10 CFM / 283 l/mi
- Refrigerant : A2L / A2 / A3 certified
- Fully automated evacuation process with integrated holding test when used in combination with the testo 552i vacuum probe
- Can be safely used even with flammable class A3 and A2L refrigerants
- One app for everything: Configure and monitor measurements and manage data with the testo Smart App
- Easy oil change and sight glass for quick assessment of the oil level
- Non-return valve to prevent loss of vacuum in the event of power failure
- Perfect interaction between workflows thanks to full connectivity to the entire Testo refrigeration portfolio
£410.00 + VAT
Ordering is only available to Trade Customers
Testo 565i smart vacuum pump for automated evacuations with integrated vacuum hold test, 7 CFM /198l/min, 10 CFM / 283 l/mi The new testo 565i vacuum pump carries out evacuations on refrigeration systems and heat pumps fully automatically. When the desired vacuum target value is reached, pumping is automatically stopped and a vacuum holding test is started at the same time. Foreign gases and moisture are thus safely removed and data on the tightness of the system is stored. The data logging function ensures complete documentation. This means that evacuations can be carried out completely autonomously.
| Brand | |
|---|---|
| Product Category |
Specification for: Testo 565i 7cfm 240v Vacuum Pump
| Air Flow | 198 1/MIN |
| Connection | 1/4 SAE 3/8 SAE1/2 SAE |
| Flow rate | 7 CFM / 198 l/min |
| In Box | testo 565i Smart Vacuum Pump Oil bottle Calibration protocol and instruction manual |
| Interface | Bluetooth 5.0 |
| MPN | 0564 5652 02 |
| Operating temperature | +5 to +40 C |
| Pump type | Rotary vane pump two-stage |
| Radio range | 30 m |
| Refrigerant | A2L / A2 / A3 certified |
| Standards | Oil compatibility: ISO VG 46 |
| Temperature | +5 to +40 °C |
| Ultimate vacuum | 15 micron |
| WebDescription | The testo 565i makes evacuations incredibly easy. Thanks to smart technology and the connection to the testo 552i vacuum probe the 565i automatically stops evacuation once the desired target value is reached and initiates a vacuum hold test automati |
| Weight | 12 kg |
