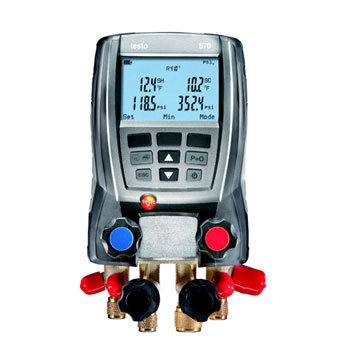

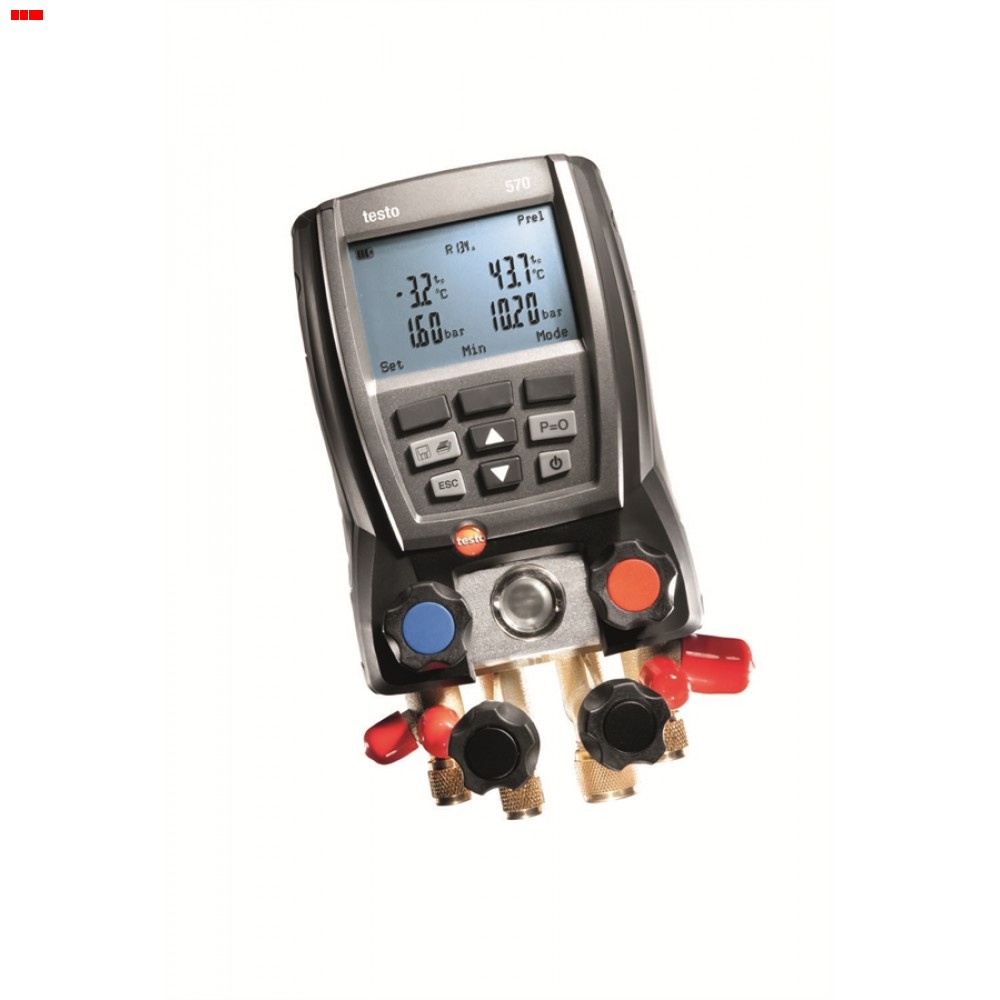

Testo 570-1 4 Way Digital Manifold
Purchasing the testo 570-1 digital manifold will ideally equip you to carry out quick, reliable measurements on refrigeration systems and heat pumps: carry out pressure, temperature, current and vacuum measurements as well as temperature-compensated tightness tests. Moreover, it calculates superheating and subcooling simultaneously.
- 40 refrigerants are stored in the instrument
- Calculation of superheating and subcooling possible in parallel
- 999 hours of recording readings

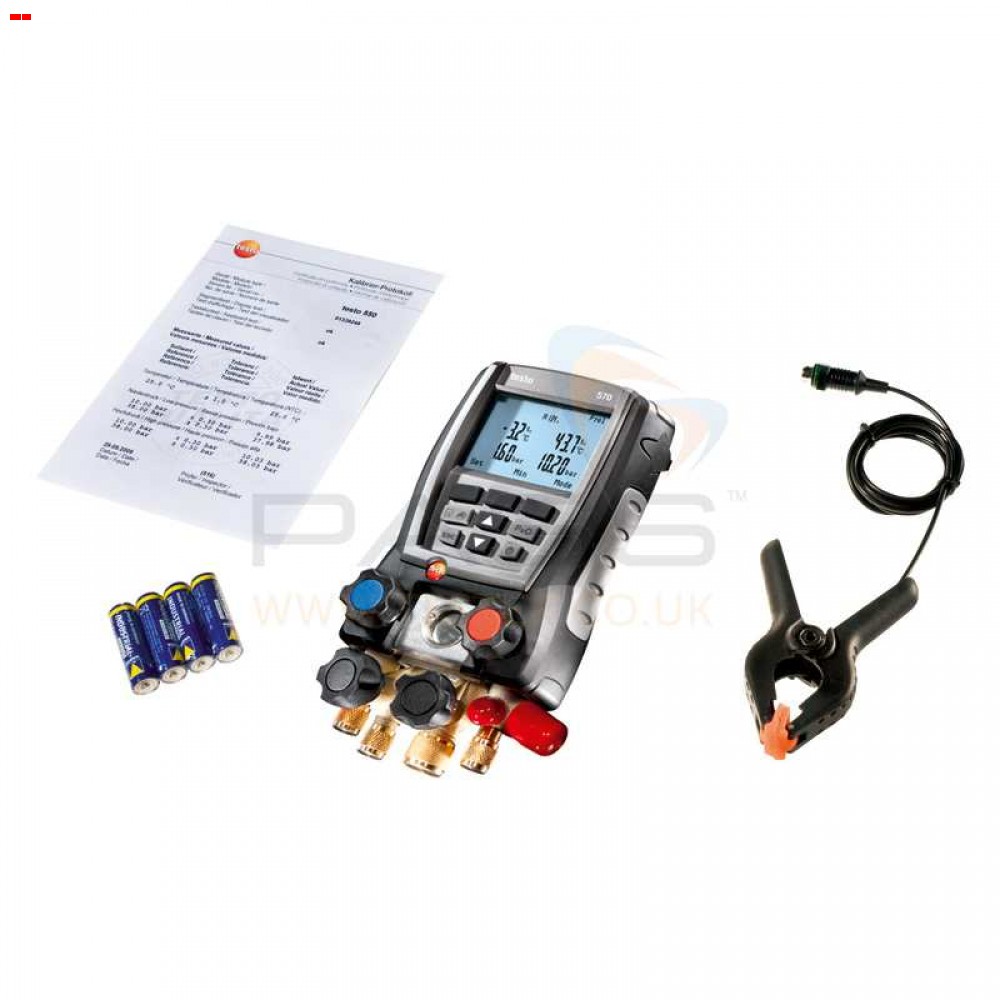

- Set includes a clamp temperature probe for measuring the surface temperature of pipes
- Record readings over a period of up to 999 hours: the results are safely stored in the instrument, even for long-term measurements on refrigeration systems or heat pumps
- Real-time recording and graphic presentation of measurement data: as an option you can purchase the EasyKool software, which can be used to clearly present the measurement data. This is particularly useful for identifying sources of error in the eve
- Protocol access and printout: the testo fast printer, which is available as an option, enables on-site printout of measurement data. You can also view the measurement protocols in the EasyKool software (optional)
- Suitable for all common refrigerants: 40 current refrigerants are stored in the manifold and can be up
£607.97 + VAT
Purchasing the testo 570-1 digital manifold will ideally equip you to carry out quick, reliable measurements on refrigeration systems and heat pumps: carry out pressure, temperature, current and vacuum measurements as well as temperature-compensated tightness tests. Moreover, it calculates superheating and subcooling simultaneously. The testo 570-1 digital manifold is suitable for practical use, largely thanks to its robust 4-way valve block with 4 connections, 4 hose parkers and its inspection glass. Maintenance and servicing tasks on refrigeration systems and heat pumps are made easier due to the manageability of the instrument.
With its solid housing, the digital manifold is protected against impacts. A suspension hook on the back secures the instrument during the measurement. In addition, the manifold has a large, illuminated display, so you will have no problem reading off the readings, even in a dark environment.
Recommendation: if you would like to have a key accessory to hand, you can purchase the digital manifold testo 570-2 Set. This manifold set contains a second clamp temperature probe, the EasyKool software, a USB cable, a mains unit and a transport case.
| Brand |
|---|
Specification for: Testo 570-1 4 Way Digital Manifold
| Accuracy | 1 % fs |
| Battery life | approx. 40 h (w/o illumination) |
| Description1 | For refrigeration systems and heat pumps to function smoothly and efficiently the pressure temperatures and any system superheating or subcooling need to be monitored. The testo 570-1 digital manifold can record or calculate all these values and al |
| Description2 | Together with the testo 570-1 digital manifold you also get a clamp temperature probe. Simply clamped to the pipe this reliably measures the surface temperature. Our probes range also includes attachable probes for measuring temperature current or |
| Description3 | The testo 570-1 digital manifold is suitable for practical use largely thanks to its robust 4-way valve block with 4 connections 4 hose parkers and its inspection glass. Maintenance and servicing tasks on refrigeration systems and heat pumps are ma |
| Description4 | With its solid housing the digital manifold is protected against impacts. A suspension hook on the back secures the instrument during the measurement. In addition the manifold has a large illuminated display so you will have no problem rea |
| Dimensions | |
| Display type | |
| High pressure rel. | |
| In Box | |
| Low pressure rel. | |
| Measuring range | |
| MPN | |
| Operating temperature | |
| Overload rel. (high pressure) | |
| Overload rel. (low pressure) | |
| Pressure media | |
| Probe connection | |
| Product colour | |
| Protection class | |
| Range | |
| Refrigerants in instrument | |
| Refrigerants update via software | |
| Resolution | |
| Storage temperature | |
| Type | |
| Weight |
