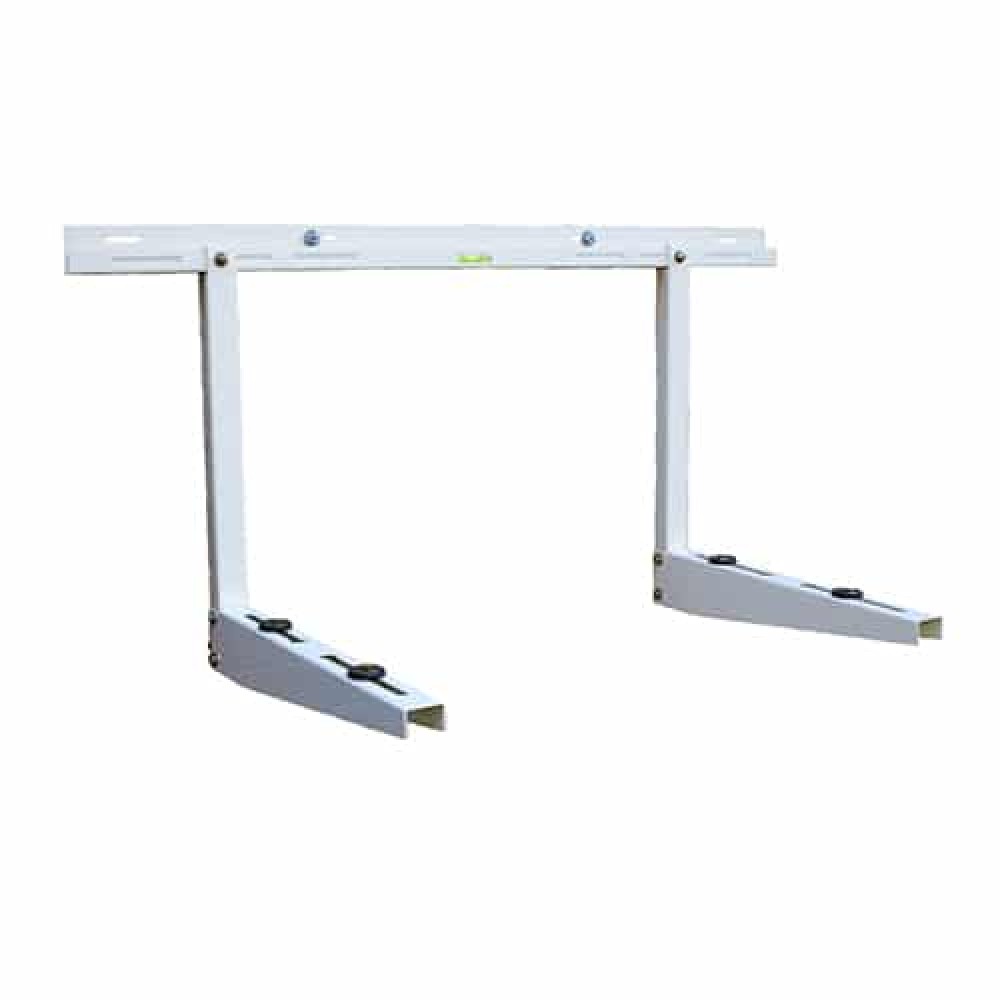

Type 2 Bracket – Medium
DiversiTech International offer a range of flat packed brackets, the Type 1 bracket has uprights and mounts directly onto the wall. Type 2 comes with a crossbar so that the uprights can be spaced exactly as required. The integral spirit level makes installation easier. Type 3 brackets have a unique interlocking mechanism enabling the arms to be joined in a matter of seconds. For improved corrosion resistance all metal receives a 100% zinc plating, followed by a hard ED coating, before being fini
- Capacity : 90 Kg
- Max Weight 90kg
- Uprights mount anywhere on the crossbar which enables the arm span to be adjusted easily
- Adjustable wall spacers to level the arms
- Integral spirit level for easier, correct installation
- Suitable to match most brands of condensing units and domestic air source heat pumps
- Extra long arms (up to 660mm available for larger condensing units)
- Textured finish in (RAL 7032)
| Min Quantity | Price per Unit |
|---|---|
| 1 | £53.56 |
| 5 | £45.91 |
| 10 | £42.85 |
£53.56 + VAT
Specification for: Type 2 Bracket – Medium
| Arm Drop | 500 mm |
| Arm Length | |
| Capacity | 90 Kg |
| Crossbar | 900mm |
| Description | Type 2 Bracket Medium |
| Description BLACK | |
| Max Load | 180kg |
| MPN | CBR2-M |
| Part Name | CBR2-M |
| Safe Working Load | 90kg |
| Support arm | 500mm |
| Upright | 500mm |
| Weight | 4.6kg |

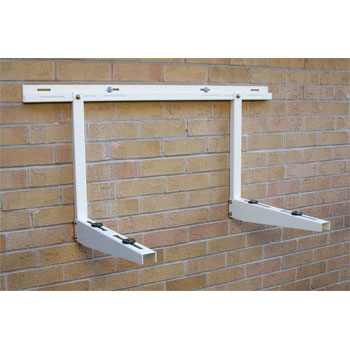

These flat-packed, self assembly brackets provide a professional finish to the installation of wall mounted outdoor condensing units and air source heat pumps.
The Type 2 brackets have a crossbar allowing the uprights to be spaced exactly as required, and include wall spacers to help level the unit on uneven walls.
All components receive a powder coating, with a scratch resistant, textured finish in a colour (RAL 7032) to match most brands of condensing units and domestic air source heat pumps.
| Weight | 3.4 kg |
|---|---|
