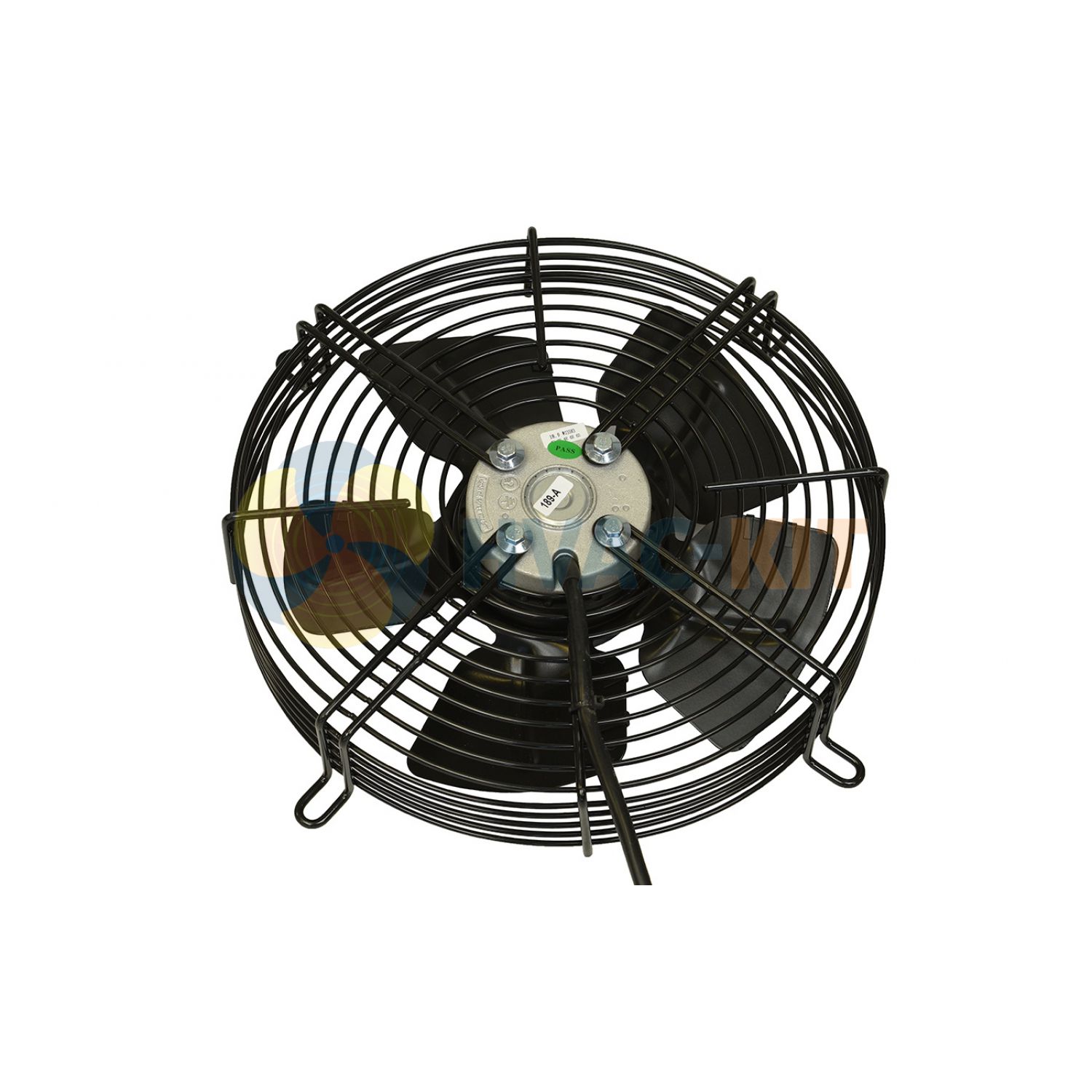

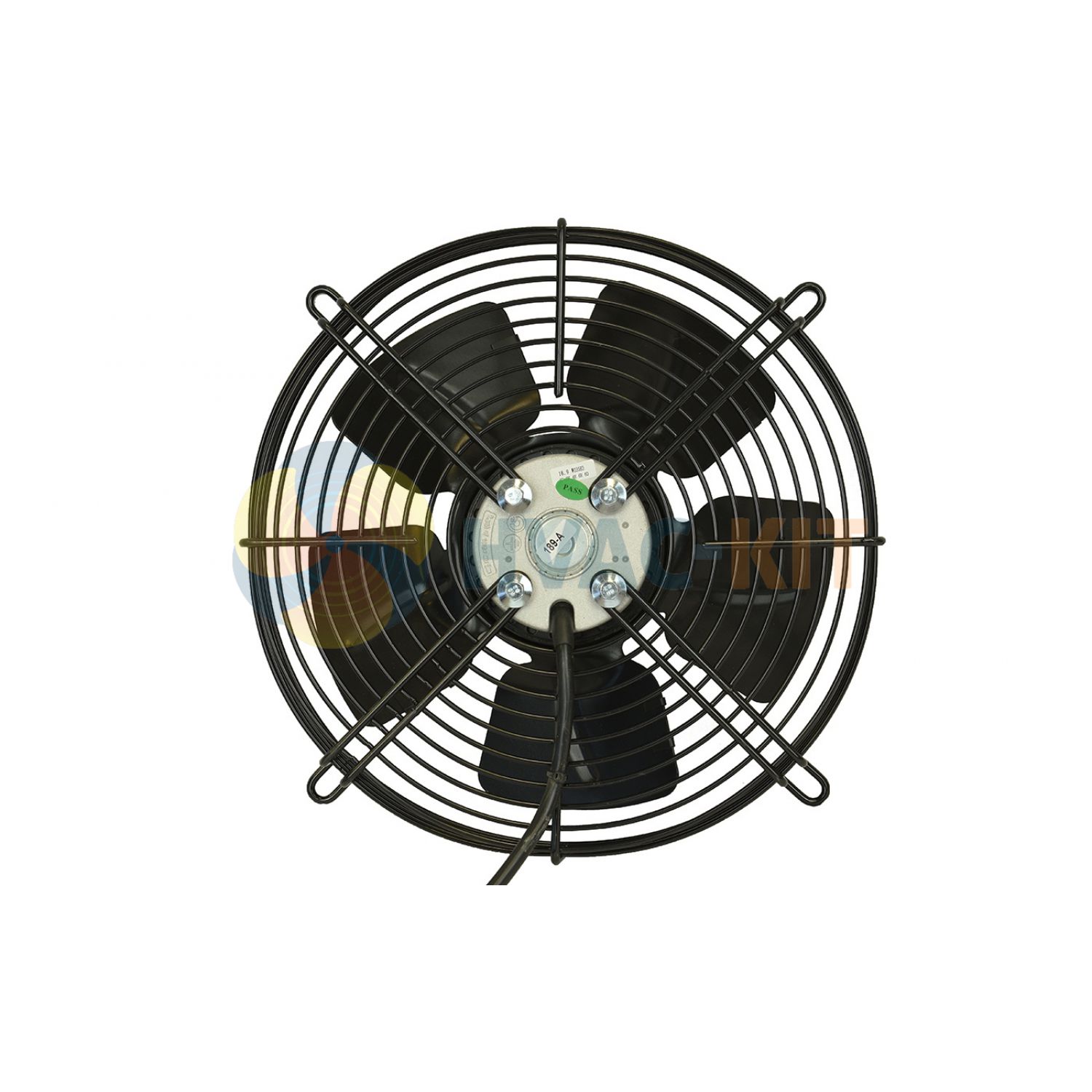

250mm Guard Mounted Axial Fan Sucker 1 ph – 2 Pole (2650rpm) 90w
The XMFG-2-90-250-30S is a single phase (230V 50Hz) sucker 2 Pole (2650rpm) guard mounted 250mm axial fan. Mounted with 4 lugs on basket guard (320mm PCD) and supplied with flying leads. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco.
- Blade Diameter : 250mm
- Supply/Voltage : Single Phase (230V, 50Hz)
- Nominal Run Speed (RPM) : 2 Pole (2650rpm)
- Part Number : XMFG-2-90-250-30S_31
- Connection Type : Flying Leads
- Basket Guard Depth : 60mm
- Airflow Direction : Sucker
- Air Volume (m3/hr) : 1215
- Specific Mounting Details : 4 Lugs on Basket Guard (320mm PCD)
£94.32 + VAT
The XMFG-2-90-250-30S is a single phase (230V 50Hz) sucker 2 Pole (2650rpm) guard mounted 250mm axial fan. Mounted with 4 lugs on basket guard (320mm PCD) and supplied with flying leads. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco. The XMFG-2-90-250-30S is a single phase (230V 50Hz) sucker 2 Pole (2650rpm) guard mounted 250mm axial fan. Mounted with 4 lugs on basket guard (320mm PCD) and supplied with flying leads. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco.
| Airflow Direction | |
|---|---|
| Blade Diameter | |
| Brand | |
| Connection Type | |
| Nominal Run Speed (RPM) | |
| Product Category | |
| Supply/Voltage |
Specification for: 250mm Guard Mounted Axial Fan Sucker 1 ph – 2 Pole (2650rpm) 90w
| Air Volume (m3/hr) | 1215 |
| Airflow Direction | Sucker |
| Ambient Temperature | -30°c to +60°c |
| Assembly Depth | 80mm |
| Basket Guard Depth | 60mm |
| Blade Diameter | 250mm |
| Blade Protrusion | 20mm |
| Brand | Remco |
| Connection Type | Flying Leads |
| Insulation Class | Class B (130°C) |
| IP Rating | IP54 |
| Nominal Run Speed (RPM) | 2 Pole (2650rpm) |
| Part Number | XMFG-2-90-250-30S_31 |
| Run Cap Value (mfd) | 3MFD |
| Specific Mounting Details | 4 Lugs on Basket Guard (320mm PCD) |
| Supply/Voltage | Single Phase (230V 50Hz) |
| Watts Input | 90 |
