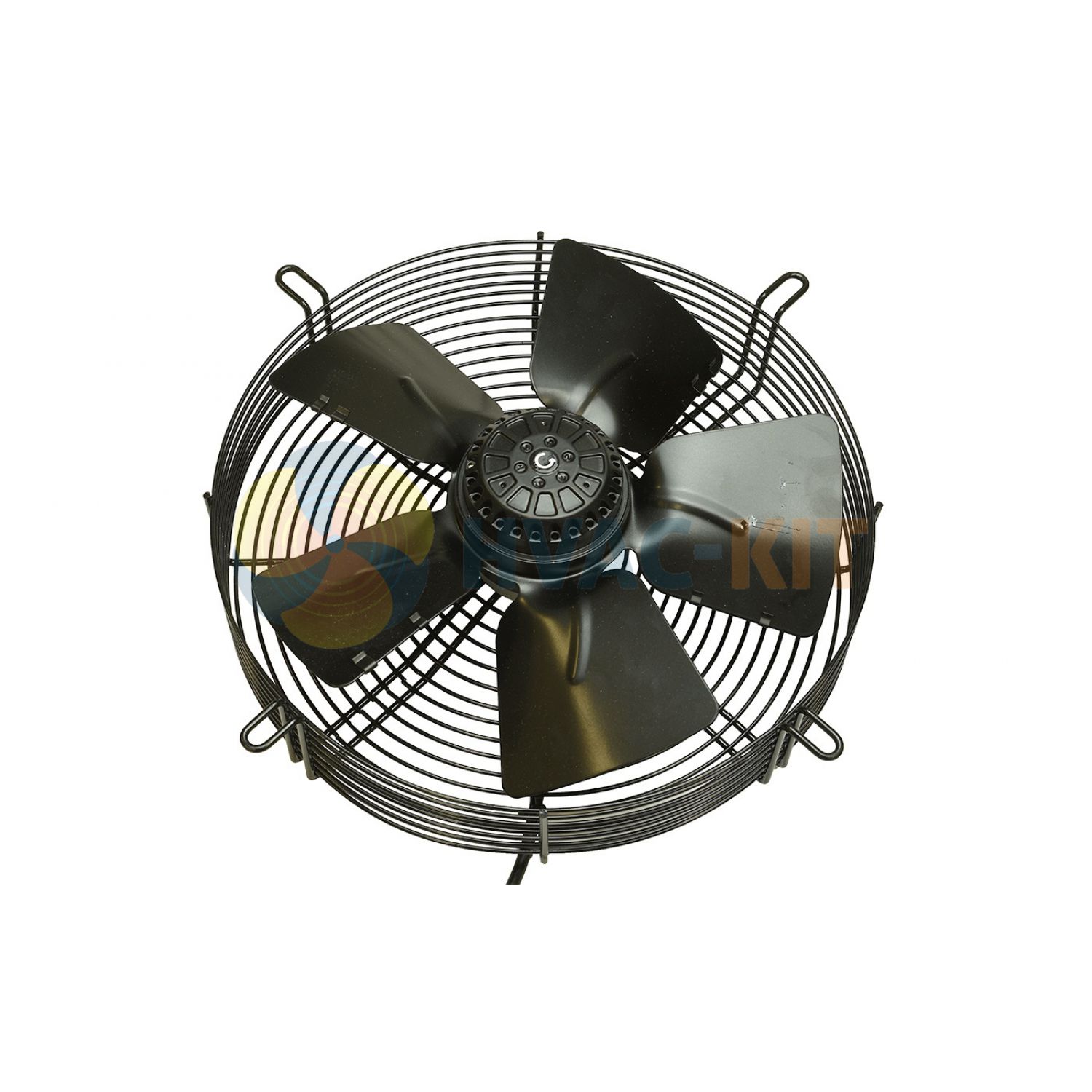

330mm Guard Mounted Axial Fan Sucker 1 ph – 4 Pole (1300-1400rpm) 100w
The XMFG-4-100-330-30S-TB is a single phase (230V 50Hz) sucker 4 Pole (1300-1400rpm) guard mounted 330mm axial fan. Mounted with 4 lugs on basket guard (402mm PCD) and supplied with terminal box. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco.
- Blade Diameter : 330mm
- Supply/Voltage : Single Phase (230V, 50Hz)
- Nominal Run Speed (RPM) : 4 Pole (1300-1400rpm)
- Part Number : XMFG-4-100-330-30S-TB_31
- Connection Type : Terminal Box
- Basket Guard Depth : 80mm
- Airflow Direction : Sucker
- Air Volume (m3/hr) : 2085
- Specific Mounting Details : 4 Lugs on Basket Guard (402mm PCD)
£121.92 + VAT
The XMFG-4-100-330-30S-TB is a single phase (230V 50Hz) sucker 4 Pole (1300-1400rpm) guard mounted 330mm axial fan. Mounted with 4 lugs on basket guard (402mm PCD) and supplied with terminal box. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco. The XMFG-4-100-330-30S-TB is a single phase (230V 50Hz) sucker 4 Pole (1300-1400rpm) guard mounted 330mm axial fan. Mounted with 4 lugs on basket guard (402mm PCD) and supplied with terminal box. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco.
| Airflow Direction | |
|---|---|
| Blade Diameter | |
| Brand | |
| Connection Type | |
| Nominal Run Speed (RPM) | |
| Product Category | |
| Supply/Voltage |
Specification for: 330mm Guard Mounted Axial Fan Sucker 1 ph – 4 Pole (1300-1400rpm) 100w
| Air Volume (m3/hr) | 2085 |
| Airflow Direction | Sucker |
| Ambient Temperature | -30°c to +60°c |
| Assembly Depth | 116mm |
| Basket Guard Depth | 80mm |
| Blade Diameter | 330mm |
| Blade Protrusion | 36mm |
| Brand | Remco |
| Connection Type | Terminal Box |
| Insulation Class | Class B (130°C) |
| IP Rating | IP54 |
| Nominal Run Speed (RPM) | 4 Pole (1300-1400rpm) |
| Part Number | XMFG-4-100-330-30S-TB_31 |
| Run Cap Value (mfd) | 4MFD |
| Specific Mounting Details | 4 Lugs on Basket Guard (402mm PCD) |
| Supply/Voltage | Single Phase (230V 50Hz) |
| Watts Input | 100 |
