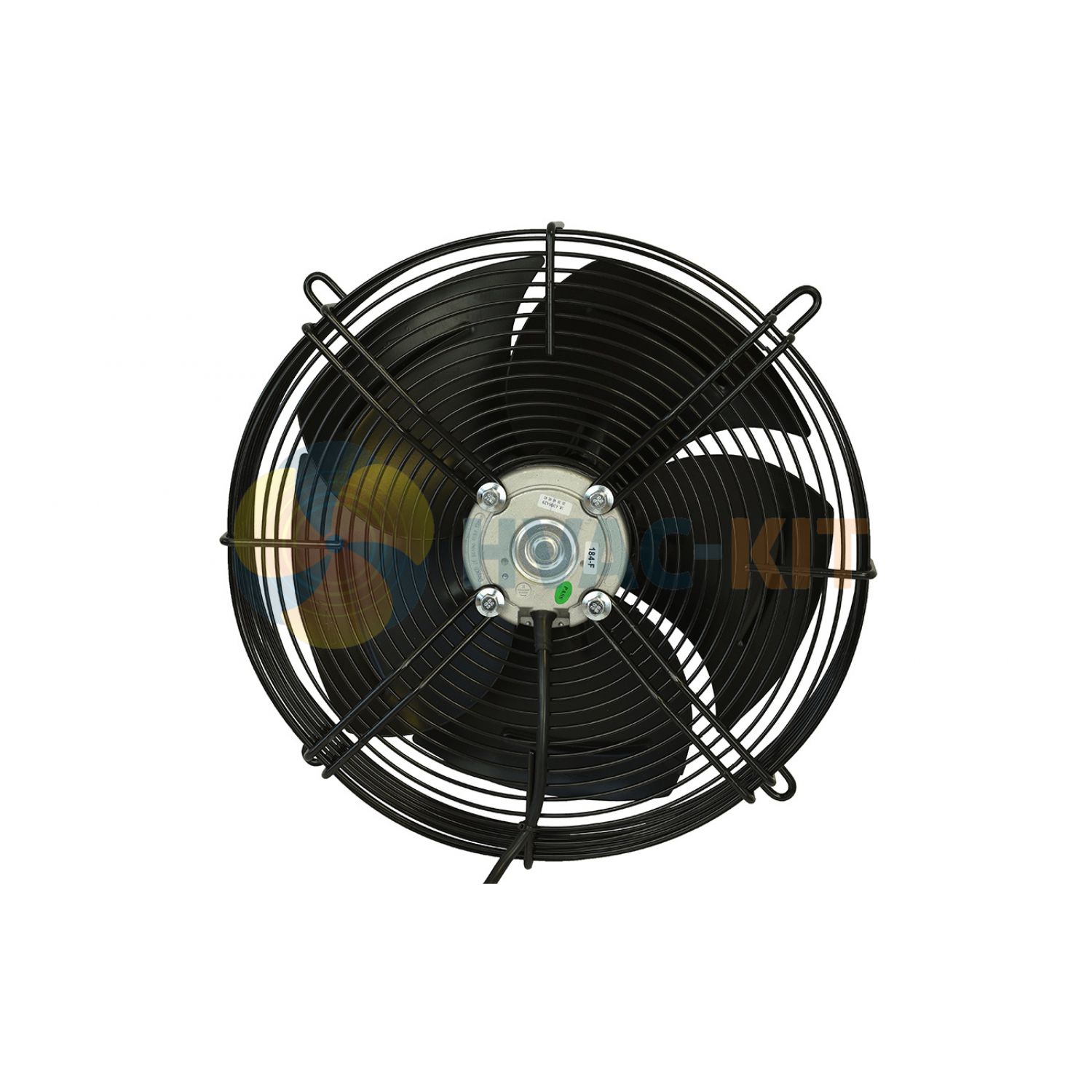

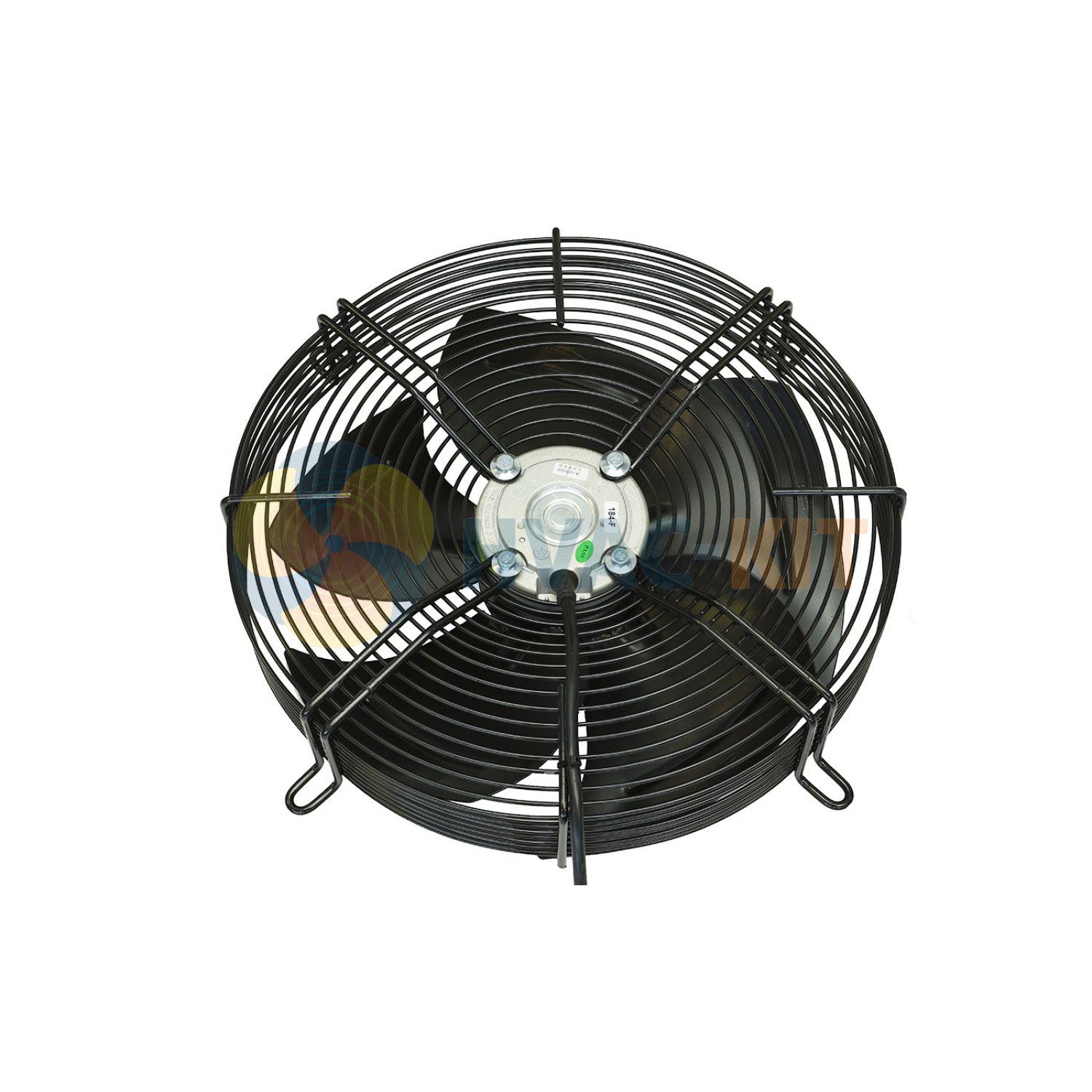

350mm Guard Mounted Axial Fan Sucker 1 ph – 4 Pole (1300-1400rpm) 126w
The XMFG-4-126-350-30S is a single phase (230V 50Hz) sucker 4 Pole (1300-1400rpm) guard mounted 350mm axial fan. Mounted with 4 lugs on basket guard (422mm PCD) and supplied with flying leads. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco.Note This model is a direct replacement for discontinued model number XMFG-4-130-350-30S
- Blade Diameter : 350mm
- Supply/Voltage : Single Phase (230V, 50Hz)
- Nominal Run Speed (RPM) : 4 Pole (1300-1400rpm)
- Part Number : XMFG-4-126-350-30S_31
- Connection Type : Flying Leads
- Basket Guard Depth : 80mm
- Airflow Direction : Sucker
- Air Volume (m3/hr) : 2450
- Specific Mounting Details : 4 Lugs on Basket Guard (422mm PCD)
£104.37 + VAT
Specification for: 350mm Guard Mounted Axial Fan Sucker 1 ph – 4 Pole (1300-1400rpm) 126w
| Air Volume (m3/hr) | 2450 |
| Airflow Direction | Sucker |
| Ambient Temperature | -30°c to +60°c |
| Assembly Depth | 134mm |
| Basket Guard Depth | 80mm |
| Blade Diameter | 350mm |
| Blade Protrusion | 54mm |
| Brand | Remco |
| Connection Type | Flying Leads |
| Insulation Class | Class B (130°C) |
| IP Rating | IP54 |
| Nominal Run Speed (RPM) | 4 Pole (1300-1400rpm) |
| Part Number | XMFG-4-126-350-30S_31 |
| Run Cap Value (mfd) | 4MFD |
| Specific Mounting Details | 4 Lugs on Basket Guard (422mm PCD) |
| Supply/Voltage | Single Phase (230V 50Hz) |
| Watts Input | 126 |
The XMFG-4-126-350-30S is a single phase (230V 50Hz) sucker 4 Pole (1300-1400rpm) guard mounted 350mm axial fan. Mounted with 4 lugs on basket guard (422mm PCD) and supplied with flying leads. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco.Note This model is a direct replacement for discontinued model number XMFG-4-130-350-30S The XMFG-4-126-350-30S is a single phase (230V 50Hz) sucker 4 Pole (1300-1400rpm) guard mounted 350mm axial fan. Mounted with 4 lugs on basket guard (422mm PCD) and supplied with flying leads. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco.Note This model is a direct replacement for discontinued model number XMFG-4-130-350-30S
