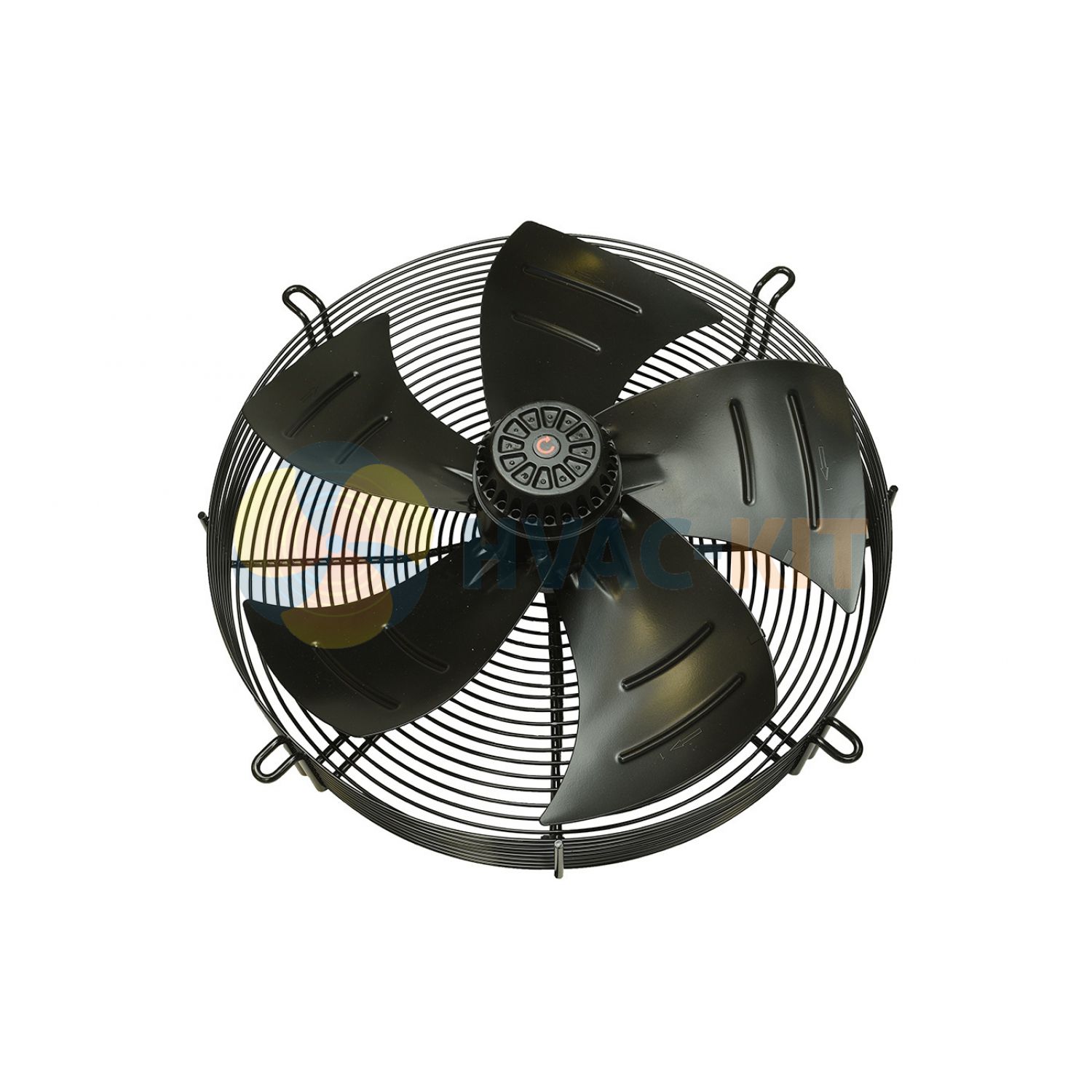

400mm Guard Mounted Axial Fan Blower 3 ph – 4 Pole (1300-1400rpm) 180w
The XMFG-4-180-400-30B-3P-TB is a three phase (400V 50Hz) blower 4 Pole (1300-1400rpm) guard mounted 400mm axial fan. Mounted with 4 lugs on basket guard (470mm PCD) and supplied with terminal box. Remcos guard mounted axials can be modified to larger or flat guards on request. A fan assembly offering superb build quality by Remco.
- Blade Diameter : 400mm
- Supply/Voltage : Three Phase (400V, 50Hz)
- Nominal Run Speed (RPM) : 4 Pole (1300-1400rpm)
- Part Number : XMFG-4-180-400-30B-3P-TB_31
- Connection Type : Terminal Box
- Basket Guard Depth : 90mm
- Airflow Direction : Blower
- Air Volume (m3/hr) : 3920
- Specific Mounting Details : 4 Lugs on Basket Guard (470mm PCD)
£132.93 + VAT
The XMFG-4-180-400-30B-3P-TB is a three phase (400V 50Hz) blower 4 Pole (1300-1400rpm) guard mounted 400mm axial fan. Mounted with 4 lugs on basket guard (470mm PCD) and supplied with terminal box. Remcos guard mounted axials can be modified to larger or flat guards on request. A fan assembly offering superb build quality by Remco. The XMFG-4-180-400-30B-3P-TB is a three phase (400V 50Hz) blower 4 Pole (1300-1400rpm) guard mounted 400mm axial fan. Mounted with 4 lugs on basket guard (470mm PCD) and supplied with terminal box. Remcos guard mounted axials can be modified to larger or flat guards on request. A fan assembly offering superb build quality by Remco.
| Airflow Direction | |
|---|---|
| Blade Diameter | |
| Brand | |
| Connection Type | |
| Nominal Run Speed (RPM) | |
| Product Category | |
| Supply/Voltage |
Specification for: 400mm Guard Mounted Axial Fan Blower 3 ph – 4 Pole (1300-1400rpm) 180w
| Air Volume (m3/hr) | 3920 |
| Airflow Direction | Blower |
| Ambient Temperature | -30°c to +60°c |
| Assembly Depth | 147mm |
| Basket Guard Depth | 90mm |
| Blade Diameter | 400mm |
| Blade Protrusion | 57mm |
| Brand | Remco |
| Connection Type | Terminal Box |
| Insulation Class | Class B (130°C) |
| IP Rating | IP54 |
| Nominal Run Speed (RPM) | 4 Pole (1300-1400rpm) |
| Part Number | XMFG-4-180-400-30B-3P-TB_31 |
| Specific Mounting Details | 4 Lugs on Basket Guard (470mm PCD) |
| Supply/Voltage | Three Phase (400V 50Hz) |
| Watts Input | 180 |
