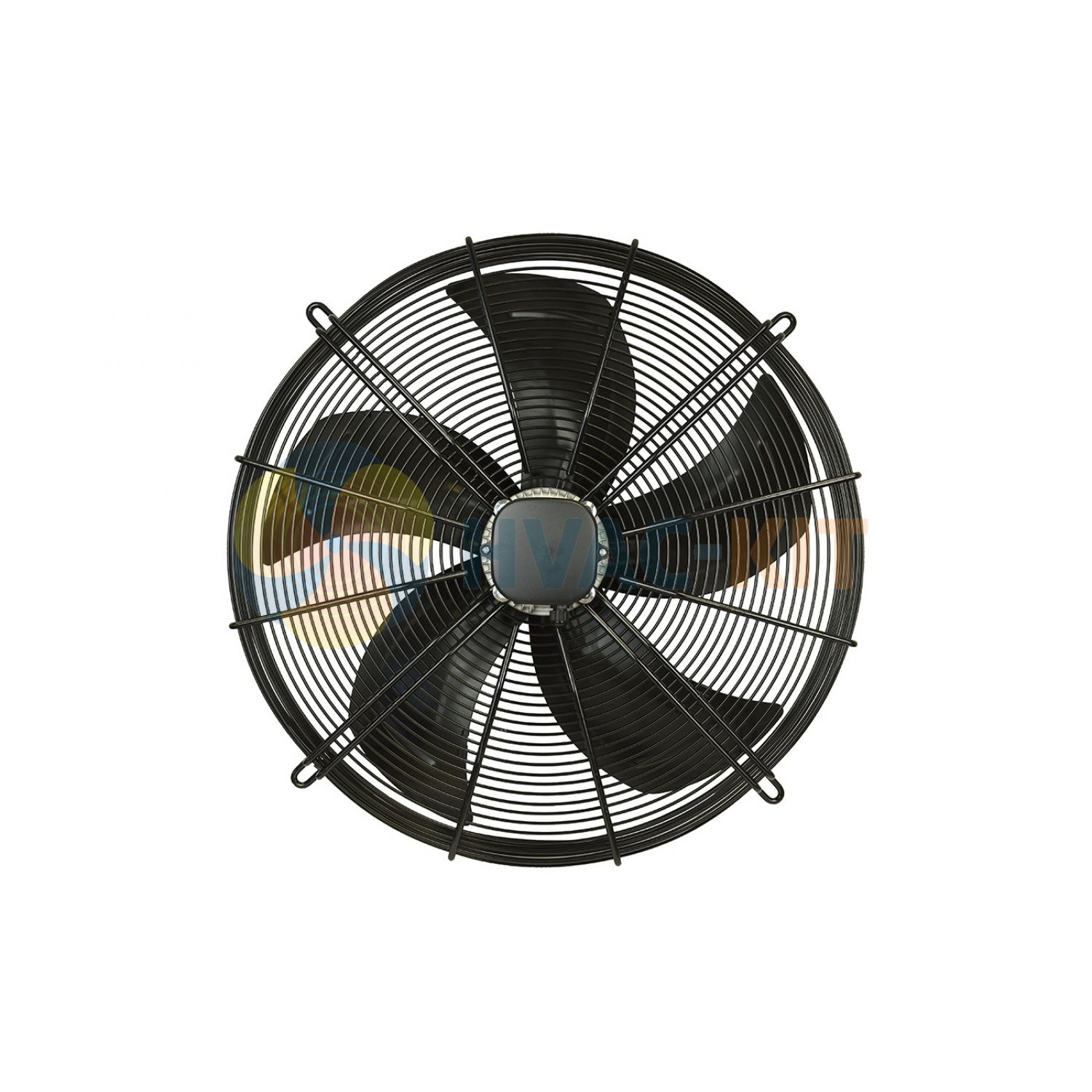

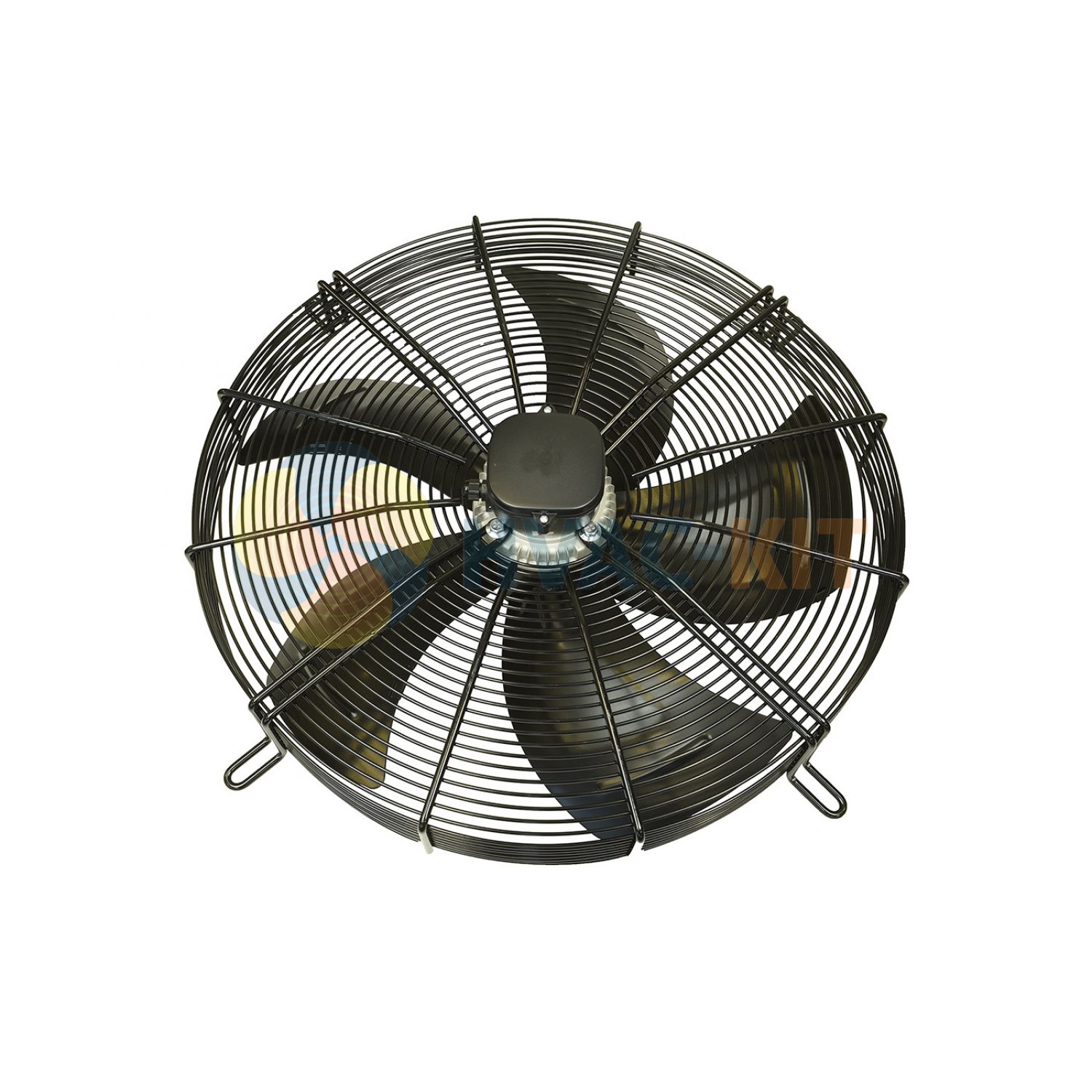

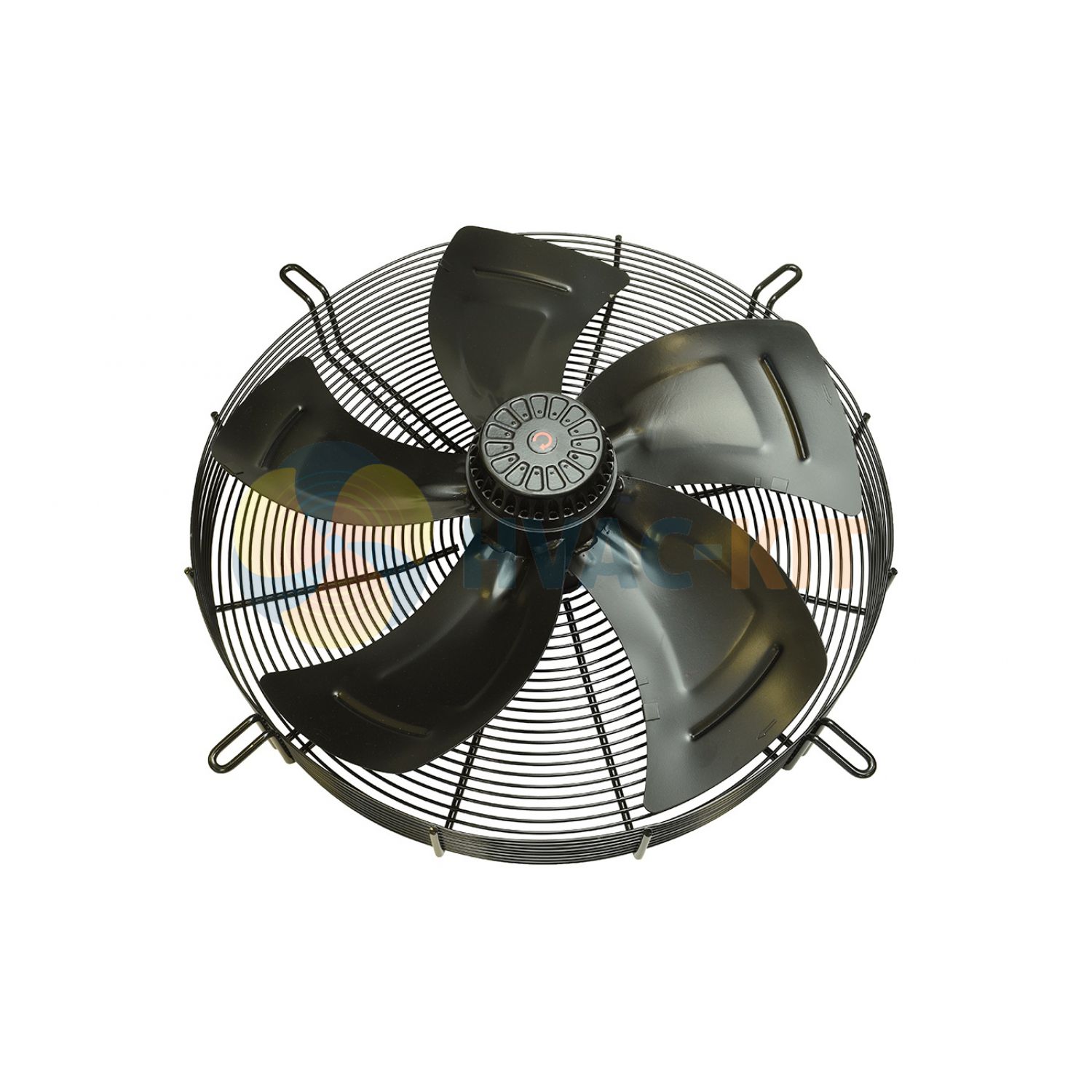

630mm Guard Mounted Axial Fan Blower 3 ph – 6 Pole (900-920rpm) 435w
The XMFG-6-435-630-25B-3P-TB is a three phase (400V 50Hz) blower 6 Pole (900-920rpm) guard mounted 630mm axial fan. Mounted with 4 lugs on basket guard (750mm PCD) and supplied with terminal box. Remcos guard mounted axials can be modifield to larger or flat guards on request. A fan assembly offering superb build quality by Remco.
- Blade Diameter : 630mm
- Supply/Voltage : Three Phase (400V, 50Hz)
- Nominal Run Speed (RPM) : 6 Pole (900-920rpm)
- Part Number : XMFG-6-435-630-25B-3P-TB_31
- Connection Type : Terminal Box
- Basket Guard Depth : 100mm
- Airflow Direction : Blower
- Air Volume (m3/hr) : 11785
- Specific Mounting Details : 4 Lugs on Basket Guard (750mm PCD)
£298.74 + VAT
Specification for: 630mm Guard Mounted Axial Fan Blower 3 ph – 6 Pole (900-920rpm) 435w
| Air Volume (m3/hr) | 11785 |
| Airflow Direction | Blower |
| Ambient Temperature | -30°c to +60°c |

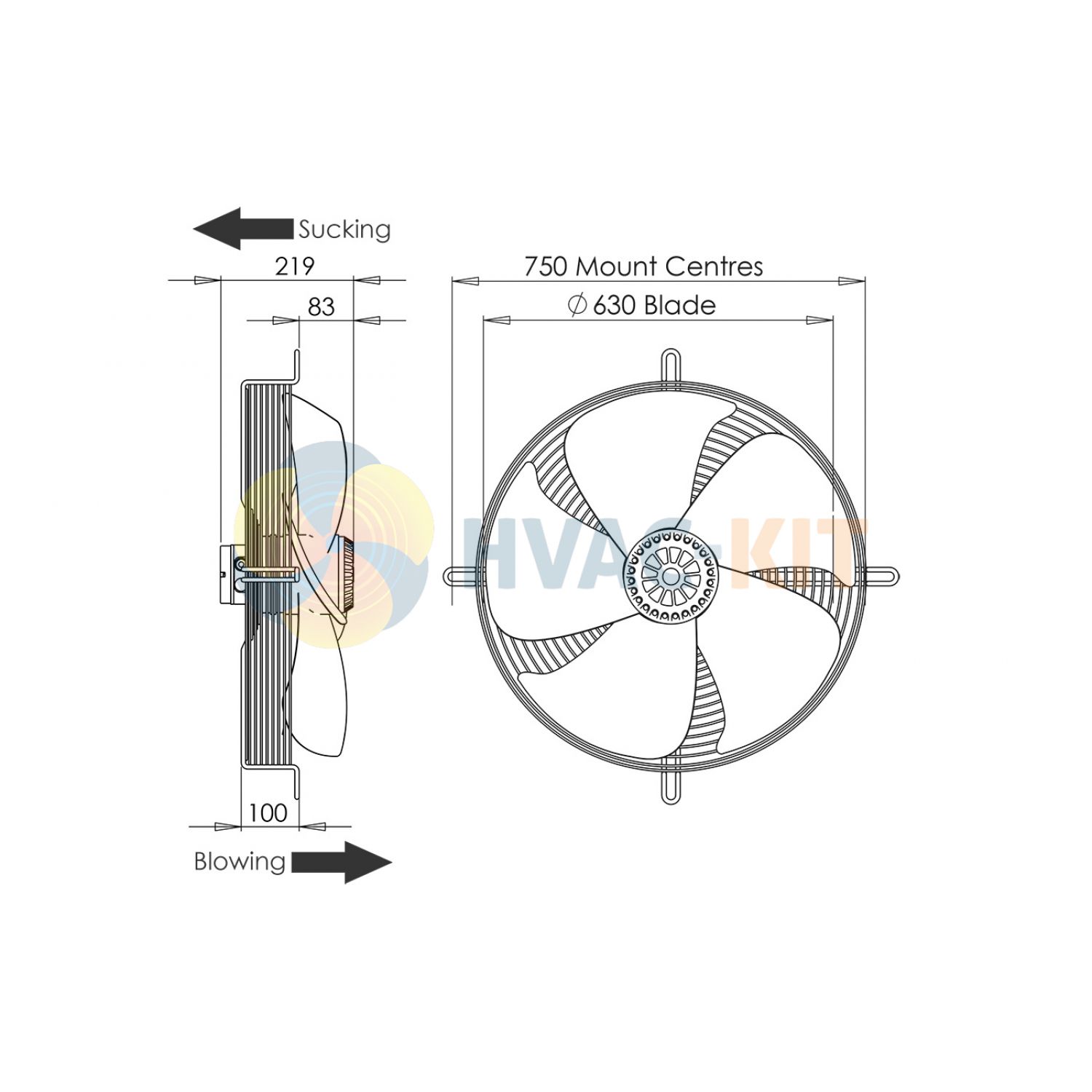

| Assembly Depth | 219mm |
| Basket Guard Depth | 100mm |
| Blade Diameter | 630mm |
| Blade Protrusion | 83mm |
| Brand | Remco |
| Connection Type | Terminal Box |
| Insulation Class | Class B (130°C) |
| IP Rating | IP54 |
| Nominal Run Speed (RPM) | 6 Pole (900-920rpm) |
| Part Number | XMFG-6-435-630-25B-3P-TB_31 |
| Specific Mounting Details | 4 Lugs on Basket Guard (750mm PCD) |
| Supply/Voltage | Three Phase (400V 50Hz) |
| Watts Input | 435 |
