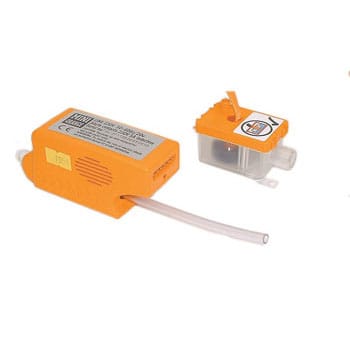

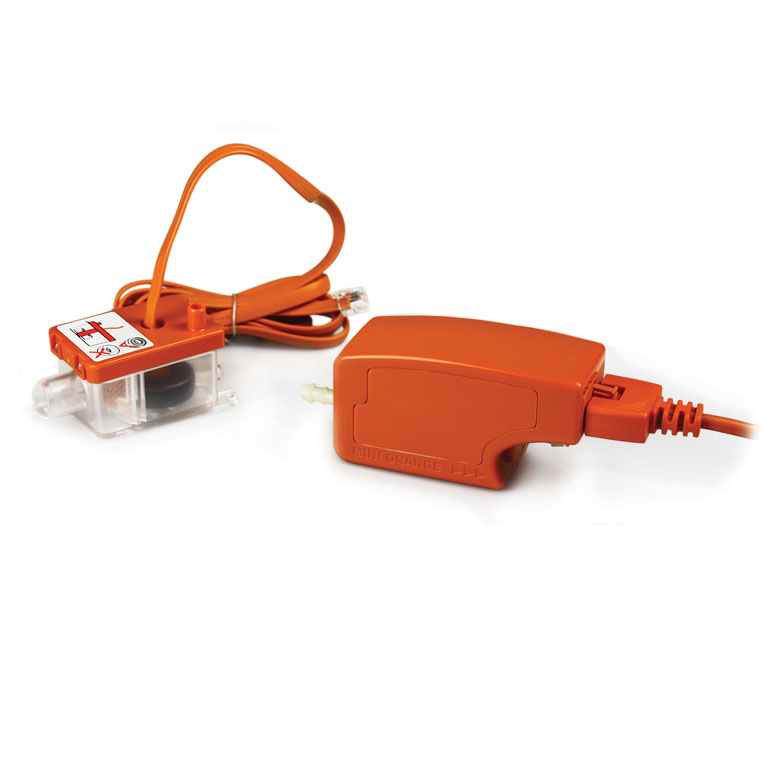

Aspen Mini Orange Condensate Pump
Ref: 57606
The worlds best selling mini pump offers unrivalled reliability and performance.
- Anti siphon device
- Flow : 12 L/h
- Head : 10 m
- Lift : 2 m
- Quietest in its class
- Submersible secondary reservoir included
- Plug & play
- Up to 16kW / 54,000Btu/h
- Ducted units; Floor standing & Chassis units; High wall split systems
Quantity discounts available:
| Min Quantity | Price per Unit |
|---|---|
| 1 | £95.74 |
| 5 | £81.38 |
£95.74 + VAT
Ordering is only available to Trade Customers

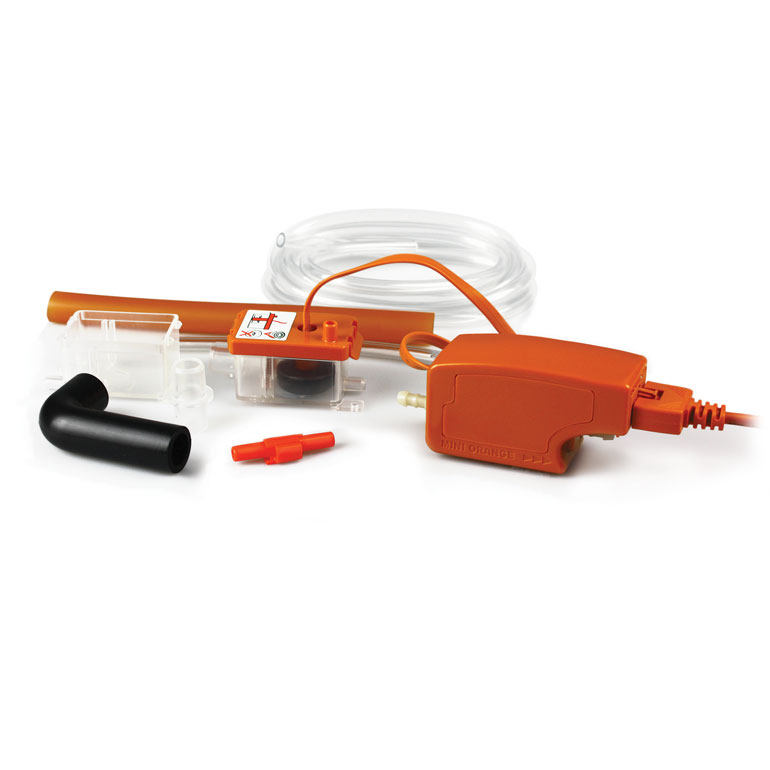

The worlds best selling mini pump offers unrivalled reliability and performance. IN THE BOX
Silent+ Mini Orange
pump1.5m Plug & play power cable
Acoustic damper and 1m orange discharge tube with connector
Anti vibration bracket
Reservoir
Reservoir lid with 1.5m sensor cable
Submersible reservoir
Anti siphon device
Float & filter 1.5m Suction tube 6mm ID
220mm Orange inlet hose 14mm ID
150mm Vinyl breather tube 6mm ID
Drain connector kit Fixing kit
Install manual
| Weight | 0.7 kg |
|---|---|
| Dimensions | 39 × 107 × 51 cm |
| Brand | |
| Flow | |
| Head | |
| Lift | |
| Product Category |
Specification for: Aspen Mini Orange Condensate Pump
| Class | II appliance |
| Data Based | @ 230 VAC 50Hz |
| dB (a) | 21 |

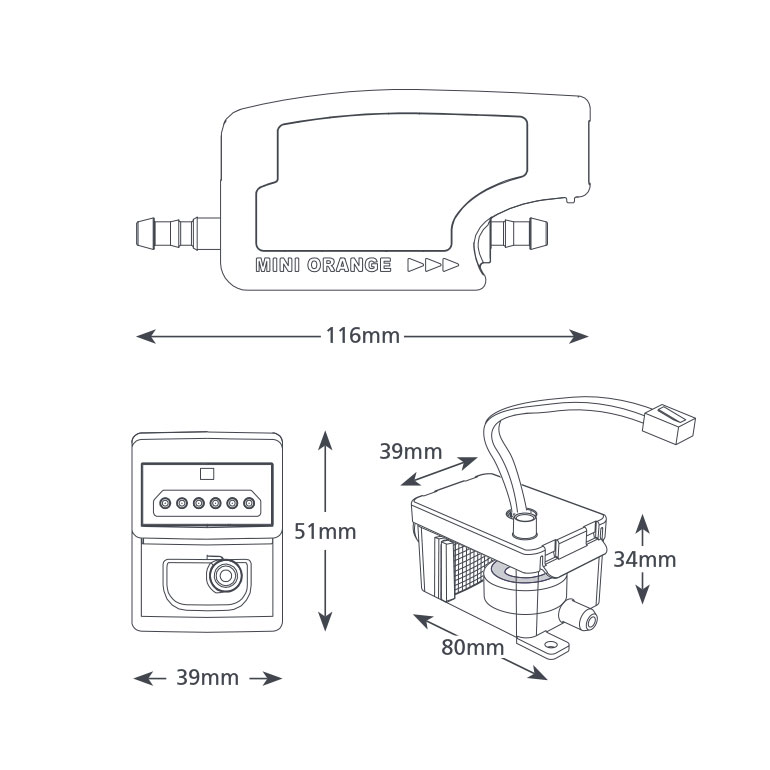

| Depth | 39 mm |
| Discharge tube | 6mm ID |
| Flow | 12 L/h |
| FP2212 | Mini Orange |
| Fully potted | ? |
| Head | 10 m |
| Height | 51 mm |
| IP Protection | IP21 |
| Lift | 2 m |
| Max. flow | 12 L/h |
| Max. rec. head | 10m |
| Max. suction lift | 2m |
| Max. unit output | 16kW / 54000Btu/h |
| Max. water temp | 40°C / 104°F |
| Model | Mini Orange |
| MPN | FP2212 |
| Noise_Level | 21 dBA |
| Power supply | 230 VAC0.11A 16W 50/60Hz |
| Rated | Non continuous |
| Safety switch | 3.0A Normally closed |
| Self priming | ? |
| Sensor | Remote Float |
| Thermal protection | ? |
| Weight | 0.7 Kg |
| Width | 107 mm |
