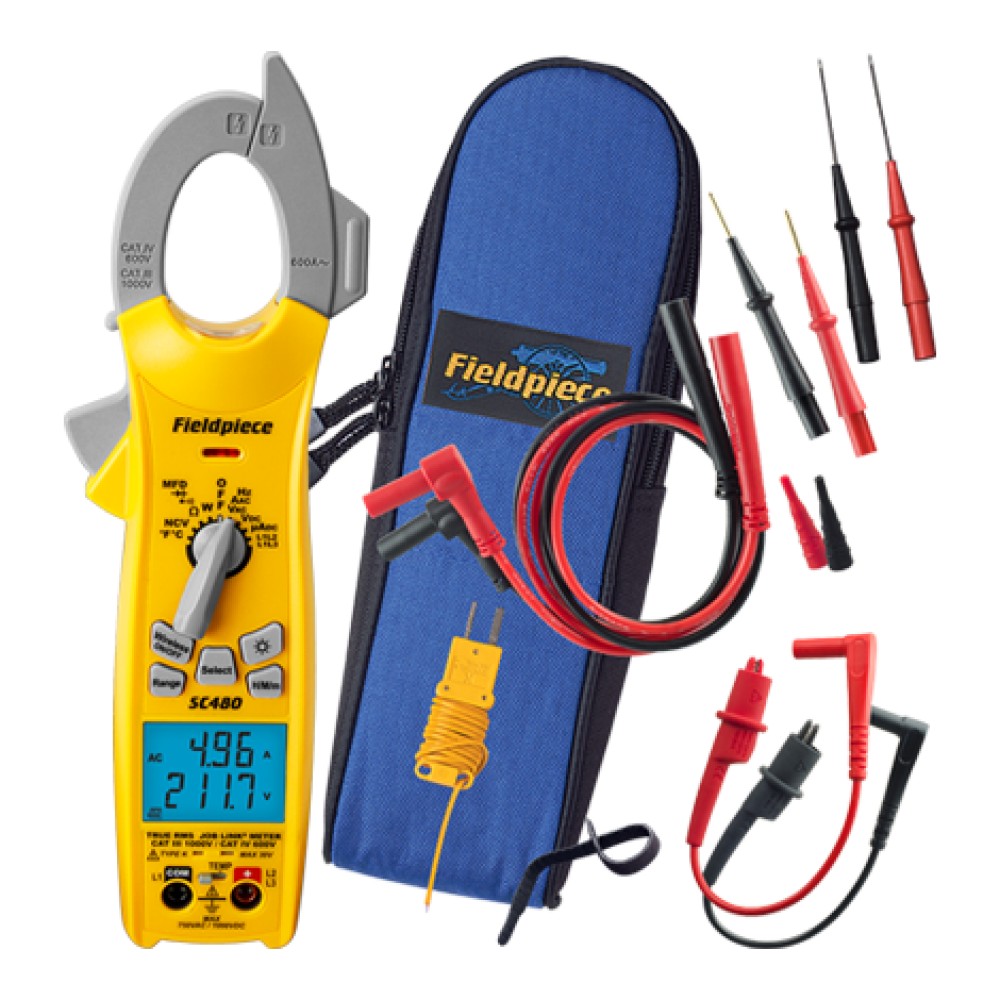

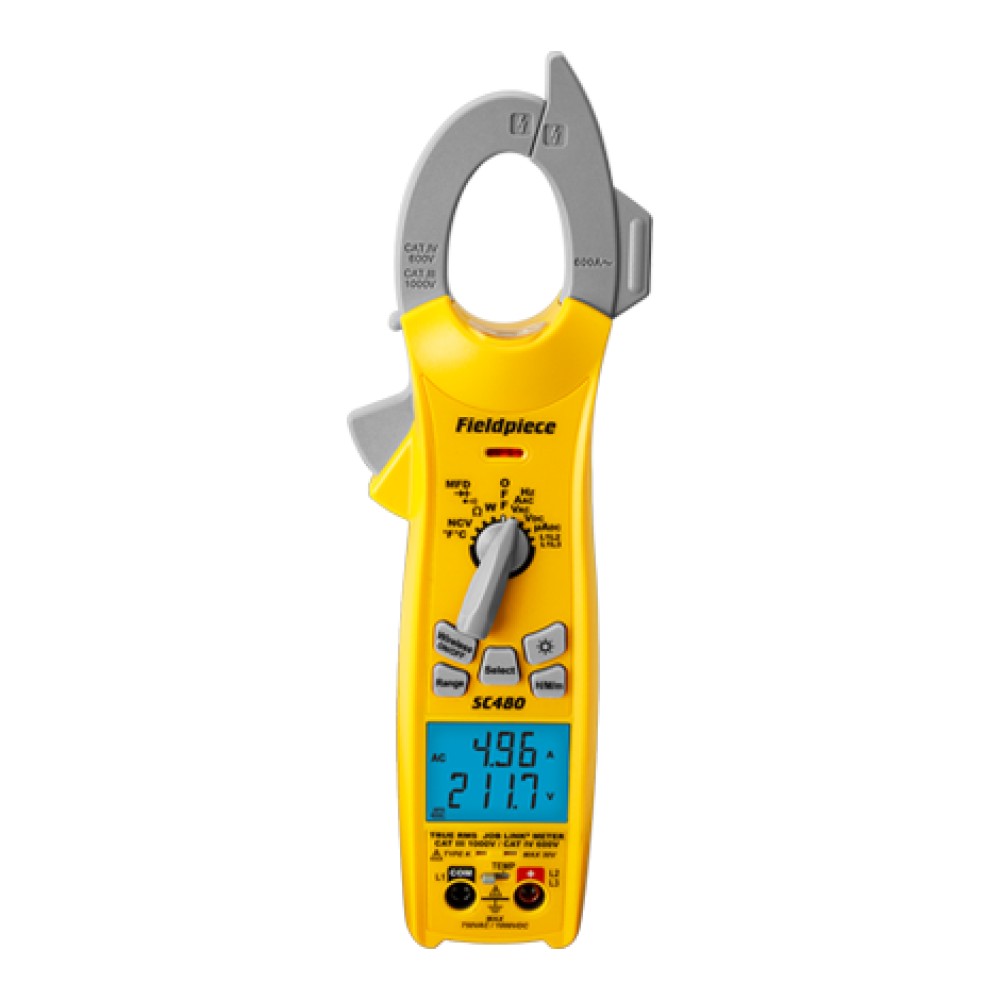

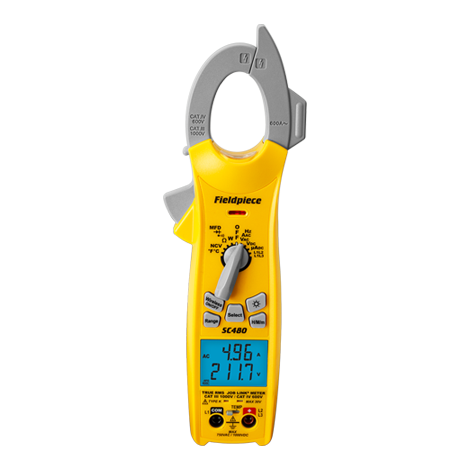

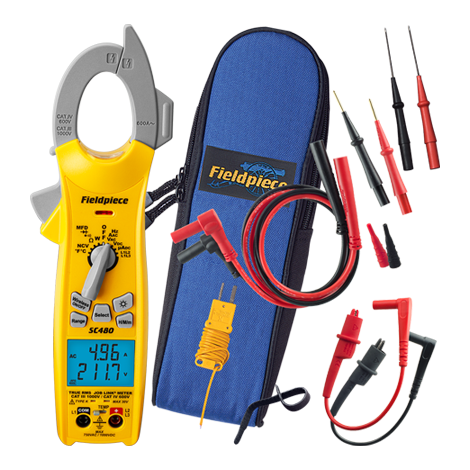

Fieldpiece SC480 Power Clamp Meter
Ref: 236302
Clamp meter for electrical testing and HVAC system diagnostics
Test HVACR electrical equipment using phase rotation, True RMS, and Inrush features. Plus connect directly with the Job Link® System app to document electrical measurements.
Fieldpiece SC480 Power Clamp Meter
Key Features
- Wireless direct to Job Link® System for electrical documentation
- Low Pass Filter for VFD systems
- Molex test leads for small circuitry
- Test 3-phase with two leads
- Safety rated CAT IV 600V/CAT III 1000V
- Test HVACR electrical equipment using phase rotation, True RMS, and Inrush features. Plus connect directly with the Job Link® System app to document electrical measurements.
£265.89 + VAT
Ordering is only available to Trade Customers
Specification for: Fieldpiece SC480 Power Clamp Meter
| Accuracy | Stated accuracy @ 73°F±9°F (23°C±5°C) <75%RH |
| Altitude | Up to 6562 ft (2000m) |
| APO (Auto Power Off) | Approx. 30 minutes |
| Backlight | 5 minute duration with auto-off blue color |
| Battery | 1 x Alkaline 9V |
| Battery life | 100 hours typical alkaline (No wireless no backlight) |
| Country Of Origin | TW |
| Dimensions | 247mm(H) x 79mm(W) x 48mm(D) |
| Display | 10000 count dual display |
| Full EAN | 8726410047818 |
| Full UPC | 872641004781 |
| Low battery indication | Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level |
| Measurement rate | 3.3 times per second nominal |
| Model | SC480 |
| Operating environment | 32°F to 122°F (0°C to 50°C) at <70%RH |
| Overload protection | 1000VDC or 750VAC rms unless otherwise stated |
| Overrange | "OL" or "-OL" is displayed |
| Power | Single standard 9-volt battery NEDA 1604 JIS 006P IEC 6F22 |
| Range | Electrical measurement |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) 0 to 80%RH (with battery removed) |
| Tarrif Code | 9030310090 |
| Temperature coefficient | 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F) 28°C to 50° C (82°F to 122°F)] |
| Test leads | Use UL listed test leads that comply to UL61010-031 rated CATIV 600V CATIII 1000V or above |
| Type | Clamp Meters |
Test HVACR electrical equipment using phase rotation, True RMS, and Inrush features. Plus connect directly with the Job Link® System app to document electrical measurements.
