Fieldpiece ATC1R Small Clamp Thermocouple 1/8 to 3/4
Small pipe clamp thermometer for fast, accurate pipe temperature measurement
The ATC1R, Type-K, pipe clamp thermocouple is used to take temperatures of pipes or any other cylindrical surface within its 1/8 to 3/4 jaw range. Using a pipe clamp thermocouple greatly facilitates taking superheat or subcooling measurements. Use the ATC1R for most refrigeration units. The ATC1R can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple.

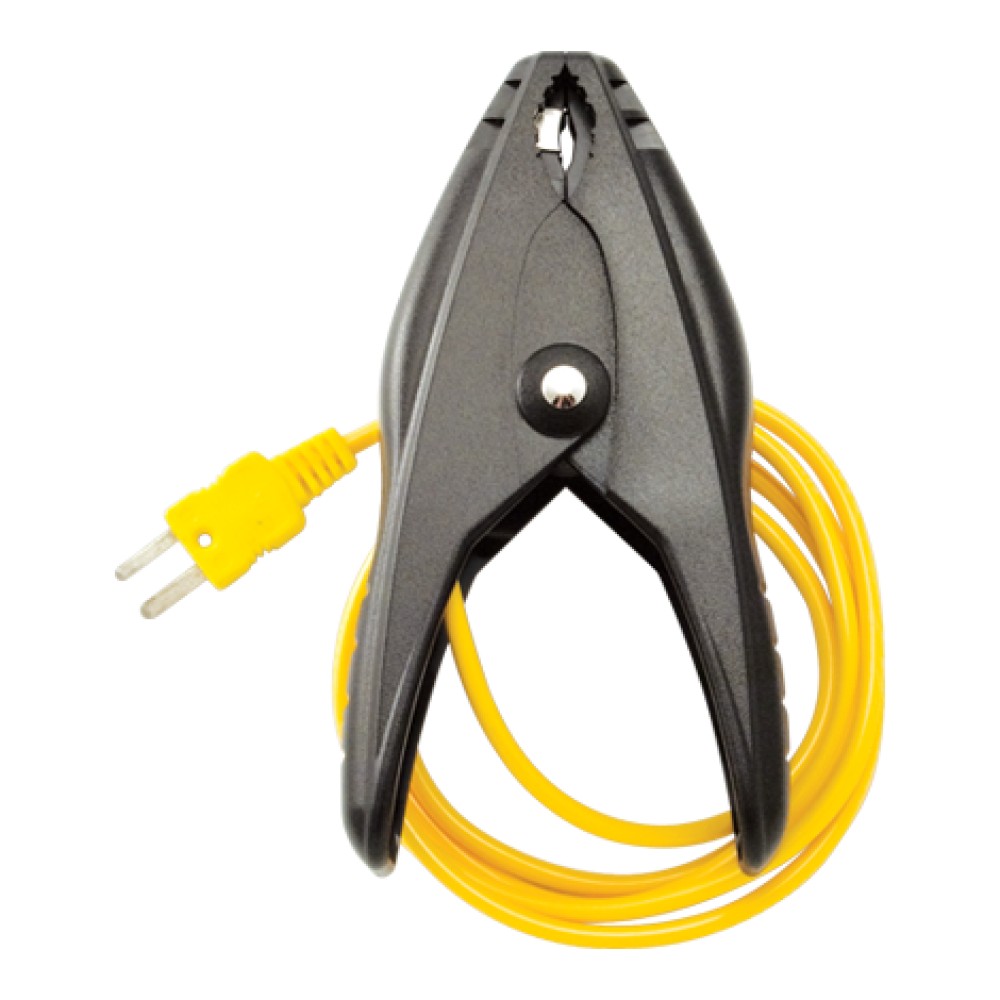

Fieldpiece Small Clamp Thermocouple 1/8 to 3/4
Key Features
- ATC1R jaw range: 1/8 to3/4 pipe diameter (outside diameter)
- Accuracy: +/- 4ºF (2°C) ; ±1°F (0.5°C) after field calibration, 32 to 176ºF (0 to 80°C)
- Temperature range: -50 to 257ºF (-46 to 125°C)
- Thermocouple conductors: Type-K nickel chromium/nickel aluminum.
- Probe insulation and clamp material: Calibration and atmosphere will affect maximum useful
- temperature in applications. The wire insulation and clamp material are designed to withstand a maximum continuous use at 257°F (125°C).
- Plug: Type-K thermocouple male mini plug.
- Typical stabilization time: less than 30 seconds.
£54.08 + VAT
Specification for: Fieldpiece ATC1R Small Clamp Thermocouple 1/8 to 3/4
| Country Of Origin | TW |
| Full EAN | 8726410021696 |
| Full UPC | 872641002169 |
| Model | ATC1R |
| Range | Temperature measurement |
| Tarrif Code | 9025900090 |
| Type | Accessories |
The ATC1R, Type-K, pipe clamp thermocouple is used to take temperatures of pipes or any other cylindrical surface within its 1/8 to 3/4 jaw range. Using a pipe clamp thermocouple greatly facilitates taking superheat or subcooling measurements. Use the ATC1R for most refrigeration units. The ATC1R can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple.
The sensor is virtually isolated from ambient conditions, allowing the thermocouple to read the true pipe temperature for as long as it is attached. The sensors large surface area and increased clamping force help the sensor reach the correct temperature within 30 seconds. Because the jaw is designed for HVAC/R, its clamping ability lets you measure temperatures of pipes that are fixed, at any angle, to walls or other surfaces.
