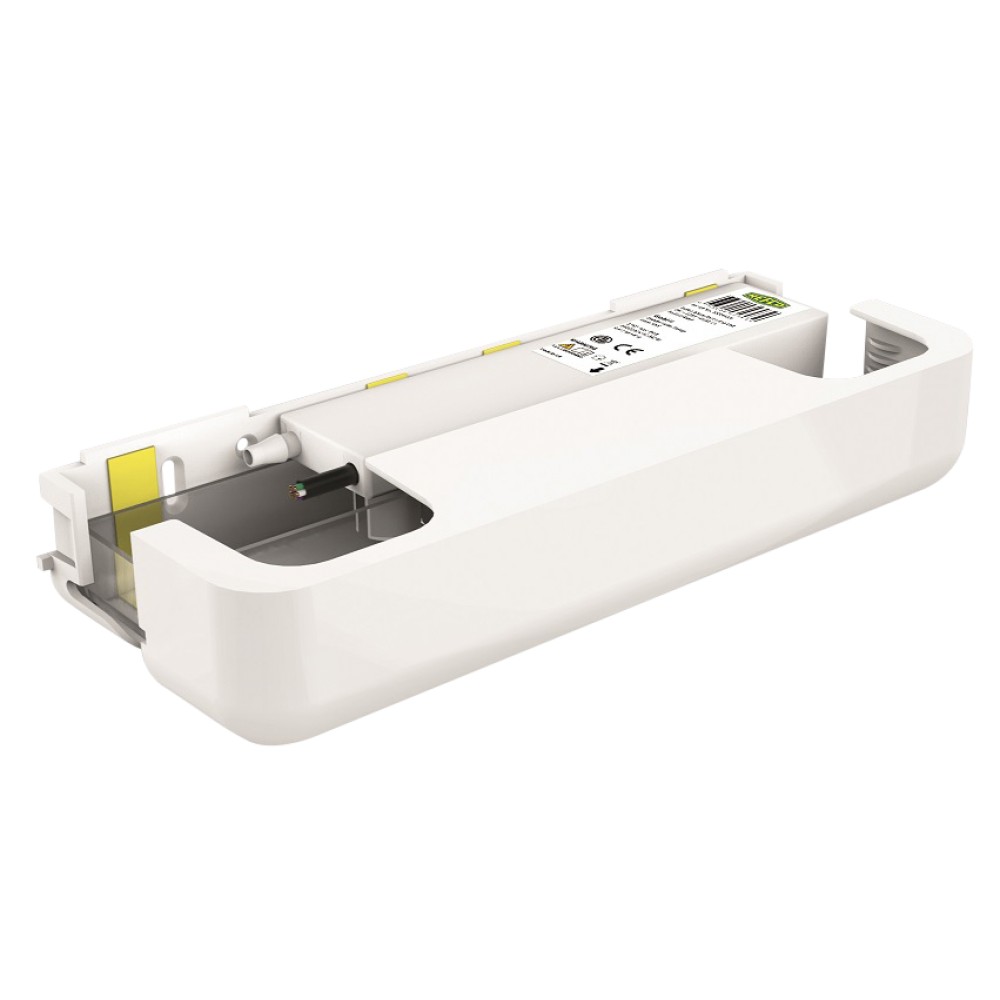

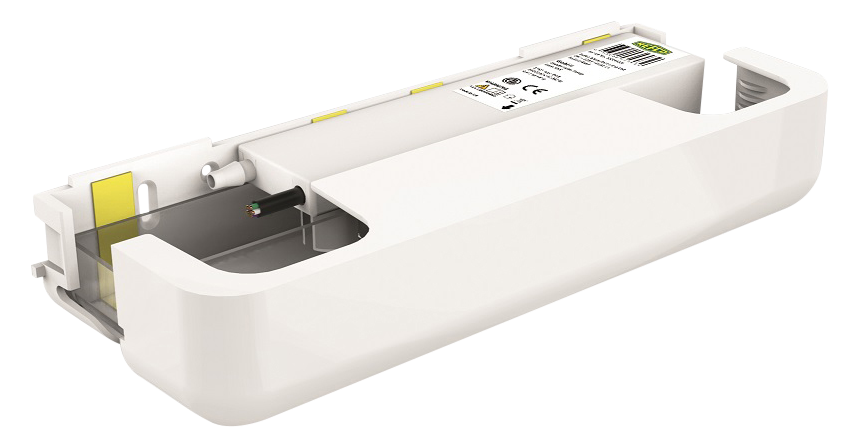

Refco GOBI II condensate pump
Ref: 256606

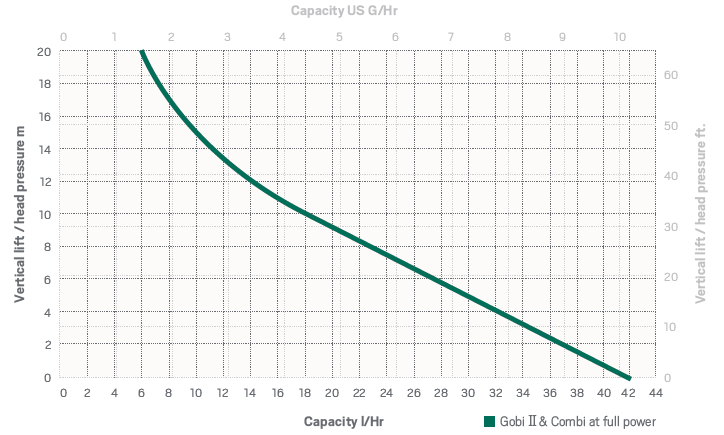

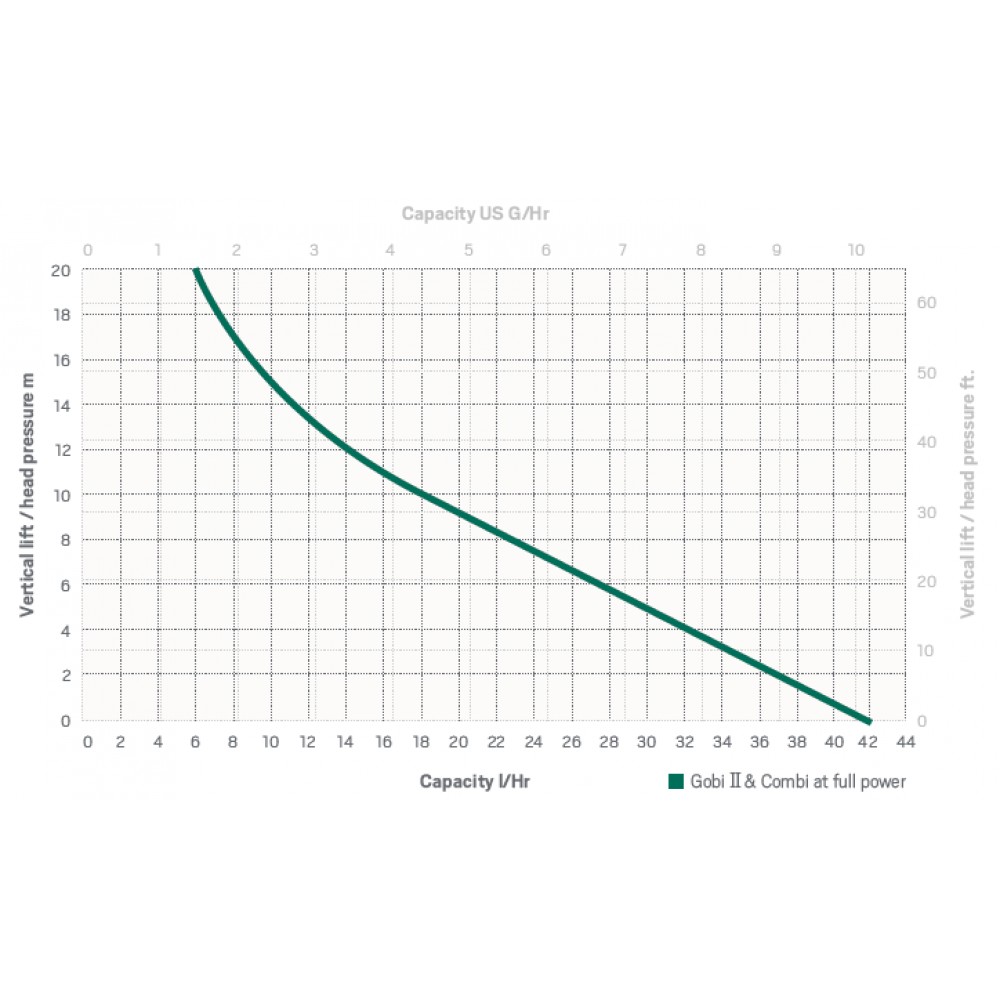

Universal condensate pump for direct mounting under the air conditioner, designed for systems from 6,000 BTU/h (1.75kW) up to 120,000 BTU/h (35kW). Powerful: up to 42 litres per hour, 3 metres suction and 20 metres delivery head.
Refco GOBI II condensate pump
- Flow : 42 L/h
- Head : 20 m
- Lift : 3 m
- Pump Type : Diaphragm
- Sound Level : 19 dBA
- Universal use due to wide range of applications
- Guarantee period only starts with commissioning (readable via USB)
- 42 litres pumping capacity per hour
- 20 metres delivery head
- 19 dB noise level
- No float problems thanks to digital sensor

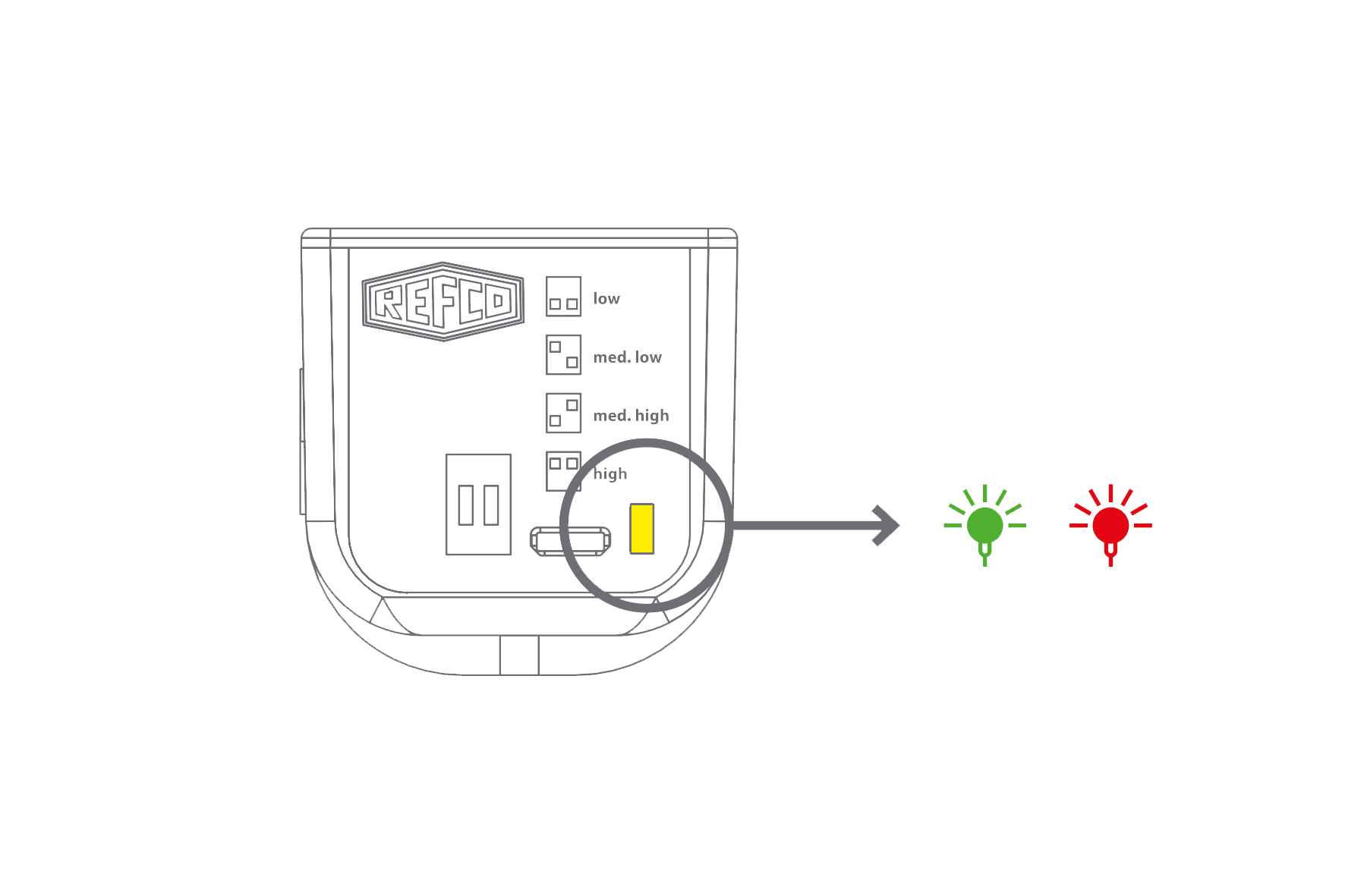

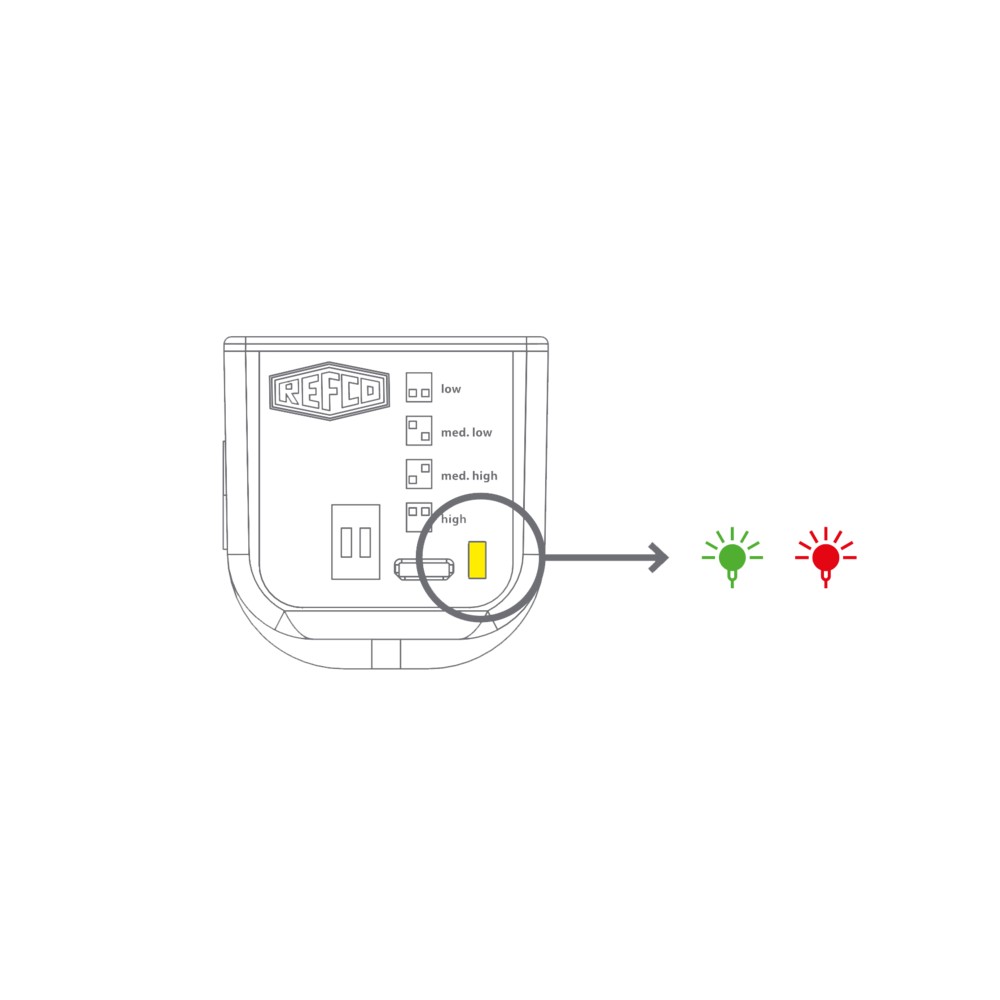

- Adjustable pumping capacity according to requirements
Quantity discounts available:
| Min Quantity | Price per Unit |
|---|---|
| 1 | £106.93 |
| 5 | £96.24 |
£106.93 + VAT
Ordering is only available to Trade Customers
Specification for: Refco GOBI II condensate pump
| Alarm Relay | Interchangeable NO or NC rated 250VAC 6.3A or 28VDC 6.3A |
| Cable Length | 1.5 m |
| Colour | whiteRAL |
| Country Of Origin | DE |
| Depth | 53 mm |
| Discharge Size | 6 mm |
| EAN | 7640154084735 |
| Flow | 42 L/h |
| Frequency | 50Hz_60Hz |
| Head | 20 m |
| Height | 53 mm |
| Ingress Protection | IP44 |
| Lift | 3 m |
| Max Flow Rate | 42 L/h |
| Max Lift | 20 m |
| Max Suction Height | 3 m |
| MPN | 3004145 |
| Noise Level | 19 dB(A) |
| Packaging | Blister |
| Power Consumption | 12 W |
| Protection Class | protection-class-1 |
| Pump Type | Diaphragm |
| Ro H S- Conformityll | RoHS-true |

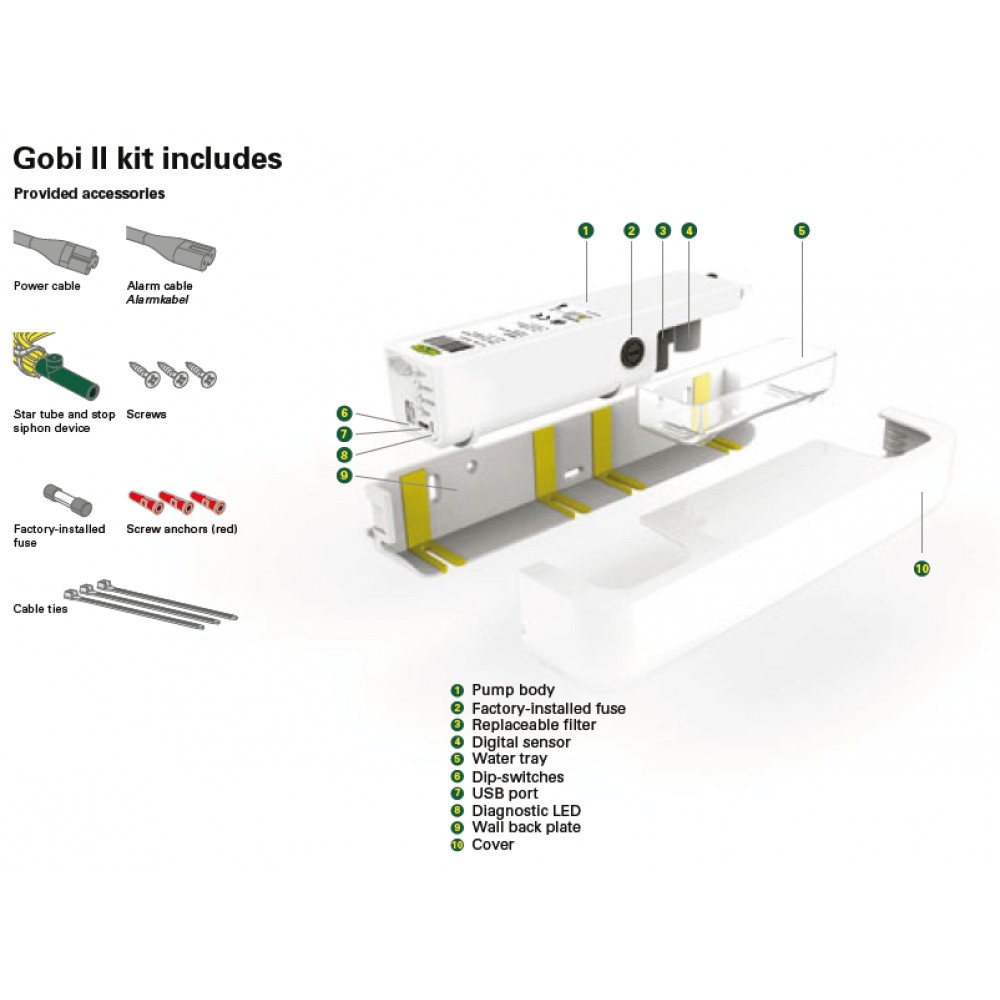

| Scope Of Supply Text | Power cableAlarm cable Star tube and anti-siphon device Screws (for mounting) Screw anchors Factory-installed alarm fuse Cable ties Instruction manual |
| Sensor | Digital |
| Sound Level | 19 dBA |
| Standards | EN 60335-1 EN 60335-2-41 UL778CSA C22.2 #68 |
| Storage Temperature Range | -20 - 50 °C |
| Temperature Range | 5 - 40 °C |
| Type | DiaphragmType |
| Voltage | 100_240VAC |
| Water Temperature Range | 5 - 40 °C |
| Weight | 1.1 Kg |
| Width | 286 mm |
Universal condensate pump for direct mounting under the air conditioner, designed for systems from 6,000 BTU/h (1.75kW) up to 120,000 BTU/h (35kW). Powerful: up to 42 litres per hour, 3 metres suction and 20 metres delivery head.
| Weight | 1.1 kg |
|---|---|
| Dimensions | 53 × 286 × 53 cm |
