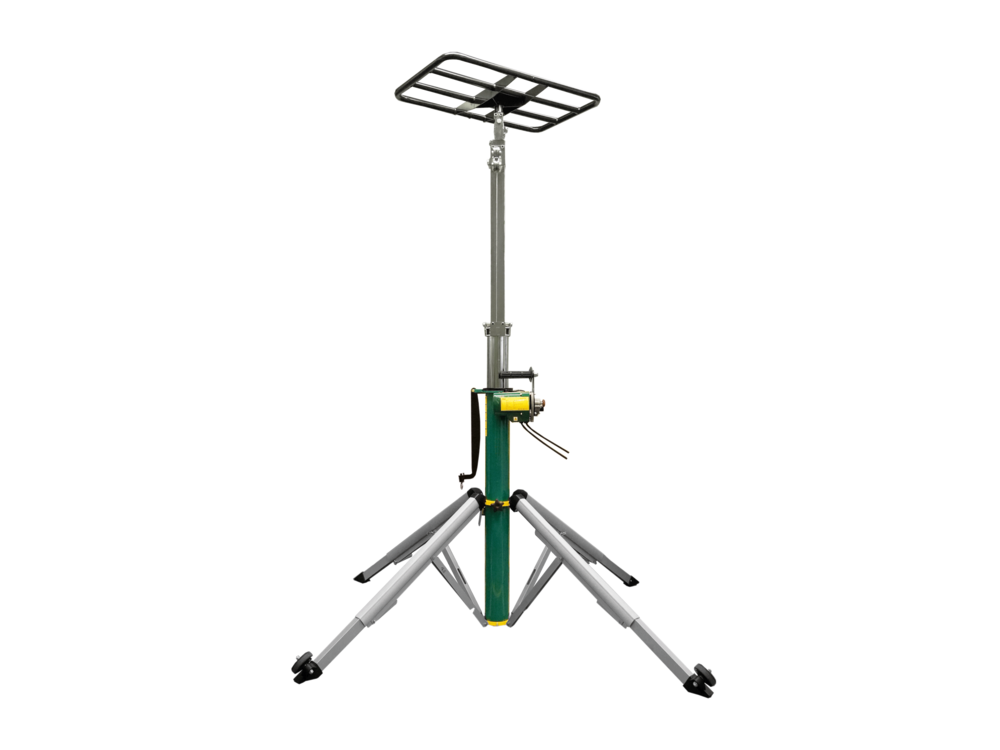

Refco LFT-5M Portable lift 240v 140 Kg 5m max lift
Ref: 258502
The portable lifter LFT-5M safely lifts loads of up to 90 kg to a height of up to 5 meters. For loads up to 140 kg, the maximum lifting height is 3 meters. The portable lifter LFT-5M weighs only 36 kg (without platform), thanks to its robust yet lightweight combination of galvanized steel and aluminum. Practical rollers and an ergonomic handle allow the lifter to be pulled like a cart, making on-site transportation even easier. The variable positioning of the feet ensures stable support during lifting operations. Additionally, the steel tube is equipped with internal steel cables for increased safety. A crank allows for manual operation during power outages, making the LFT-5M portable lifter the ideal companion for assembly work.
- Spare parts available
- Capacity: Up to 140 kg at 3 meters, 120 kg at 4 meters, and 90 kg at 5 meters
- Variable foot positioning: Ensures safe operation
- Robust construction: Made of steel and aluminum for lightweight and stability (only 36 kg without platform)
- Remote control 6 m
- Practical transport rollers and handle: Facilitates easy on-site transportation
- Operation: Continuous adjustment via remote control with a range of up to 6 meters, manual operation with crank as backup in case of power failure
- Internal steel cables: Ensures increased safety within the steel tubing
- Detachable sturdy platform with separate carrying bag
- Bracket for cable winding
Specification for: Refco LFT-5M Portable lift 240v 140 Kg 5m max lift
| Capacity 3 m | 140 kg 4 m: 120 kg 5 m: 90 kg |
| Colour | grey / green (RAL 6026) |
| Current | 4 A |
| Frequency | 50Hz/60Hz |
| Ingression Protection | IP43 |
| Insulation Class | °F |
| Material | Steel / Aluminium |
| Max. Discharge height | 505 cm |
| MPN | 4689022 |
| Operating Temperature Range | -5 °C - 45 °C |
| Platform Dimension | 775 x 460 x 50 mm |
| Platform Weight | 5 kg |
| RoHS Conformity | Yes |
| Standards | CEUKCARCMRoHSREACH |
| Storage Temperature Range | -5 °C - 45 °C |
| Voltage | 230V |
