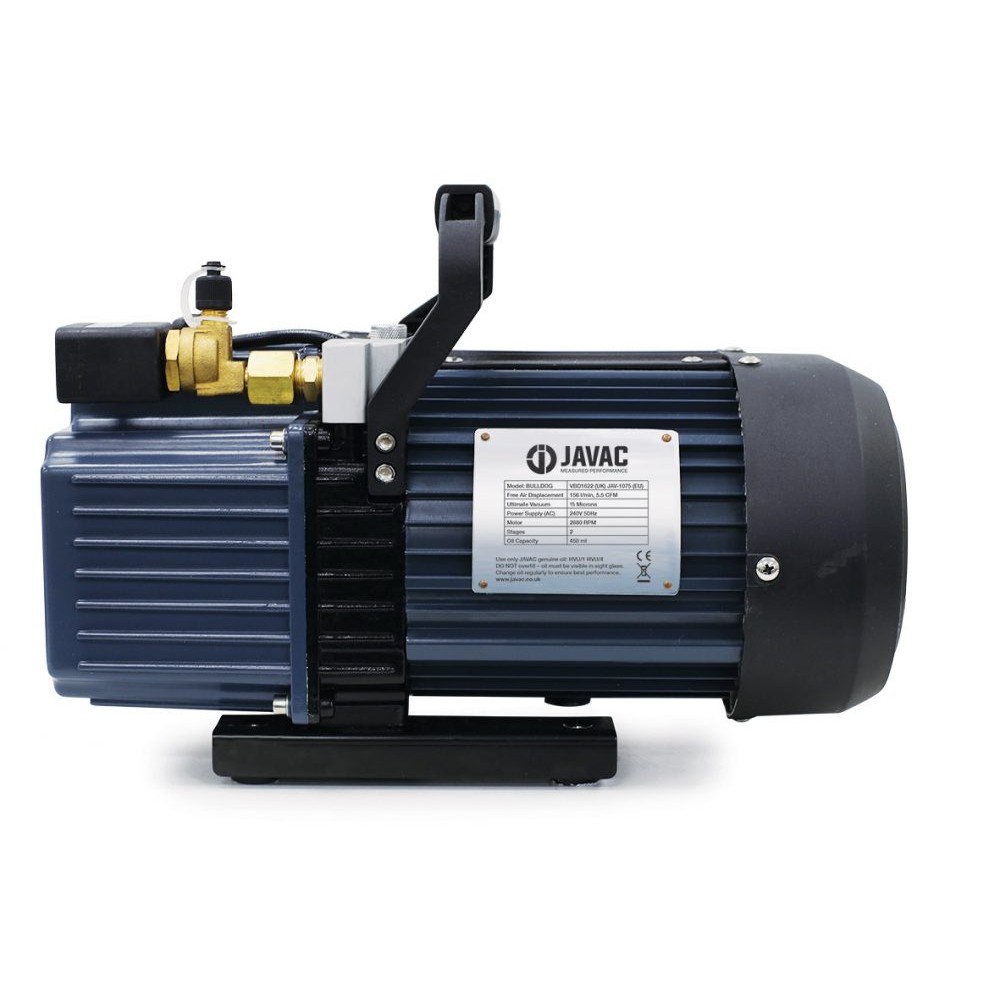

Javac VBD1622 Bulldog A2L Vacuum Pump
Ref: 242002
Reliable system evacuation for HVAC engineers, built for reliable on-site performance
Spark Proof design: Intergrated On/Off switch. 5 m hard wired cable to suit 115 V* or 230 V.
Dual voltage switch easily to 115 V* or 230 V.
Two stage oil sealed vacuum pump.
Isolation solenoid valve.
Dual oil mist filters to prevent oil mist
Javac VBD1622 Bulldog A2L Vacuum Pump
Key Features
- Free air displacement156 l/m (5.5 CFM)
- SuitabilityAll standard and A2L applications
- Stage15 microns
- Dual Voltage
- Motor size2880 rpm
- Power cordGlanded
- Oil capacity450 ml
- Intake fittings1/4, 5/16, 3/8 SAE
- Two stage oil sealed vacuum pump.
- Spark Proof design: Intergrated On/Off switch. 5 m hard wired cable to suit 115 V* or 230 V.
- Isolation solenoid valve.
- Dual voltage switch easily to 115 V* or 230 V.
- Dual oil mist filters to prevent oil mist
£416.83 + VAT
Ordering is only available to Trade Customers
Specification for: Javac VBD1622 Bulldog A2L Vacuum Pump
| A2L | Yes |
| A3 | Yes |
| Depth | 212 mm |
| Dimensions | 338 x 212 x 238 mm |
| Free air displacement | 156 l/m (5.5 CFM) |
| Height | 238 mm |
| Intake fittings | 1/4" 5/16" 3/8" SAE |
| Motor size | 2880 rpm |
| MPN | VBD1622 |
| Oil capacity | 450 ml |
| Power cord | Glanded |
| Power supply | 115V* or 230 V |
| Range | Refrigeration |
| Stage | 15 microns |
| Suitability | All standard and A2L/A3 applications |
| Type | Vacuum Pumps |
| VBD1622 | (UK) |
| Voltage | 110/230v |
| Weight | 12.5 kg |
| Width | 338 mm |
Spark Proof design: Intergrated On/Off switch. 5 m hard wired cable to suit 115 V* or 230 V.
Dual voltage switch easily to 115 V* or 230 V.
Two stage oil sealed vacuum pump.
Isolation solenoid valve.
Dual oil mist filters to prevent oil mist
| Weight | 12.5 kg |
|---|---|
| A2L | |
| A3 | |
| Brand | |
| Product Category | |
| Voltage |
