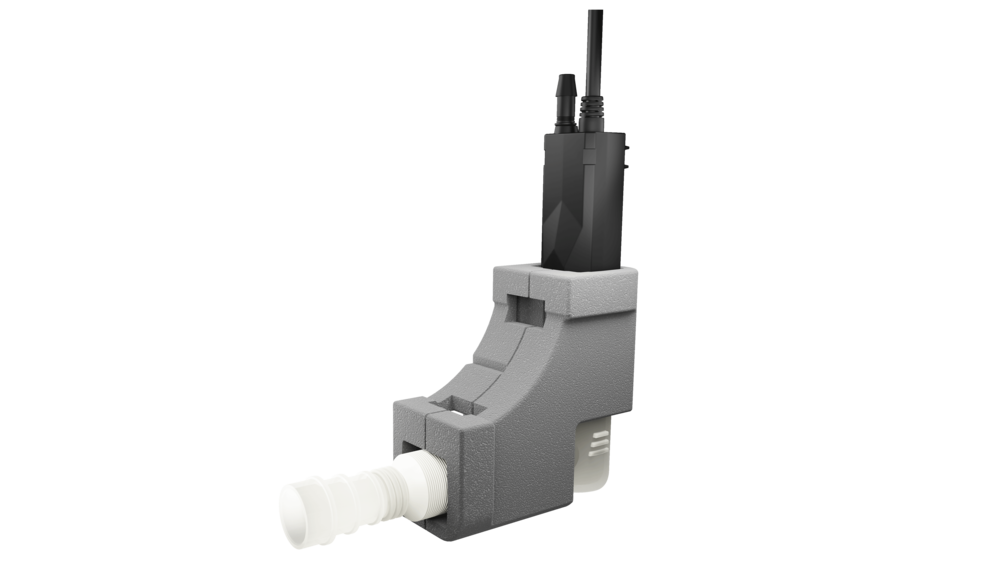

Refco Vamp-C Condensate Pump
The flexible replacement corner condensate pump – Plug in, connect, done.
Simple connection no rewiring required:
An optional adapter enables fast electrical integration the existing cable can continue to be used.
The existing corner duct and all plastic components can remain in place.
Only the pump is replaced and connected to the condensate tray using the included corner hose.
- Sustainable: Housing made from plant-based material
- Pump Capacity: Handles up to 22 liters per hour
- Discharge height: Capable of up to 15 meters
- Optical level sensing technology: Reliable operation ensured by proven optical sensor
- Integrated switching power supply : Operates universally with input voltages ranging from 100-240 VAC
- Compatible with multiple duct systems
- Expandable corner hose : Also serves as a water reservoir (with filter and adapter)
- Whisper-quiet operation : Advanced diaphragm pump technology and effective vibration damping with a sound level below 18 dB(A)
- Tool-free installation

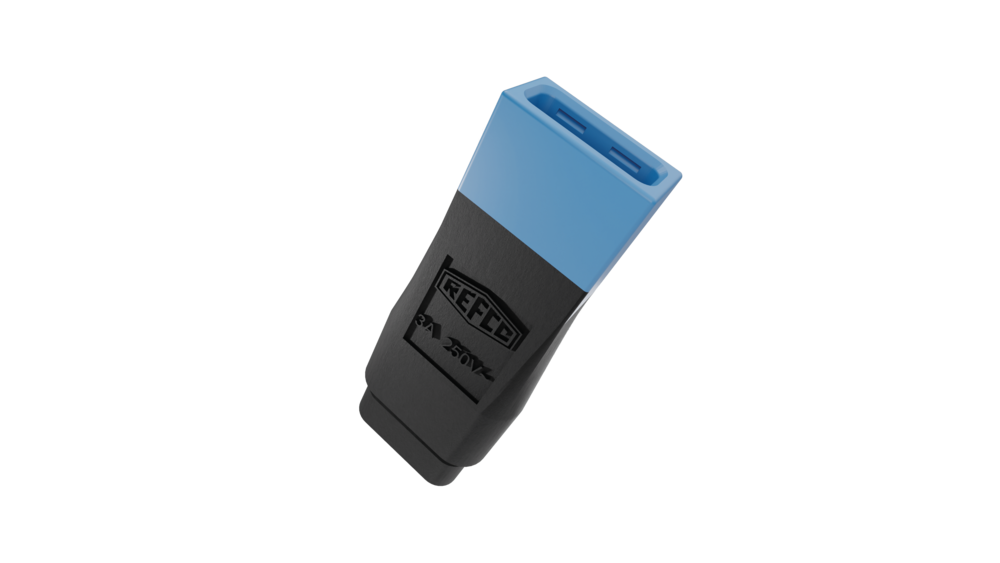

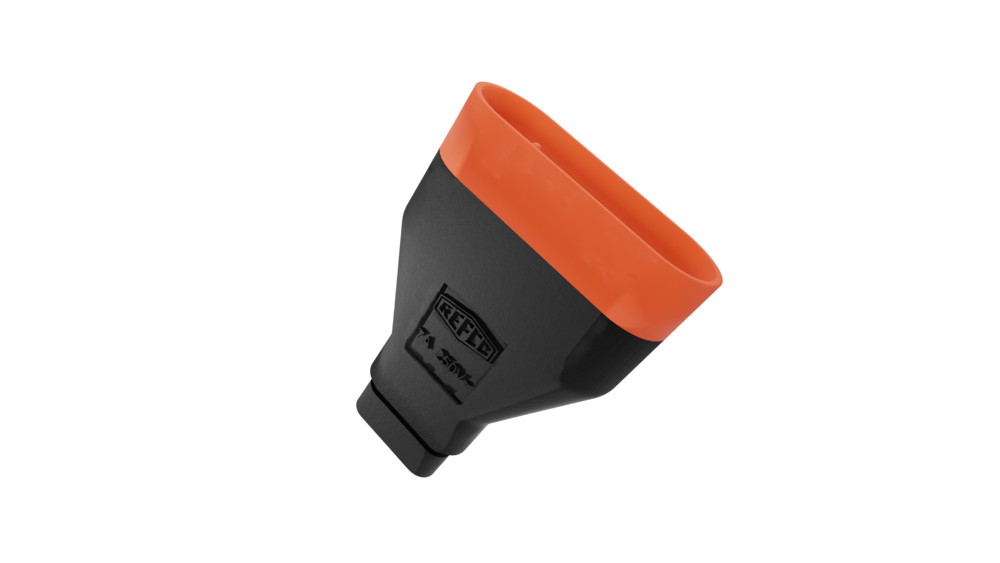

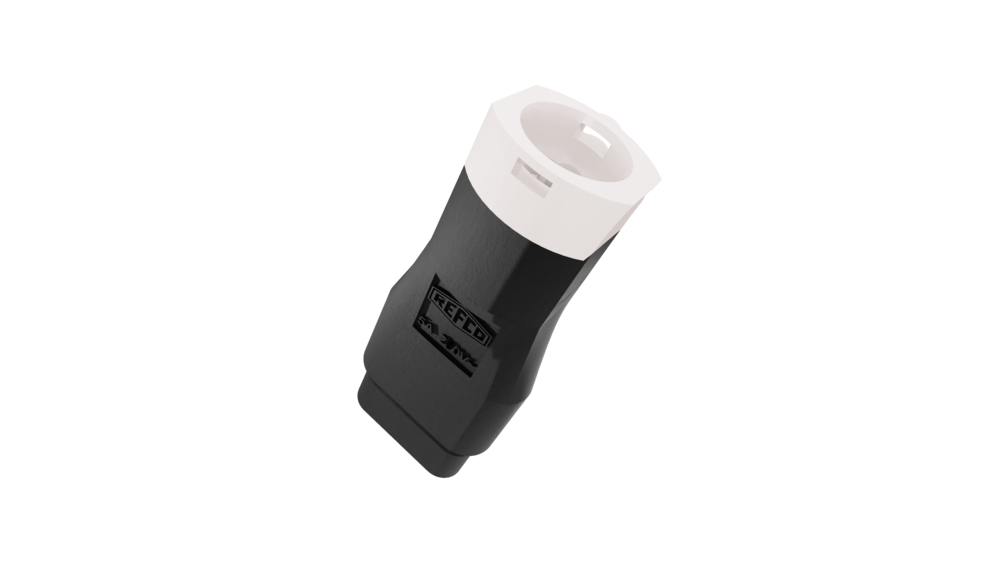

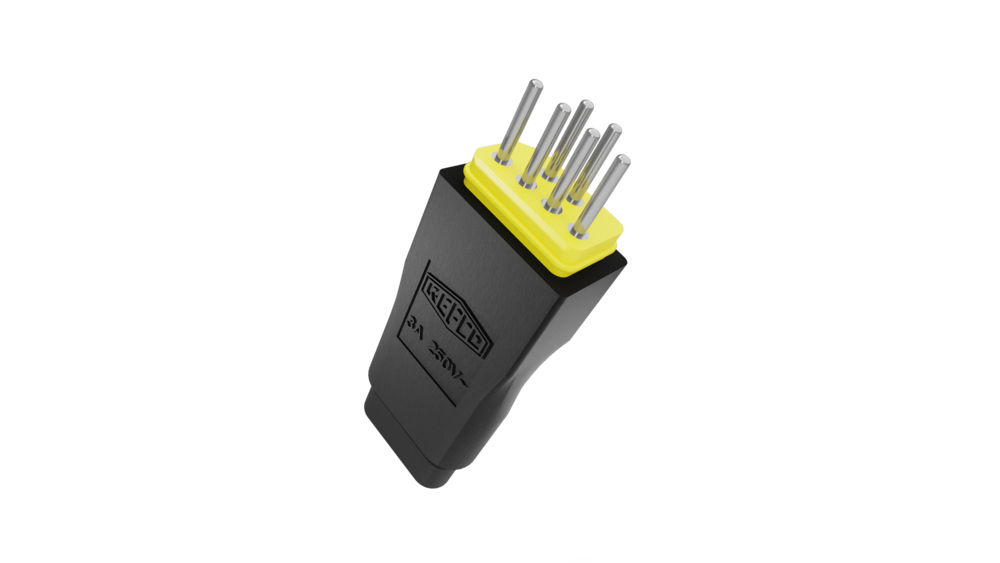

- Optional adapter : For electrical connection without rewiring existing connections can be reused
- Manufactured in Switzerland
- Interface shell : Made from non-flammable, vibration-damping material; can be trimmed as needed adapts to any installation scenario
£83.60 + VAT
Specification for: Refco Vamp-C Condensate Pump
| Alarm Relay | Normally-closed failsafe 250 VAC 5 A or 30 VDC 5 A |
| Colour | black |
| Energy Consumption | 6 W |
| Frequency | 50Hz/60Hz |
| Ingression Protection | IP44 |
| Material | Polyamide | FR-4 |
| Max. Discharge height | 15 m |
| Max. Flow Rate | 22 l/h |
| Max. Horizontal Run | 75 m at 0 m head and 0 m suction |
| MPN | 3004255 |
| Noise Level | 18 dB(A) |
| Operating Temperature Range | 3 °C 40 °C |
| Packaging | Cardboard box |
| Power Consumption Idle | 6 W |
| Protection Class | II |
| RoHS Conformity | Yes |

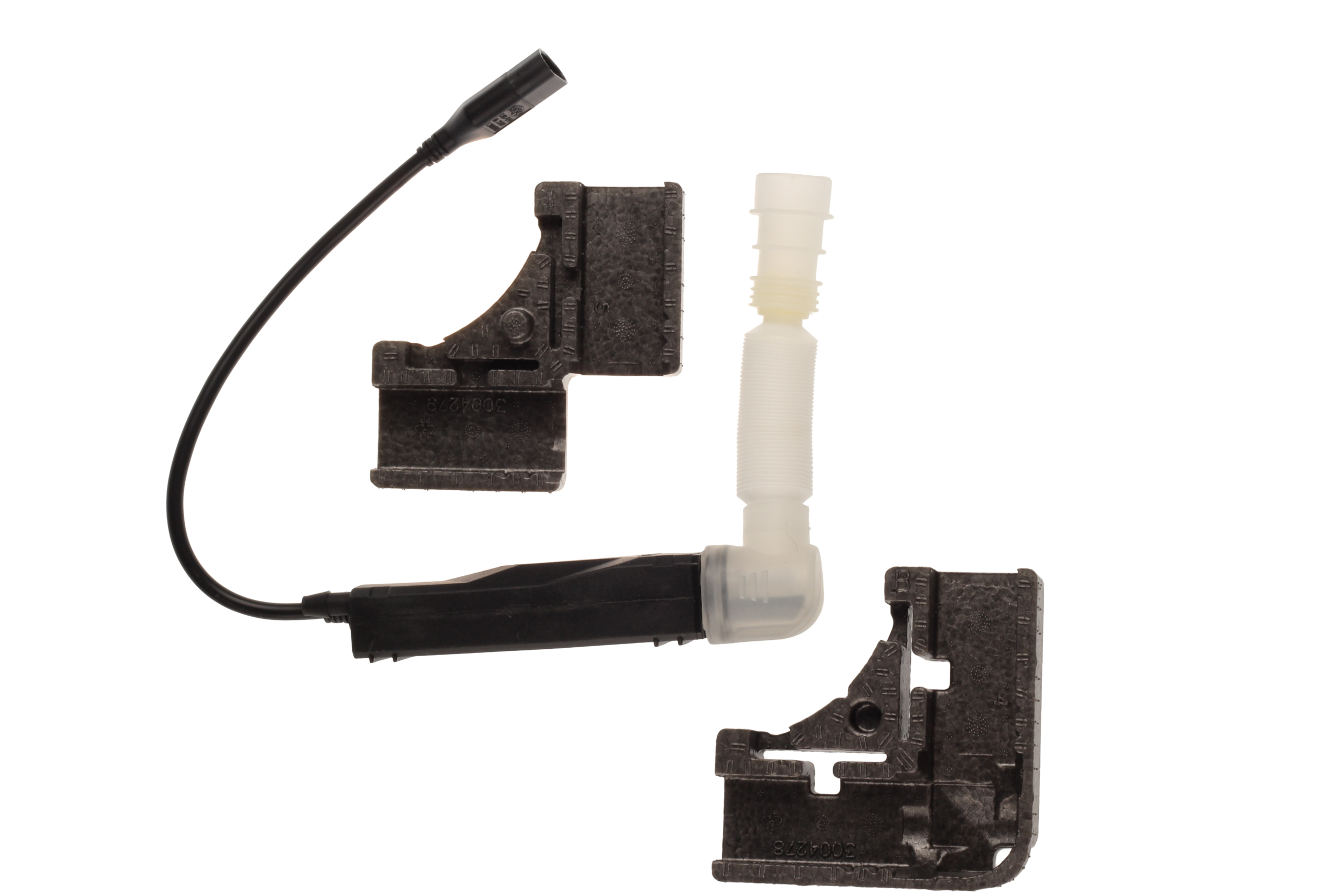

| Scope of Supply | PumpCorner hose with filterVibrastripeInterface shell (front & back)Installation cableQuick guide |
| Standards | IEC 60335-1 IEC 60335-2-41 |
| Storage Temperature Range | -20 °C 70 °C |
| Title | VAMP-C |
| Tube Diameter | 6 mm |
| Type | Diaphragm type |
| Voltage | 100 - 240 VAC |
| Water Temperature Range | 3 °C 40 °C |
The flexible replacement corner condensate pump
Plug in, connect, done.

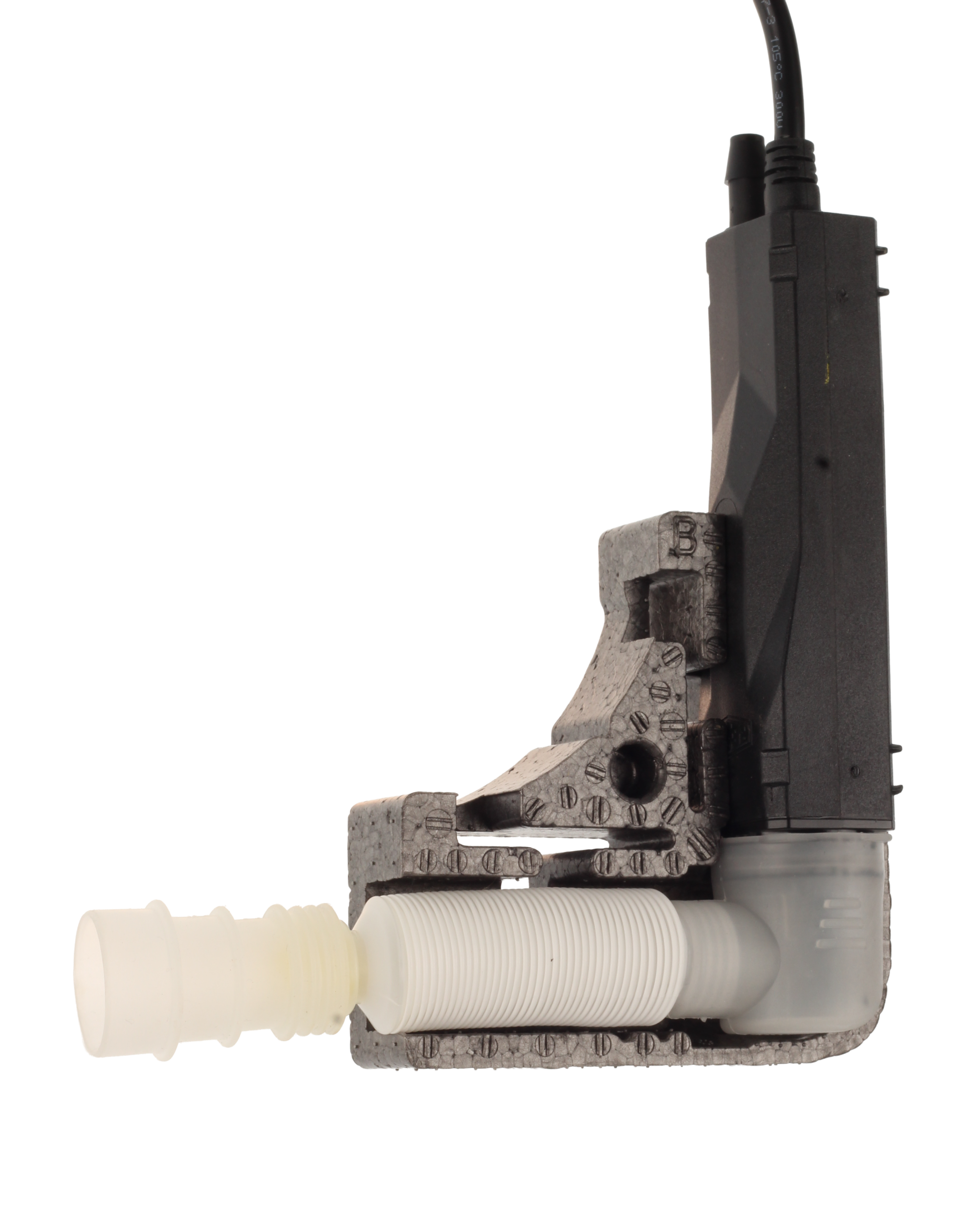

The VAMP-C is the compact solution for replacing corner condensate pumps. Its interface shell fits directly into the corner duct of existing setups and can be trimmed if needed for seamless integration. It is made of vibration-damping, non-flammable material. A side cutout provides visibility of the water level sensor once the corner front cover is removed.
Simple connection no rewiring required:
An optional adapter enables fast electrical integration the existing cable can continue to be used.
The existing corner duct and all plastic components can remain in place.
Only the pump is replaced and connected to the condensate tray using the included corner hose.
Quiet, precise, powerful:
With a noise level below 18 dB(A), the VAMP-C operates whisper-quietly ideal for use in noise-sensitive environments.
The optical sensor ensures precise level measurement for reliable, low-maintenance operation.
The high-performance diaphragm pump delivers up to 22 litres per hour and a pumping height of 15 metres.
The VAMP-C is suitable for air conditioning units with a cooling capacity of up to 18.5 kW (63,000 BTU/h).
Interface shell: Made from non-flammable, vibration-damping material; can be trimmed as needed adapts to any installation scenario
Optional adapter: For electrical connection without rewiring existing connections can be reused
Compatible with multiple duct systems
Tool-free installation
Expandable corner hose: Also serves as a water reservoir (with filter and adapter)
Whisper-quiet operation: Advanced diaphragm pump technology and effective vibration damping with a sound level below 18 dB(A)
Pump Capacity: Handles up to 22 liters per hour
Discharge height: Capable of up to 15 meters
Optical level sensing technology: Reliable operation ensured by proven optical sensor
Integrated switching power supply: Operates universally with input voltages ranging from 100-240 VAC
Sustainable: Housing made from plant-based material
Manufactured in Switzerland
