Refco Vamp-CDK Condensate Pump
The compact corner condensate pump with complete duct set
VAMP-CDK is REFCOs first condensate pump supplied with a complete duct system for a smart and space-saving installation in the corner of the duct. The refined design enables a stable, concealed installation close to the air conditioning unit for a clean look and whisper-quiet operation.
All-in-one for new installations:

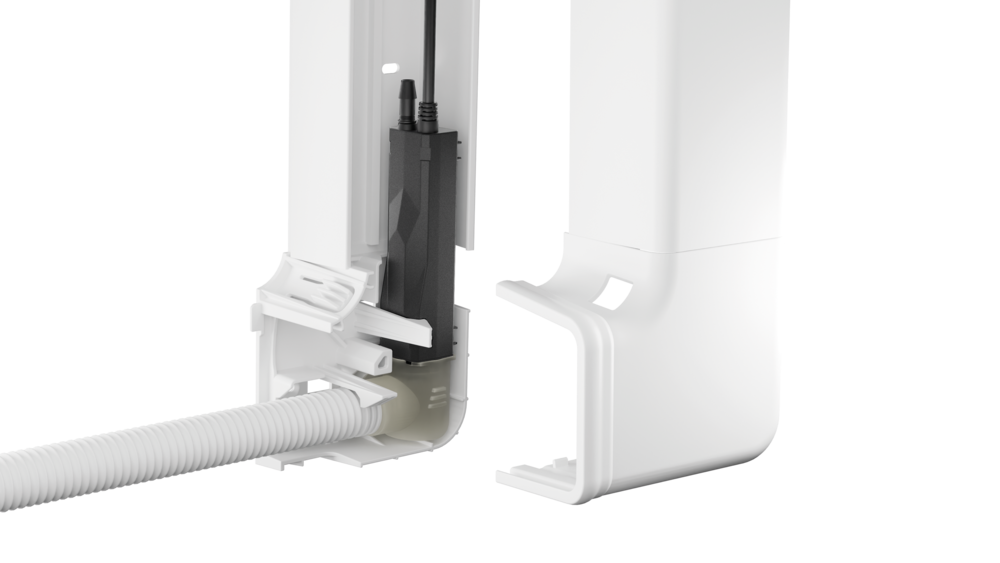

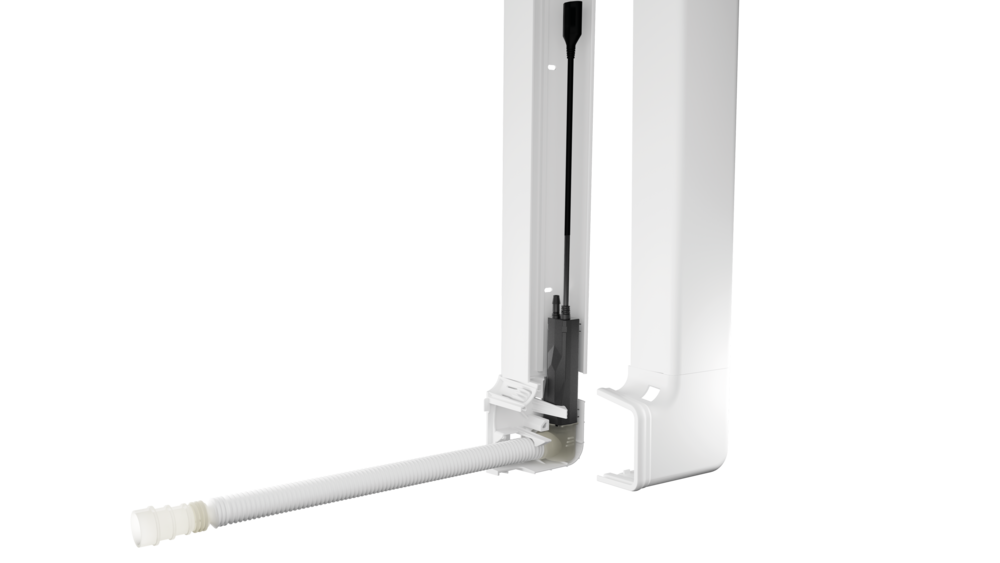

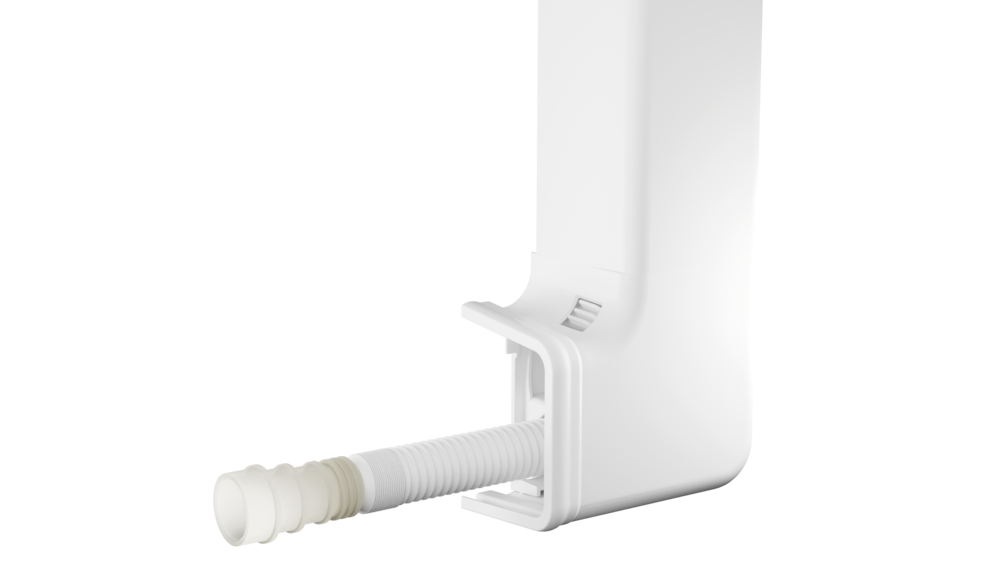

The compact duct set of VAMP-CDK consisting of the condensate pump, duct corner, duct and collar enables a stable, slim corner installation with minimal space requirements. Thanks to the specially shaped duct corner, the pump can be installed directly at the air conditioning unit for a compact, discreet solution that meets the highest standards of technology and design.
Replacement Installation:

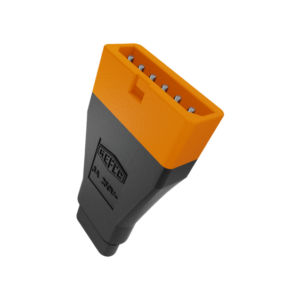

Adaptors are available to connect to existing wiring for most popular manufacturers
- Compact all-in-one duct set for corner installation close to the unit including duct corner, duct and collar
- Whisper-quiet operation: below 18 dB(A) thanks to diaphragm technology and vibration damping
- Pump capacity: up to 22 litres per hour
- Discharge height: up to 15 metres
- Optical level sensing: precise and resistant to interference
- universal operation with 100240?VAC
- Manufactured in Switzerland
£95.48 + VAT
Quiet, precise, powerful
With a sound level below 18 dB(A), VAMP-CDK operates almost silently ideal for use in sensitive areas.
The optical sensor ensures accurate level measurement and low-maintenance operation. The powerful diaphragm pump delivers up to 22 litres per hour and achieves a discharge head of up to 15 metres suitable for air conditioning units up to 18.5 kW (63,000 BTU/h) cooling capacity.
* Compatible with duct systems such as CANALSPLIT® (ARTIPLASTIC MACOS S.R.L.) or ArticaDuct (Castel® Engineering BV).
CANALSPLIT® and Castel® are registered trademarks of their respective owners. ArticaDuct is an unregistered product designation. Mention is for reference only and does not imply any affiliation or endorsement.,
| Brand | |
|---|---|
| Voltage |
Specification for: Refco Vamp-CDK Condensate Pump
| Alarm Relay | Normally-closed failsafe 250 VAC 5 A or 30 VDC 5 A |
| Colour | black |
| Energy Consumption | 6 W |
| Frequency | 50Hz/60Hz |
| Ingression Protection | IP44 |
| Material | Polyamide | FR-4 |
| Max. Discharge height | 15 m |
| Max. Flow Rate | 22 l/h |
| Max. Horizontal Run | 75 m at 0 m head and 0 m suction |
| MPN | 3004259 |
| Noise Level | 18 dB(A) |
| Operating Temperature Range | 3 °C 40 °C |

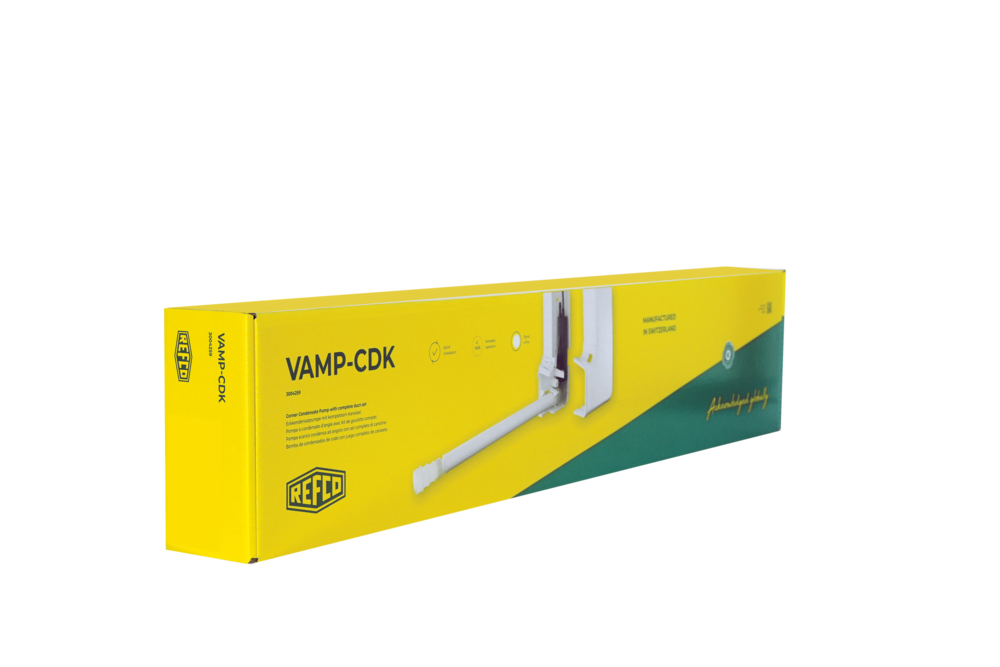

| Packaging | Cardboard box |
| Power Consumption Idle | 6 W |
| Protection Class | II |
| RoHS Conformity | Yes |
| Scope of Supply | PumpCorner hose with filterCorner SealKit Bag including Vibrastripe and FoamAnti-siphon valveInstallation cableCorner (front & back)Duct (front & back)CollarQuick guide |
| Standards | IEC 60335-1 IEC 60335-2-41 |
| Storage Temperature Range | -20 °C 70 °C |
| Tube Diameter | 6 mm |
| Type | Diaphragm type |
| Voltage | 100 - 240 VAC |
| Water Temperature Range | 3 °C 40 °C |
