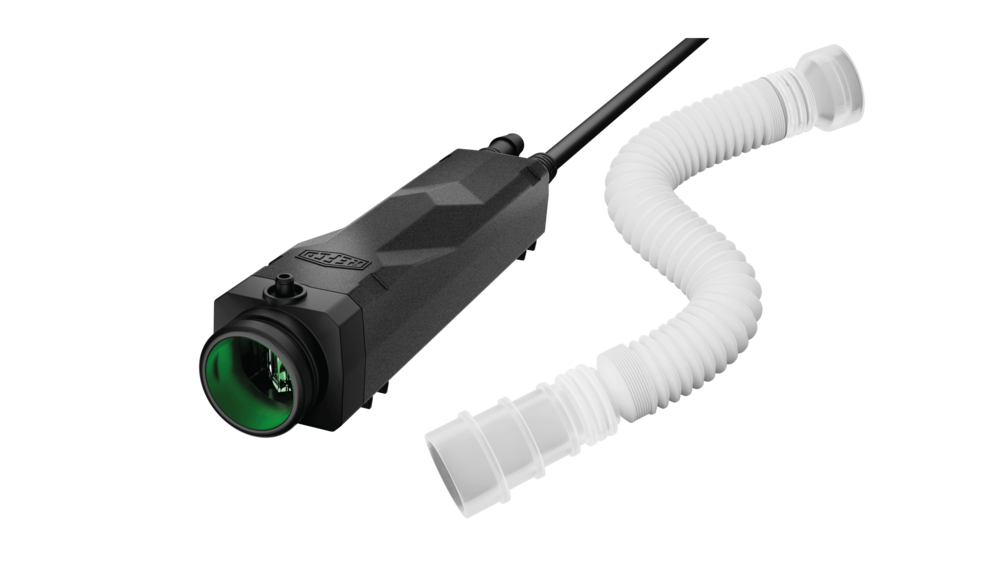

Vamp-F Condensate Pump
The VAMP-F features an integrated reservoir and an optical level sensor, making it the smallest model on the market. The adapter plug enables seamless integration into existing installations, making it an ideal replacement for other condensate pumps.
- Tool-Free Installation: The posable hose serves as a reservoir replacement (with filter and adapter) for direct connection to the condensate tray
- Sustainable: Housing made from plant-based material
- Spare parts and accessories available
- Manufactured in Switzerland
- Pump Capacity: Handles up to 22 liters per hour
- Discharge height: Capable of up to 15 meters
- Integrated switching power supply : Operates universally with input voltages ranging from 100-240 VAC
- Optical level sensing technology: Reliable operation ensured by proven optical sensor

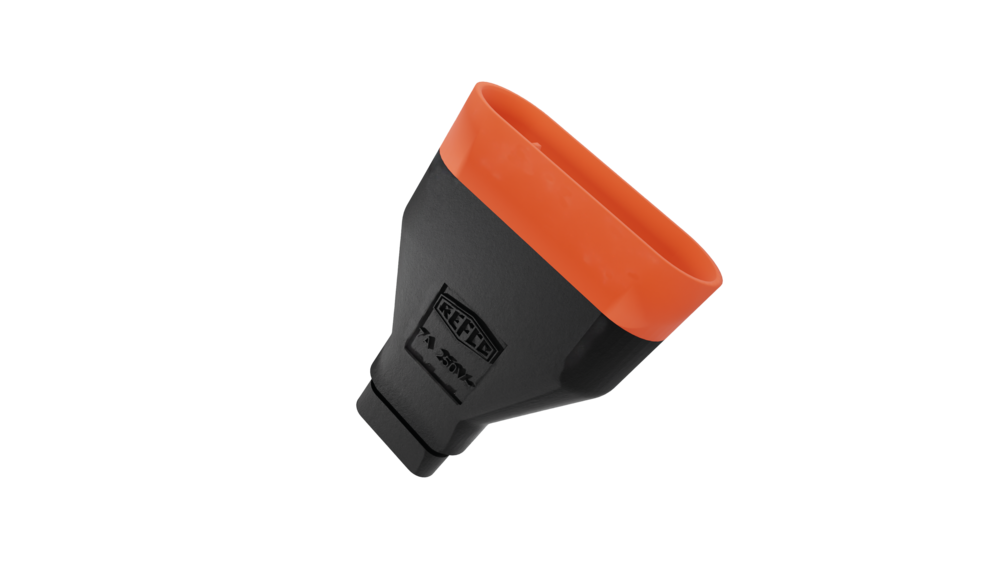

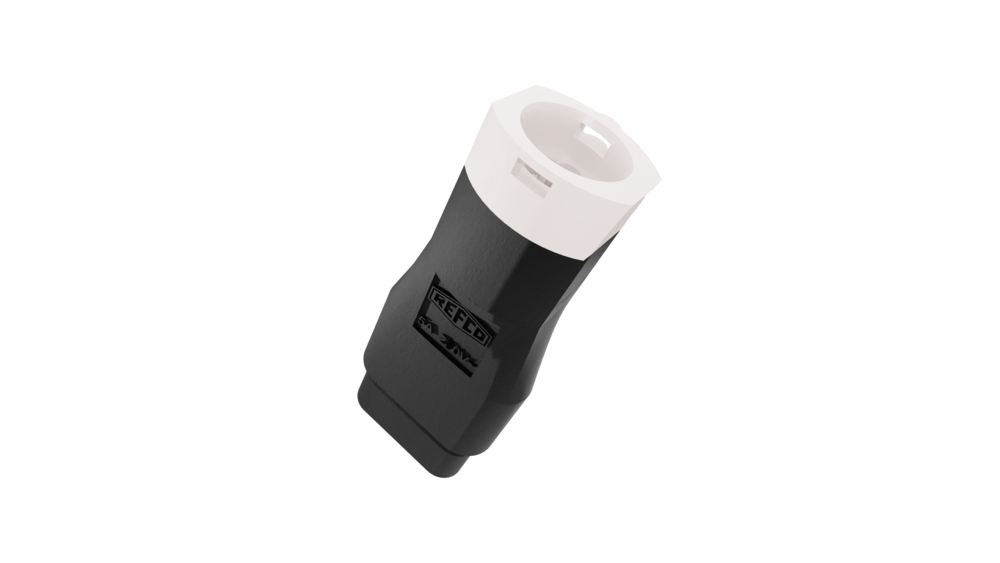

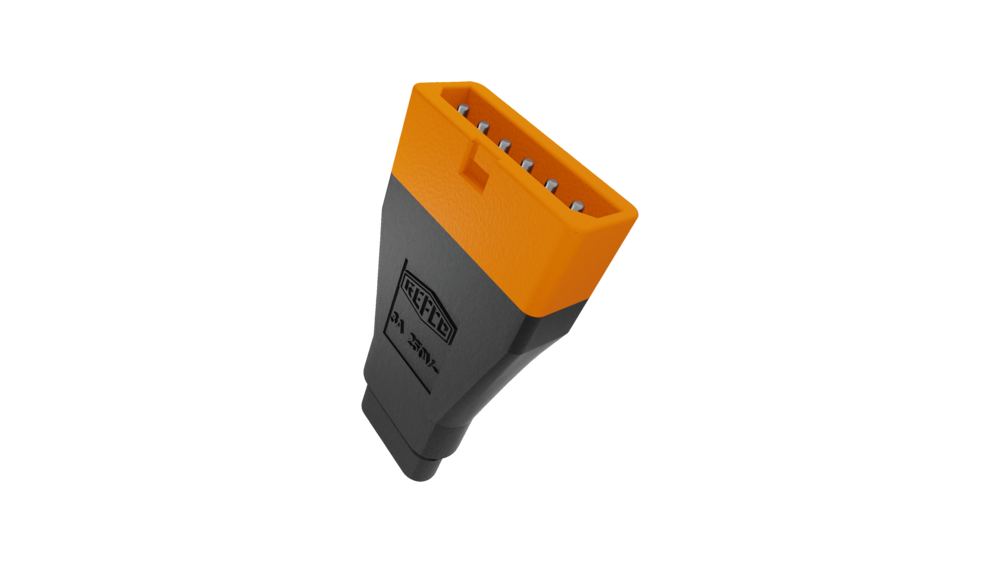

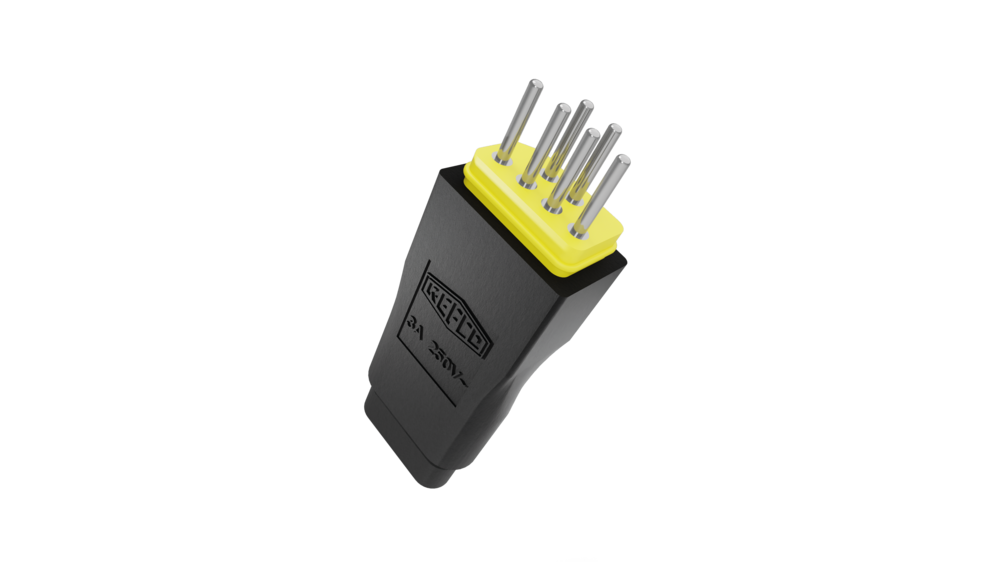

- Easy retrofitting: Adapter plug for existing installations
- Minimal space requirement: Standing at just 26 mm tall, it fits in even the tightest spaces
- Versatile applications: Suitable for wall-mounted units, ceiling units, and floor units
- Quiet operation: Thanks to advanced diaphragm pump technology and effective vibration dampening, the pump operates at less than 18 dB(A)
£76.34 + VAT
Specification for: Vamp-F Condensate Pump
| Alarm Relay | Normally-closed failsafe 250 VAC 5 A or 30 VDC 5 A |
| Energy Consumption | 6 W |
| Frequency | 50Hz/60Hz |
| Ingression Protection | IP44 |
| Material | Polyamide |
| Max. Discharge height | 15 m |
| Max. Flow Rate | 22 l/h |
| Max. Horizontal Run | 75 m at 0 m head and 0 m suction |
| MPN | 3004238 |
| Noise Level | 18 dB(A) |
| Operating Temperature Range | 3 °C 40 °C |

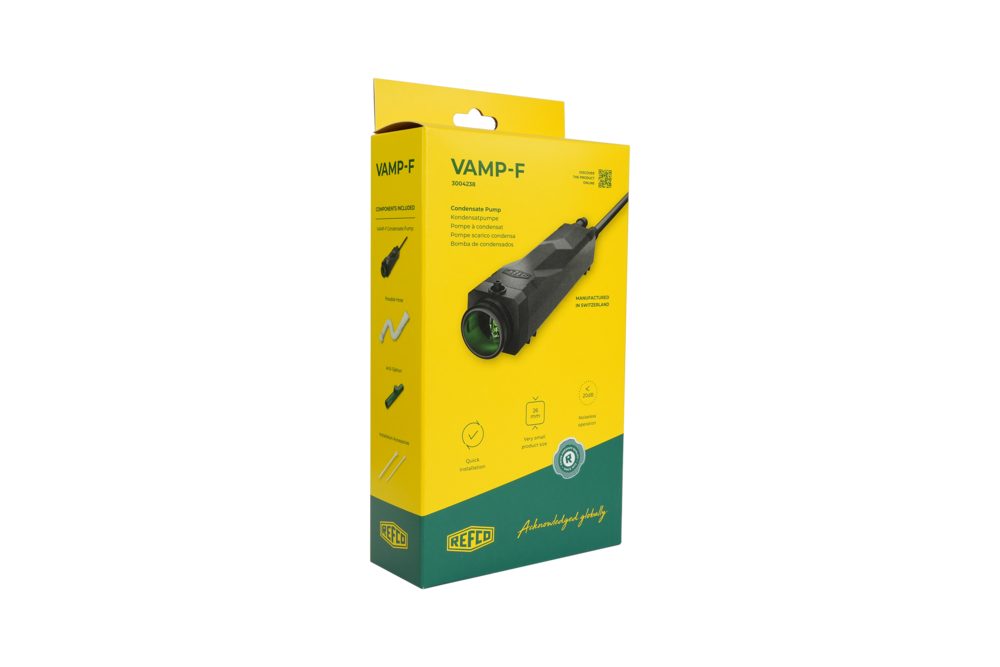

| Packaging | Cardboard box |
| Power Consumption Idle | 0.6 W |
| Protection Class | II |
| RoHS Conformity | Yes |
| Scope of Supply | Pump. Posable hose with filter. Installation cable. Anti-siphon valve. Vent tube. Cable ties. Quick guide. |
| Standards | IEC 60335-1 IEC 60335-2-41UL 778CSA C22.2 #108 |
| Storage Temperature Range | -20 °C 70 °C |
| Title | VAMP-F |
| Tube Diameter | 6 mm |
| Type | Diaphragm type |
| Voltage | 100 - 240 VAC |
| Water Temperature Range | 3 °C 40 °C |
Quick and easy to install, highly versatile, exceptionally quiet, and the smallest of its kind on the market this is the new condensate pump from the VAMP series. It combines innovative technology with practical benefits. Proven and interference-resistant optical sensor technology is paired with the reliable and silent operation of a diaphragm pump. In the development process, we focused on using as few components as possible to make installation and handling easy and fast for the user. The VAMP-F features an integrated reservoir and an optical level sensor, making it the smallest model on the market. The adapter plug enables seamless integration into existing installations, making it an ideal replacement for other condensate pumps.
Minimal space requirement: Standing at just 26 mm tall, it fits in even the tightest spaces
Quiet operation: Thanks to advanced diaphragm pump technology and effective vibration dampening, the pump operates at less than 18 dB(A)
Tool-Free Installation: The posable hose serves as a reservoir replacement (with filter and adapter) for direct connection to the condensate tray
Versatile applications: Suitable for wall-mounted units, ceiling units, and floor units
Pump Capacity: Handles up to 22 liters per hour
Discharge height: Capable of up to 15 meters
Integrated switching power supply: Operates universally with input voltages ranging from 100-240 VAC
Optical level sensing technology: Reliable operation ensured by proven optical sensor
Easy retrofitting: Adapter plug for existing installations
Spare parts and accessories available
Sustainable: Housing made from plant-based material
Manufactured in Switzerland
